TINA/Spice/TPS53513: mesurement of DC/DC's efficiency on TINA-TI

Kazuki Kuramochi

Genius 10505 points

Part Number: TPS53513
Other Parts Discussed in Thread: TINA-TI, ,

Tool/software: TINA-TI or Spice Models

Hi All,

Can anybody tell me how to measure efficiency on TINA-TI

I need to measure TPS53513's efficiency vs Output Current onTINA-TI, but I couldn't do it.

Because, It simulation's IN/OUT waveform is very noisey.So I couldn't measure it.

Thanks,

Kazuki Kuramochi

over 8 years ago

0 JohnTucker over 8 years ago

TI__Guru**** 191445 points

generally you cannot use TINA or pspice models to estimate efficiency. The models do not accurately model the input current. Your best option is to use Webench for efficiency estimates.

0 Kazuki Kuramochi over 8 years ago in reply to JohnTucker

TI__Genius 10505 points

Hi John,

Thank you for replying.

I think that WEBENCH's efficiency simulation cannot be changed schematic and parameter.So I need efficiency mesurement method on TINA-TI.

If you know other efficiency simulation method of changeable schematic and parameter, Could you inform me of its method?

Thanks,

Kazuki Kuramochi

0 JohnTucker over 8 years ago in reply to Kazuki Kuramochi

TI__Guru**** 191445 points

You should be able to change some of the parameters and components in Webench. What exactly are you trying to change?

0 Kazuki Kuramochi over 8 years ago in reply to JohnTucker

TI__Genius 10505 points

Yes, I know that I had be able to change some of the parameters and shcematic. But its changes cannot apply to Charts of efficiency , it's only applyed to ELECTRICAL SIMULATIONS. I need to apply the changes to Charts of Efficiency.

Kazuki Kuramochi

0 JohnTucker over 8 years ago in reply to Kazuki Kuramochi

TI__Guru**** 191445 points

I think th e efficiency does change. Can you post an example that shows your issue?

0 Kazuki Kuramochi over 8 years ago in reply to JohnTucker

TI__Genius 10505 points

I'm sorry for the delay in my reply.

Specifically, WEBENCH circuit differ from TPS53513EVM-587's circuit. So I changed to the same circuit as EVM in WEBENCH.
At that time, I don't know how to see Charts of efficiency.

0 JohnTucker over 8 years ago in reply to Kazuki Kuramochi

TI__Guru**** 191445 points

I'm going to move this to the Webench forum.

0 Kazuki Kuramochi over 8 years ago in reply to JohnTucker

TI__Genius 10505 points

That would be fine.

Kazuki Kuramochi

0 Gerold Dhanabalan - Online Design Tools over 8 years ago in reply to Kazuki Kuramochi

TI__Genius 14455 points

Kazuki-san,
You can change the components to match the EVM by going to the BOM table and doing "Select Alternate Parts" on the components that you want changed. In the select Alternate Parts window, you can select from the list of alternate components available. This should update your efficiency values and you should be able to see the new efficiency in the charts section with the selected components.

Regards,
Gerold

0 Kazuki Kuramochi over 8 years ago in reply to Gerold Dhanabalan - Online Design Tools

TI__Genius 10505 points

Gerold-san,

Thank you for your information. I had changed parameter of Parts, And I had simulated efficiency. Furthermore, I want to simulate efficiency on different circuit. For example, EVM includes Snubber circuit but WEBNENCH Circuit don't include it.

I appreciate great help in advance.

Regards,

Kazuki Kuramochi

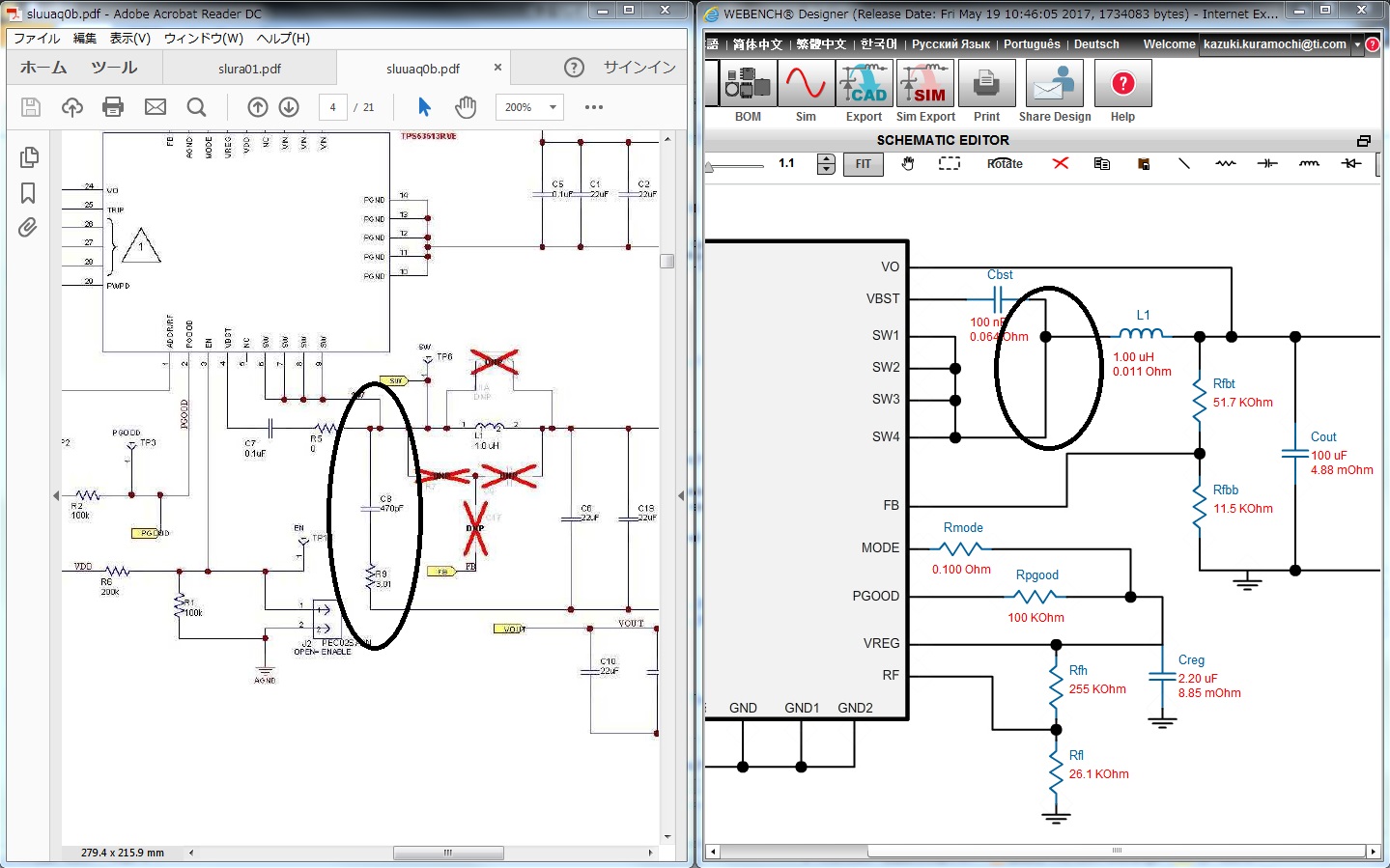

For your information, I attache difference of schematic in EVM and WEBENCH.

0 Gerold Dhanabalan - Online Design Tools over 8 years ago in reply to Kazuki Kuramochi

TI__Genius 14455 points

Hi Kazuki-san,

We currently dont have a way to give you efficiency values for additional circuits being added to the schematic. As an alternative, you could find the power loss value in the Operating Values table for the existing schematic. Then calculate the losses from the snubber alone and it to the loss value in the table to get the losses with the additional circuit. This is just a work around and will be only an approximate value but you can use it to estimate the efficiency.

Regards,

Gerold

0 Kazuki Kuramochi over 8 years ago in reply to Gerold Dhanabalan - Online Design Tools

TI__Genius 10505 points

Gerold-san,

Thank you for your quick response.
I understood about measuring efficiency.

Best Regards,
Kazuki
