TINA/Spice/LM74670-Q1: Reverse Polarity Protection LM74670-Q1

Robert Worm

Part Number: LM74670-Q1
Other Parts Discussed in Thread: TINA-TI

Tool/software: TINA-TI or Spice Models

Hi,

Simulating a reverse polarity protection some problems occurred:

Plotting the transient response for a fixed Voltage works fine - but measuring the current gives an Error "Convergence Problem. Check analysis parameters!"

The same message comes a when I use a square wave with for example +-12V to emulate reverse polarity - but only for certain window settings.

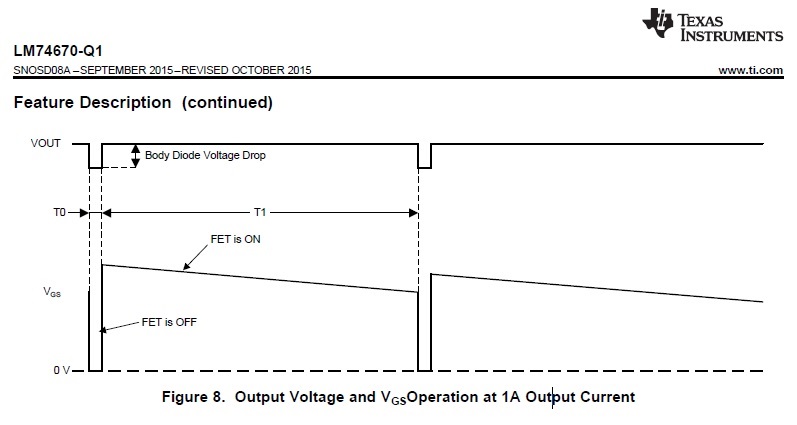

Furthermore DC Analysis gives a operating point not found warning. Is this due to the not stationary output voltage (graphic).

over 7 years ago

0 Imran Dharwad over 7 years ago

TI__Intellectual 1440 points

Hi Robert,

Can you please share the .TSC you are using?

Thanks,
Imran

0 Robert Worm over 7 years ago in reply to Imran Dharwad

TI__Prodigy 670 points

There you go.

PS: .TSC file deleted

0 Imran Dharwad over 7 years ago in reply to Robert Worm

TI__Intellectual 1440 points

Thanks Robert. We will check and get back to you.

Regards,
Imran

0 Arpan Gupta over 7 years ago

TI__Expert 3140 points

Hi Robert,

PFA the updated TINA-TI test bench .TSC is removed

Below is the simulation result

Kindly note that we have made the following changes to make it work

1. Changed the value of analysis parameter 'DC max abs. current incr. [A]' to 500m

2. Removed ".IC V(GATE_DRIVE )=0" statement from .LIB file inside the macro

Thanks & Regards,

Arpan Gupta

0 Robert Worm over 7 years ago in reply to Arpan Gupta

TI__Prodigy 670 points

Thank you for the fast response Arpan and Imran.

I'm having no more problems now.

Regards,

Robert

0 Robert Worm over 6 years ago

TI__Prodigy 670 points

Hi again,

I kept working with the Smart Diode Controller testing different Reverse Polarity approaches.

a) Is a Push-Pull Configuration (not optimal due to shoot-through current) delivering +-12V Vin

The output capacity keeps the output from dipping negative. The solution works.

b) Is a Full-Bridge configuration - pole switching is accomplished by UCC2701 Half-Bridge Drivers.

The LM74670 is placed between the Nodes HS1 and HS2. Note that there is no negative Input - only polarity switching.

I figured since Vanode - Vcathode is negative the Gate should turn off and disable reverse current flow.

Still the simulation takes a lot of time, and I am getting nowhere near the results I expect without the 10 Ohm resistor in parallel.

Any help/ ideas are welcome!

Regards,

Robert

If you want to look into look into the .TSC files please contact me.

0 Somen Das over 6 years ago in reply to Robert Worm

TI__Intellectual 1040 points

Hi Robert,

I am looking into it and will get back to you on your TI email.

Thanks,
Somen
