TINA/Spice/UCC28730-Q1: spice library error

Hi Juntae,

We are looking into it. We will update you once it is resolved.

Thanks,
Somen

Since i had problem on simulation with encrypted lib,  I had unencrypted lib from Jim Denison under NDA #2017-02-17-66885 by my request.

I have error massage with linked lib(encrypted) in TINA and SPICE like below pictures

I cannot upload pictures in my office.
i got error massage on LTspice
"Too few nodes:
Eee8c5c7a2bc4b01f045f303678664e7916da0bae22e8cb0bba041dd67c69ce448ea70148a9ac1670c8926c1ac5057c8ccfcd77bf87ca9dc4985777ec81e872e"

On TINA
"Invalid device: &CDNENCSTART.lin:#32"

Please help me to simulate on my laptop

Hello Juntae,

Could you give me your email address, I can send you the module the SPICE is missing.

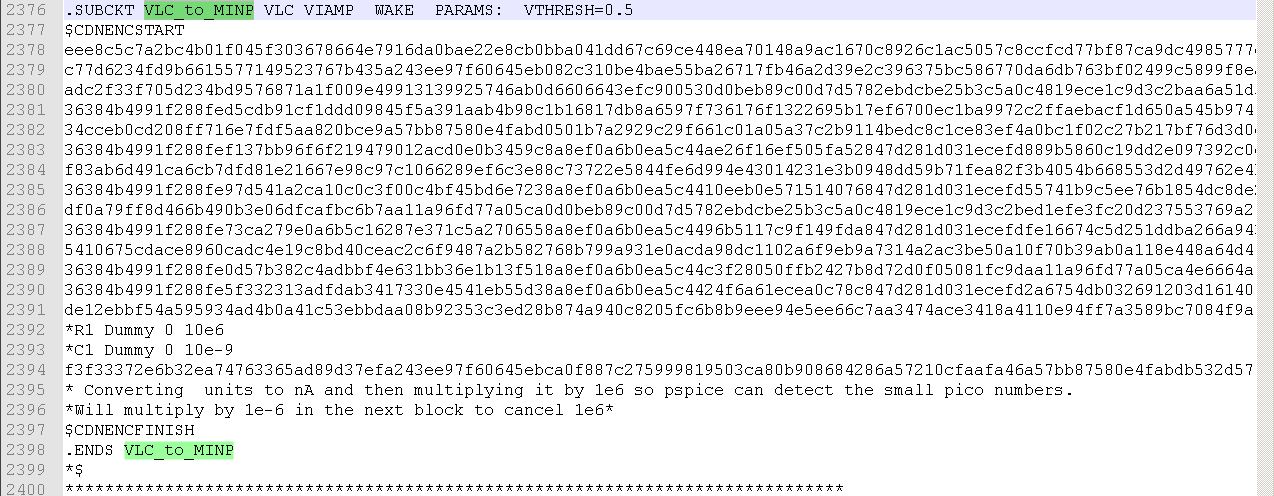

Once you receive the module, please add (or replace) the following code in the original unencrypted model you got under NDA from Jim.

Once you add the module please verify the model in PSPICE ( Simply download the full zip file on the web, and replace the released .lib file with the unencrypted .lib file you have and it should run)


Kind Regards,
Arash

Thank you

This is my email juntae2.kim@lge.com



Thanks,

I sent you the code which your netlist was pointing to as missing.

Kind Regards,

Arash

D_D1 module also missing

Can you provie full version library model?

Please check it again

If it is possible, please share ucc28700-q1 library too
Thank you
