WEBENCH® Tools: WEBENCH® Power Designer

Hi Robert,

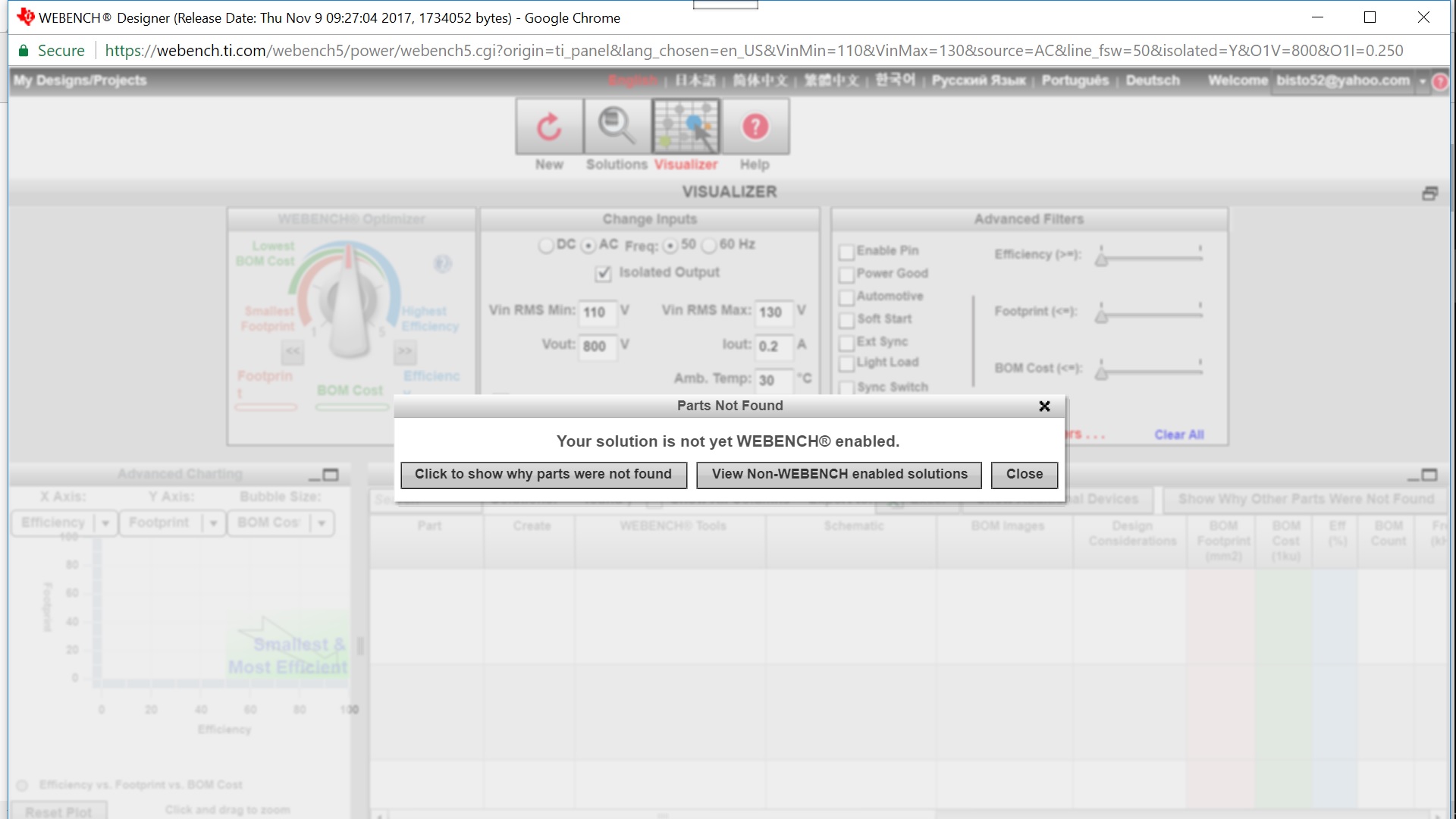

Thanks for using Webench tool. There are AC/DC devices currently enabled on Webench, but those do not support the input specifications that you are requesting for. Please let us know which topology are you looking at and your requirements in detail (if possible) so that we can support you better.

Regards,
Maqbool

Hi Maqbool,

I was looking at design tools for say a simple push-pull topology with multiple high and low voltage outputs . All components would be 'off the shelf' except for the transformer and/or other inductors. These would have to be custom made and might perhaps be the most challenging part of such a project?

Regards,

Robert

Hi Robert,
We currently do not support multiple outputs in these high voltage topologies. Nevertheless, the tool does not have 800V output designs currently. As an alternative you can derive a single output and then use that as the intermediate rail to derive your point-of-loads.
Regards,
Gerold

Hi Gerold,

How are single output high voltage topologies supported? I would be grateful if you would kindly send me a page link.

Regards

Robert
