TINA/Spice/LM2902: Spice Model of LM2902DR

Philip
Expert 1510 points
Part Number: LM2902
Other Parts Discussed in Thread: TINA-TI,

Tool/software: TINA-TI or Spice Models

Hi,


I am looking for spice model of LM2902DR but could not find any information from TI site.

Can you kindly help to advise on this?

Best Regards,

Phil

  • 0
    TI__Intellectual 1440 points
    Hi Philip,

    Currently we donot have model developed for this device. You can can go to www.ti.com/spicerack and search for similar devices having models using the search box.
  • 0 in reply to Imran Dharwad
    Expert 1510 points
    Hi Imran,

    Thanks for your reply and good advice.
    I managed to get similiar model LM2902DR through automotive spec.

    Philip
  • 0 in reply to Philip
    Expert 1510 points

    Hi Imran,

    Sorry for this, I have additional question.

    I downloaded PSpice model of LM2902-Q1 (automotive grade).

    I am not really sure which one is the actual spice model.
    I need a file with .txt extension to run in my simulation, I show you one example as per attached.


    Can you help me on this '.txt' file for LM2902-Q1?

    www.ti.com/.../toolssoftware

    Fullscreen 2902_Op Amp.txt Download
    * xx29xx operational amplifier
*"macromodel" subcircuit
*
* connections:
*    1 -  non-inverting input
*    2 -  inverting input
*    3 -  positive power supply
*    4 -  negative power supply
*    5 -  output
*
.subckt xx29xx/MC  1 2 3 4 5
*
  c1   11 12 2.000E-12
  c2    6  7 6.000E-12
  cee  10 99 388.6E-15
  dc    5 53 dx
  de   54  5 dx
  dlp  90 91 dx
  dln  92 90 dx
  dp    4  3 dx
  egnd 99  0 poly(2) (3,0) (4,0) 0 .5 .5
  fb    7 99 poly(5) vb vc ve vlp vln 0 48.23E6
+ -50E6 50E6 50E6 -50E6
  ga    6  0 11 12 41.47E-6
  gcm   0  6 10 99 414.7E-12
  iee   3 10 dc 2.543E-6
  hlim 90  0 vlim 1K
  q1   11  2 13 qx
  q2   12  1 14 qx
  r2    6  9 100.0E3
  rc1   4 11 24.11E3
  rc2   4 12 24.11E3
  re1  13 10 3.043E3
  re2  14 10 3.043E3
  ree  10 99 78.65E6
  ro1   8  5 50
  ro2   7 99 25
  rp    3  4 37.62E3
  vb    9  0 dc 0
  vc    3 53 dc 1.800
  ve   54  4 dc .88
  vlim  7  8 dc 0
  vlp  91  0 dc 40
  vln   0 92 dc 40
.model dx D(Is=800.0E-18)
.model qx PNP(Is=800.0E-18 Bf=32.03)
.ends
*$

    Philip

  • 0 in reply to Philip
    TI__Intellectual 1440 points

    Hi Phil,

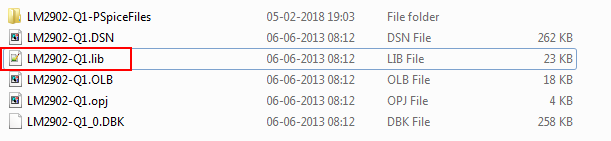

    The spice model you are looking for will be with '.LIB' extension in PSPICE model.

    Currently the released spice model is encrypted.

  • 0 in reply to Imran Dharwad
    Expert 1510 points
    Hi Imran,
    Is there a way to convert this .LIB file to .txt file?

    Thanks,
    Phil
  • 0 in reply to Philip
    TI__Intellectual 1440 points
    Hi Phil,

    You can just rename the file extension from .LIB to .txt.
    As mentioned earlier, the release spice model lib file is encrypted.
