TINA/Spice/TINA-TI: Error while creating macro for SCT2280KE mosfet spice model in TINA TI

Rahul Choudhary

Prodigy 20 points

Other Parts Discussed in Thread: TINA-TI

Tool/software: TINA-TI or Spice Models

I am getting following error while trying to add a new macro of spice model of SCT2280KE mosfet.

Following link:

http://www.rohm.com/web/in/products/-/product/SCT2280KE

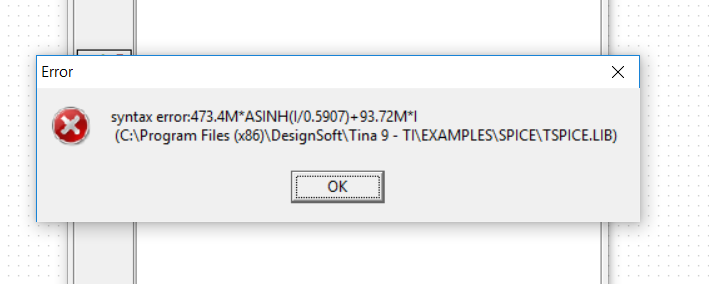

The spice netlist is compiling successfully. Still, I am getting the below error:

over 7 years ago

0 Nikhil Gupta (Product Folder Models) over 7 years ago

TI__Mastermind 39210 points

Hi Rahul,

A couple of points:

1. Please make sure you are using the latest version of TINA-TI (9.3.150.328) since it has lot of improvements for spice model import.
2. ASINH is not supported in TINA-TI, but you can make some changes before importing to make it work. Please see this FAQ:

e2e.ti.com/.../3550.no-native-support-for-asinh-function

0 Rahul Choudhary over 7 years ago in reply to Nikhil Gupta (Product Folder Models)

Prodigy 20 points

Thanks
