TIDA-00243: gerber data share

Taemin Ahn

Part Number: TIDA-00243
Other Parts Discussed in Thread: BQ51221, BQ51013B,

Hi team

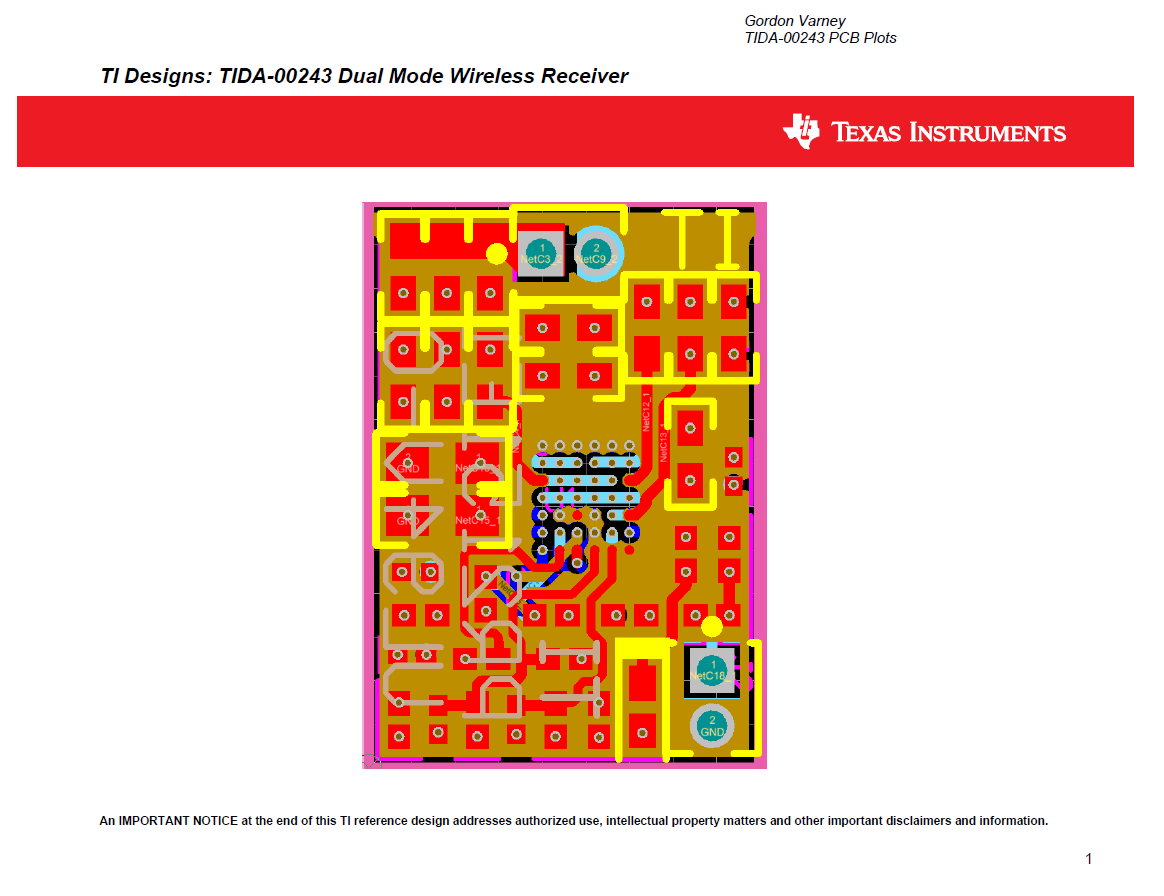

Looking at the picture below, it seems that there is a pcb inner layer.
But gerber checked that there is no inner layer. There is only top bottom.

I want all Gerber present. Is it possible to share?

Thanks,

0 ezhao over 7 years ago

Teamin,

Can you check out the Altium file in the design folder?

Regards,

Eric

0 Bill Johns over 7 years ago in reply to ezhao

Something is wrong here.

The design files show Mid Layer 1 and Mid Layer 2 for a total of 4 layers. Only Top Layer and Bottom Layer are in Gerber file and PCB.

We will fix the problem.

But do you need the BQ51221 dual mode PMA / WPC or would the WPC only bq51013B meet your requirments?

0 Taemin Ahn over 7 years ago in reply to Bill Johns

Hi Johns

When is Gerber data updated TIDA-00243?

Thanks,
TM

0 Bill Johns over 7 years ago in reply to Taemin Ahn

Updated files are in TIDA-00243 product folder, Rev A.
