Original question:

TINA/Spice: Simulation issues

TINA/Spice: PROBLEM FOR A NEWBIE : Facing difficulties in making circuit.

jayanth pasumarthi
Prodigy 220 points
Other Parts Discussed in Thread: TINA-TI

Tool/software: TINA-TI or Spice Models

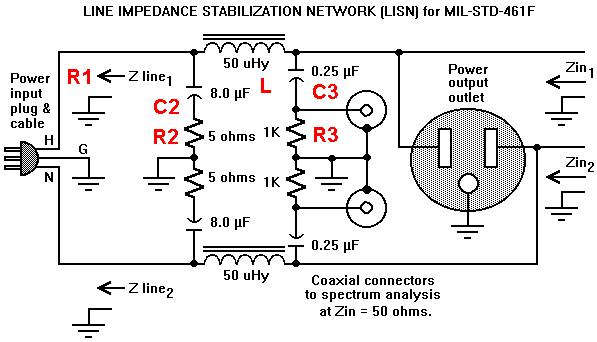

I am using TINA 9.3.1. I want to make LISN circuit as shown below and simulate the results.

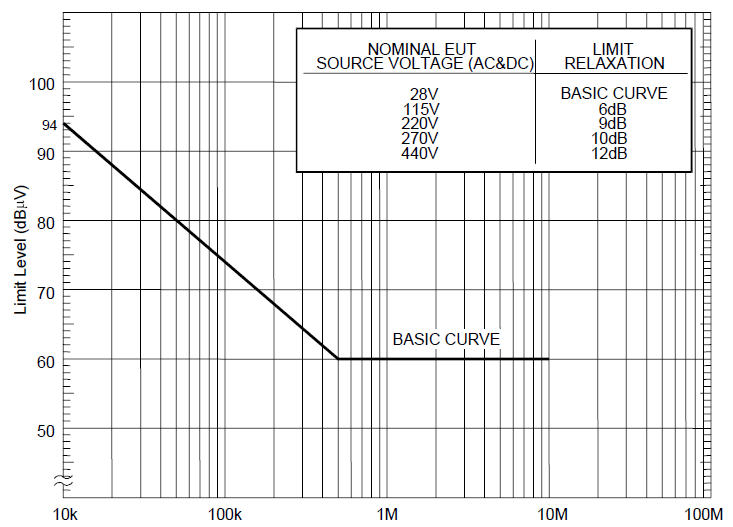

For the above circuit The target to be achieved is as shown in below.

Please guide me in achieving my target, since the TINA tool is giving different output curves at different instances.

Another problem I am facing is the output curve is showing up in dB while the target is in dBuV, So guide me if there is any provision to get a graph as shown above.
