I'm doing a switcher design based on the TPS54560.

In WBENCH when i look at the parts being offered, i wonder whether the coilcraft parts are correctly specified?

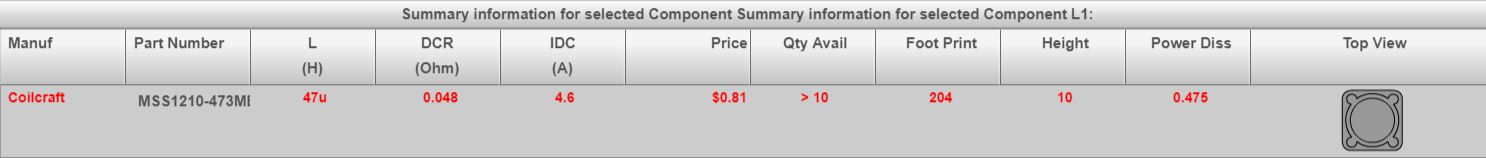

WBENCH is showing a coilcraft inductor (MSS1210-473MEB) with the following parameters -

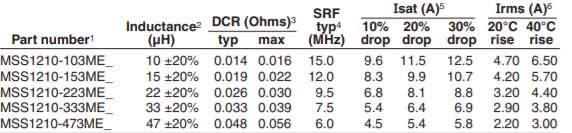

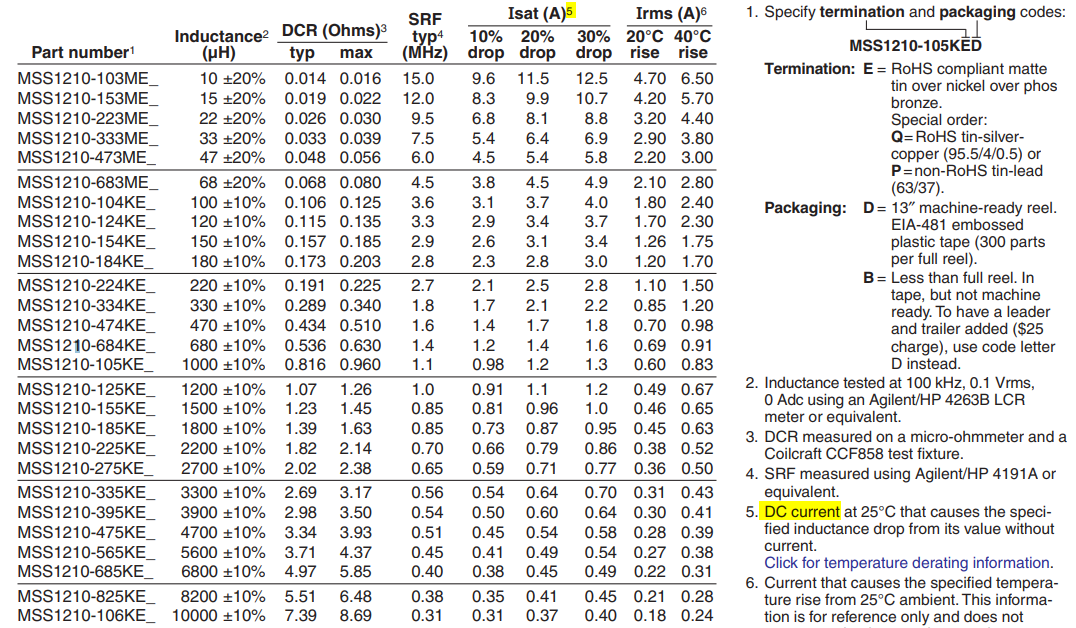

The Coilcraft datasheet shows the following parameters-

It appears that the value for Isat(A) has been used in place of Irms(A).

Am i reading correctly?

over 7 years ago

0 Kiran Kumar10 over 7 years ago

TI__Intellectual 1625 points

Hi Howard,

The IDC(A) current of Inductor in Webench is nothing but Isat(A).

Thanks,

Kiran Kumar

0 howard banks over 7 years ago in reply to Kiran Kumar10

Intellectual 580 points

Hi Kiran,

Okay, so the Idc(A) is the Isat(A) value.

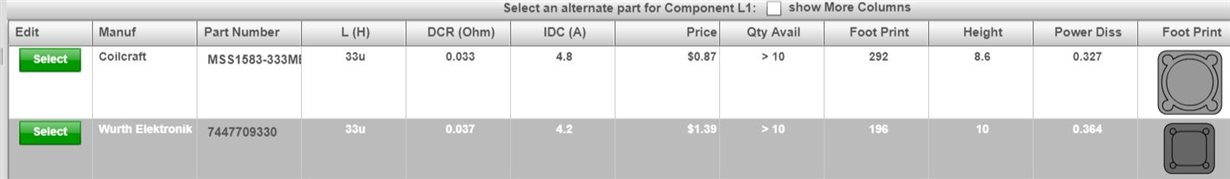

If i look at an alternative part from Wurth - 7447709330 I get the following in WEBENCH

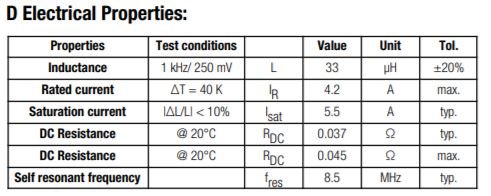

The Wurth datasheet shows

So in this instance the Isat figure isnt used?

Howard

0 Gerold Dhanabalan - Online Design Tools over 7 years ago in reply to howard banks

TI__Genius 14455 points

Hi Howard,

WEBENCH uses the minimum of Isat and Irms for the inductor current rating. Also, we use the Isat for 30% drop in inductance and Irms for 40degC rise in temperature typically. In case of the MSS1210-473ME, it was a wrong entry in our database. We will get this fixed at the earliest.
