TIDA-01627: Required CAD files for TIDA-01627

Yatish M
Prodigy 120 points

Part Number: TIDA-01627

Hi ,

Digital Shark is a provider of  Product Development and Software solution which includes Hardware, Embedded and Software .

We are Currently working with one of our  client to develop the Carrier board where we are designing Power Delivery Reference Design with Built-in Battery Control.

where  TIDA-01627 matches our requirement but when i tried to download  CAD   source files (.brd) in the below link , It was missing .

Kindly point me to right resource link, where I can get the .brd file

Thanks
Yatish.M
Country Manager

  • 0
    TI__Mastermind 36756 points

    Hi Yatish,

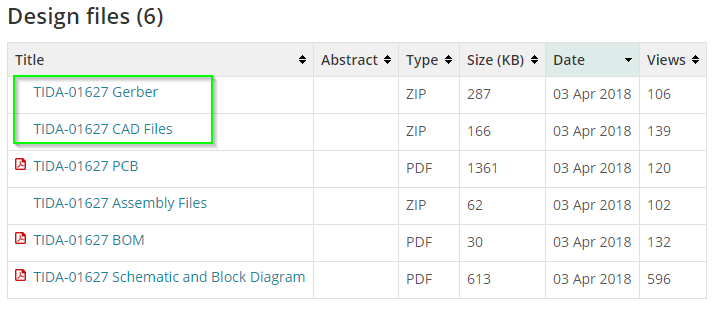

    I just checked the product page for the TIDA-01627 and the CAD files are available under the design files section:

    If this answers your question, PLEASE select This resolved my issue

    Thank you,
    Eric

  • 0 in reply to Eric Beljaars
    Prodigy 120 points

    Hi Eric,

    Thanks for the quick reply!!.

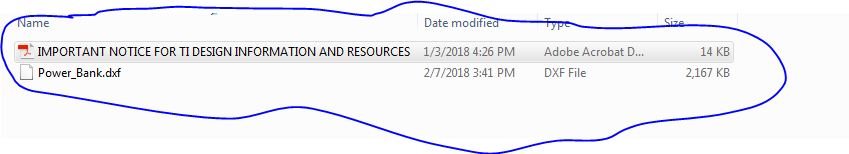

    Yes I did download the cad files .zip . In Zip file I only see  .dxf  and .pdf file rather than .brd file. Kindly  point me to right resource.

    Thanks
    Yatish.M

  • 0 in reply to Yatish M
    TI__Mastermind 36756 points

    Hi Yatish,

    We do not share .brd files from TI-designs. We only share the gerbers to build the board as we do not support any changes to this design.

    If this answers your question, PLEASE select This resolved my issue

    Thank you,

    Eric

  • 0 in reply to Eric Beljaars
    Prodigy 120 points
    Hi Eric ,

    Once again Thank you for the quick response !!

    Ok , but Gerber which is shared requires changes in Minimum Spacing and trace size as requested from our PCB fabricator.

    but I see for TIDA-00288 TI-design has shared the .brd files in the Product link. where we have modified the design files and got fabricated. So I was expecting the same for the TIDA-01627 .

    Note :

    1.If everything works fine we will procure the 500 MOQ of TI components mentioned in TIDA-01627 BOM.


    Kindly suggest how to proceed.


    Thanks
    Yatish.M
  • 0 in reply to Yatish M
    TI__Mastermind 36756 points

    Hi Yatish,

    The TIDA-01627 design was not developed in cadence which might also be the reason why there is no .brd file. We are currently in the process of updating the TIDA-01627 design to contain the TPS65987D PD controller which would allow for more flexibility in design options. This update should be released later this quarter.

    If this answers your question, PLEASE select This resolved my issue

    Thank you,

    Eric
