WEBENCH® Tools: Power System Architect

David Wende

Intellectual 740 points

Tool/software: WEBENCH® Design Tools

I need to design a power system with about 14 separate rails.

Some of the rails must be digitally adjustable.

I do have voltage range and maximum current requirements for each rail.

Is there a tool available that will enable me to design this?

The Power Architect does not allow me to specify the output voltages RANGE.

Thanks

over 7 years ago

0 Praveen Badiger over 7 years ago

TI__Expert 8365 points

Hi David,

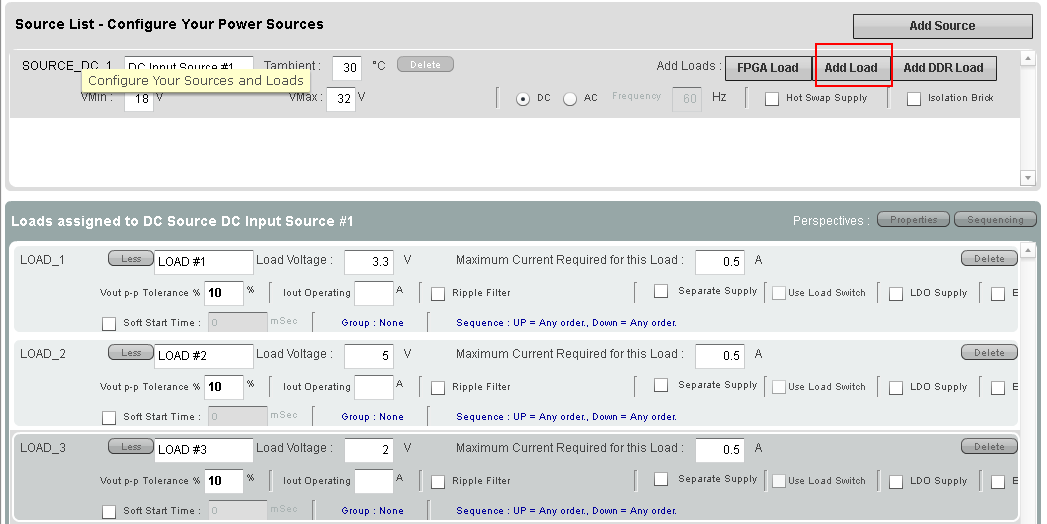

In the power architect, multiple rails can be added using the 'Add Load' option. Please specify the voltage and current load capability of each rail as shown below. Currently, WEBENCH does not have the option to specify voltage range for output rails.

Thanks & Regards,

Praveen B

0 Gerold Dhanabalan - High Performance Radar over 7 years ago in reply to Praveen Badiger

TI__Genius 14455 points

Hi David,
Is there a specific reason why you would want to design for a specific voltage range? I think you mean digitally programmable outputs that can change Vout under specific situations. Is that correct?

Regards,
Gerold

0 David Wende over 7 years ago in reply to Gerold Dhanabalan - High Performance Radar

Intellectual 740 points

Each rail is to be digitally programmable over I2C/SPI. This is a requirement of the board. I guess I don;t really understand your question or comment.
Each rail is required to programmable over it's specific range.
