I need to save the transient results of simulation as text (ascii) file for further numeric analysis. Is that possible with TINA-TI v7?
Thanks and Regards,
Massimo
This thread has been locked.
If you have a related question, please click the "Ask a related question" button in the top right corner. The newly created question will be automatically linked to this question.
Hi all,
I need to save the transient results of simulation as text (ascii) file for further numeric analysis. Is that possible with TINA-TI v7?
Thanks and Regards,
Massimo
From TINA's waveform viewer you can export a text file of any waveform. Go to File ->Export -> As text.

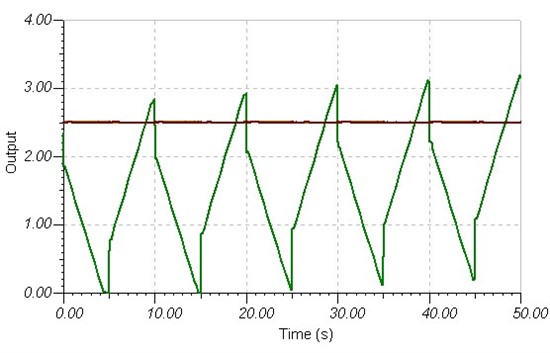

Here's a transient waveform plot:
And here's the text file:
