TINA/Spice/LM3478: SEPIC Simulation

PY (Pengyu) Song

Part Number: LM3478
Other Parts Discussed in Thread: TINA-TI

Tool/software: TINA-TI or Spice Models

Hi team,

I'm trying to simulate the LM3478 TINA-TI Average SEPIC Reference Design from the product folder. How accurate is the model?

www.ti.com/.../snvmb83

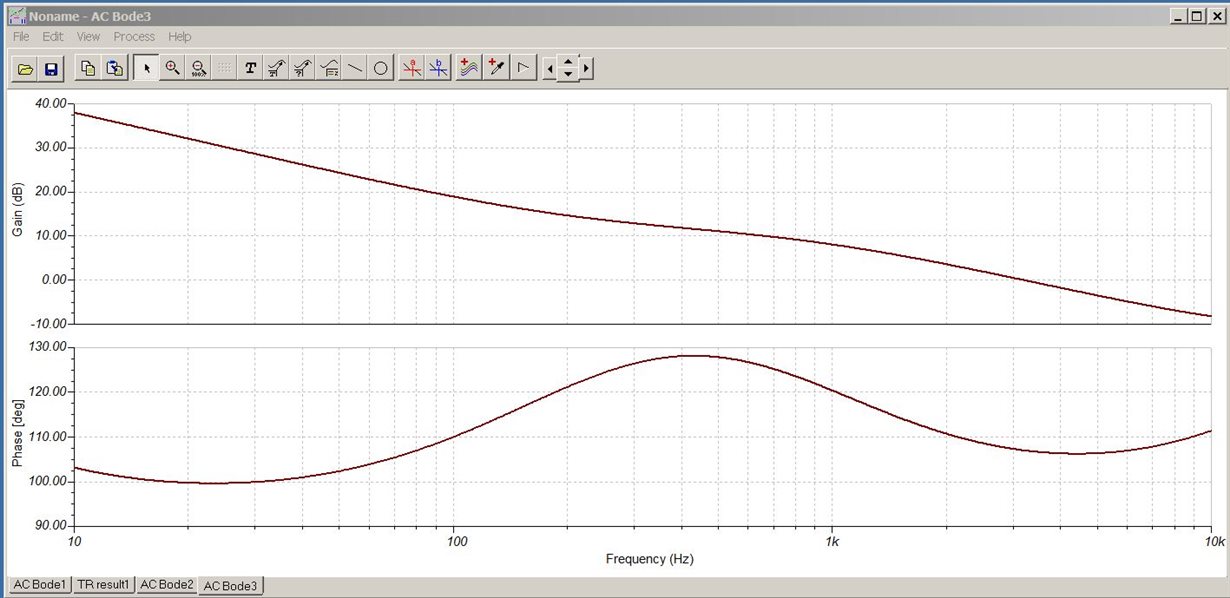

Below is simulation from 10 to 10kHz as specified in the TINA file: the phase does not go to 0 degree - is this correct?

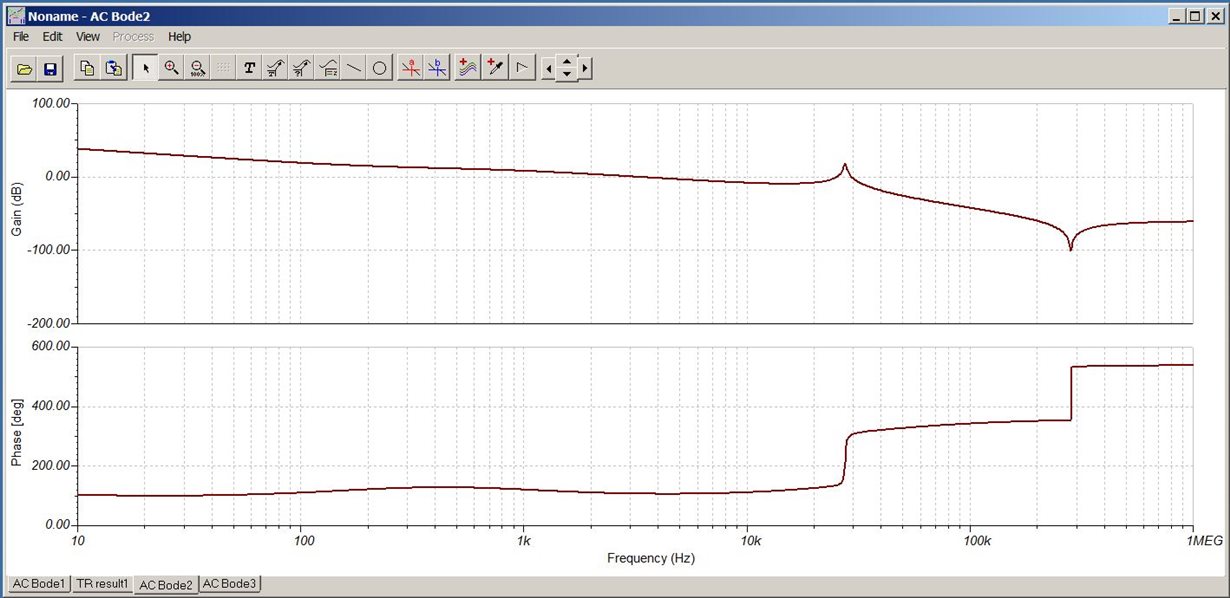

2nd simulation is to extend frequency to 1MHz (out of the range specified in TINA) as shown below: the phase is going so much higher! Correct?

over 7 years ago

0 Herman Theodorus over 7 years ago

TI__Genius 9775 points

Hi PengYu,

FYI, We have one of our team looking into this.

Herman.

0 PY (Pengyu) Song over 6 years ago in reply to Herman Theodorus

TI__Expert 5860 points

Hi team,

Any update?

0 Karthik Kulkarni over 6 years ago in reply to PY (Pengyu) Song

TI__Intellectual 1090 points

Hi PengYu,

Sorry for the delay.
I am looking into this. Please expect an update by end of this week.

Regards,
Karthik

0 Karthik Kulkarni over 6 years ago in reply to Karthik Kulkarni

TI__Intellectual 1090 points

Hello PengYu,

Spice tools (PSPICE and TINA-TI) directly plot the phase margin i.e 180 + Phase and the application notes note shows the phase only.
So the results are proper.
With regards to the second query, I need to look into this further why there are 2 steps seen in phase.

Regards,
Karthik

0 PY (Pengyu) Song over 6 years ago in reply to Karthik Kulkarni

TI__Expert 5860 points

Hi,

Any update?

0 Herman Theodorus over 6 years ago in reply to PY (Pengyu) Song

TI__Genius 9775 points

Hi PengYu,

Since we continue the discussion through internal email, I'll close this one.

Herman
