WEBENCH® Tools: WEBENCH design report incorrect

Dean Rowntree

Prodigy 40 points

Tool/software: WEBENCH® Design Tools

I noticed that the design report function does not output the correct schematic or BOM.

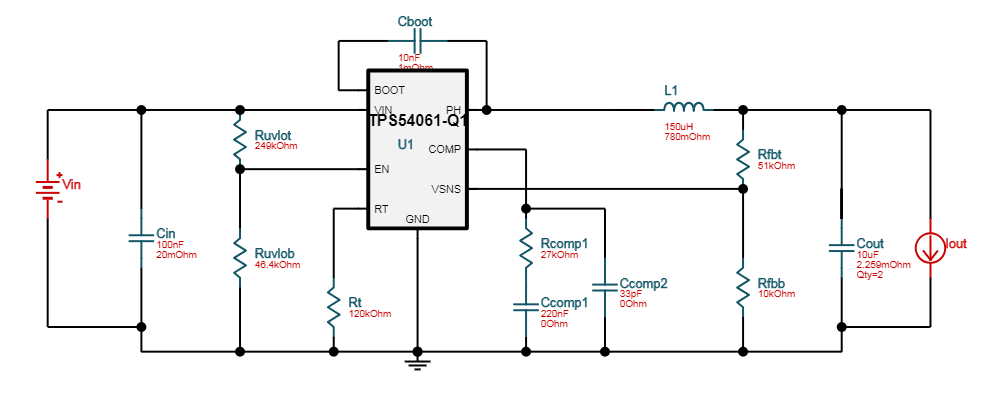

Actual design:

From report:

over 6 years ago

0 Praveen Badiger over 6 years ago

TI__Expert 8365 points

Hi Dean,

Could you please share the design using 'Share Design' option.

Thanks & Regards,

Praveen B

0 Dean Rowntree over 6 years ago in reply to Praveen Badiger

Prodigy 40 points

Here's a public link. I should mention that I am using the WEBENCH beta.
webench.ti.com/.../SDP.cgi

0 Praveen Badiger over 6 years ago in reply to Praveen Badiger

TI__Expert 8365 points

Hi Dean,

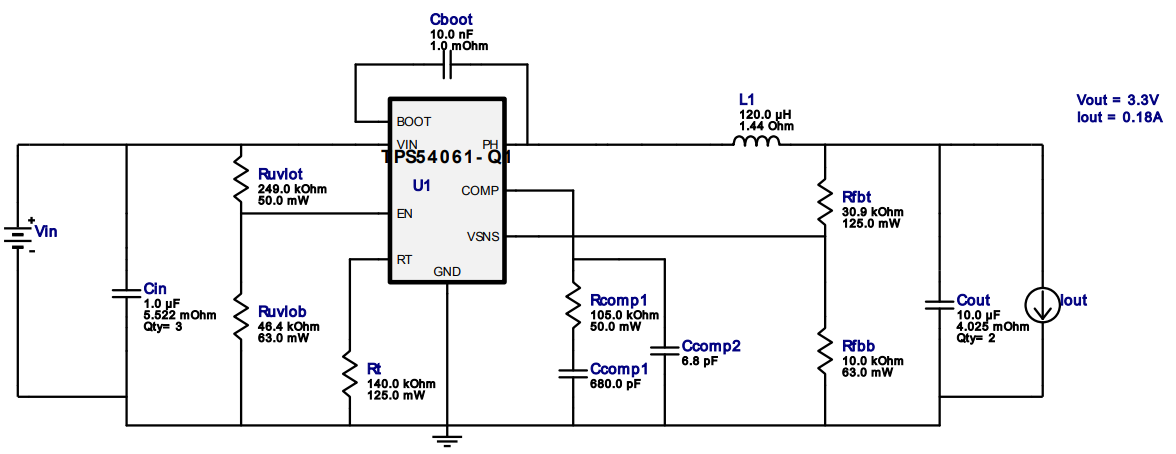

The schematic of the design shared by you matches the schematic in the report.

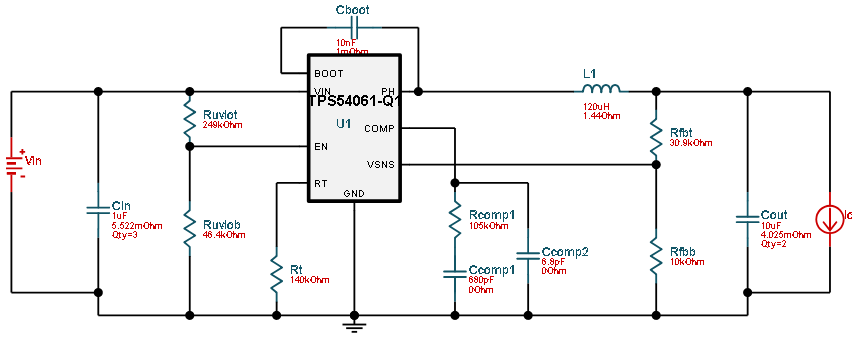

1.Schematic in the design.

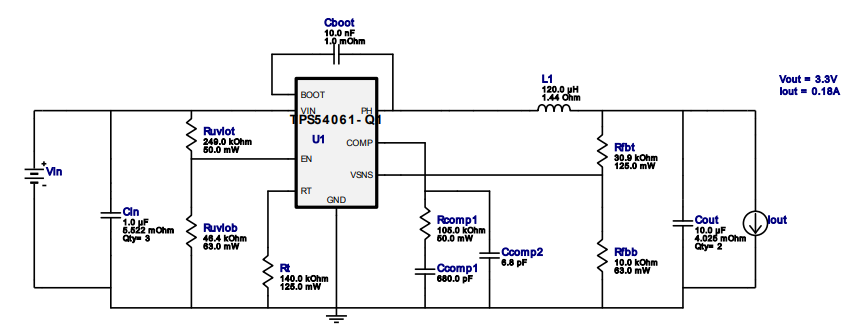

2.Schematic in the report.

Seems like the schematic shared above is of the different design. Please let me know if you have any questions.

Thanks & Regards,

Praveen B

0 Dean Rowntree over 6 years ago in reply to Praveen Badiger

Prodigy 40 points

Thank you. I took a closer look using the old and new interface. I think I may have compared similar versions of the schematic. The new beta interface does not have a section for design comments, which is useful to distinguish between designs.
