WEBENCH® Tools: Unable to print schematic and BOM after changing inductance part

Shibuya

Intellectual 2985 points

Other Parts Discussed in Thread: TPS54540, TPS54331

Tool/software: WEBENCH® Design Tools

Hello,

I cannot print schemati and BOM after chnaging inductor part. Detail is as follow

1. Enter the Webwnch from the TPS54540 pruct folder. (VIN 22.8 - 25.2V VOUT 5.0V IOUT 1.6A)

2. I can get PDF of schematic/BOM and Assembly documents by Print Report.

3. after simulation I can also get those files.

4. Then I change inductor part from default TDK to Bourns, I cannot print only schematic/BOM documant. I can print Assembly document.

I confirmd this issue not only with TPS54540 but also with TPS54331 on old and new version of Webench.

Best regards,

Tetsuro

over 6 years ago

0 Kiran Kumar10 over 6 years ago

TI__Intellectual 1625 points

Hi Shibuya,

Thanks for bringing up to our notice.
You are correct, I followed the above procedure and i confirmed the issue being present .
We will try to fix it and let you know soon.

Thanks,
Kiran Kumar

0 Kiran Kumar10 over 6 years ago in reply to Kiran Kumar10

TI__Intellectual 1625 points

Hi Shibuya,

The issue is fixed now and the latest updates will be on ti.com in our next release.

Thanks,
Kiran Kuma

0 Shibuya over 6 years ago in reply to Kiran Kumar10

TI__Intellectual 2985 points

Hello Kiran,

Thank you very mych for your support.

I have one more question regarding difference between old and new version of Webench.

When I changed R, C, L values to meet customer requirment, simulation results were different between old and new version. I changed those parameters to same value. Only difference was that old version reported out of limit warning for L1 and Ccomp.

Could you explain me why this happen?

Best regards,

Tetsuro

WBDesign195.pdf

webench_design_2210331_196_619164994.pdf

0 Kiran Kumar10 over 6 years ago in reply to Shibuya

TI__Intellectual 1625 points

Hi Shibuya,

Could you please share us both the designs old and new version of Webench so that it would be easy for us to debug the issue?

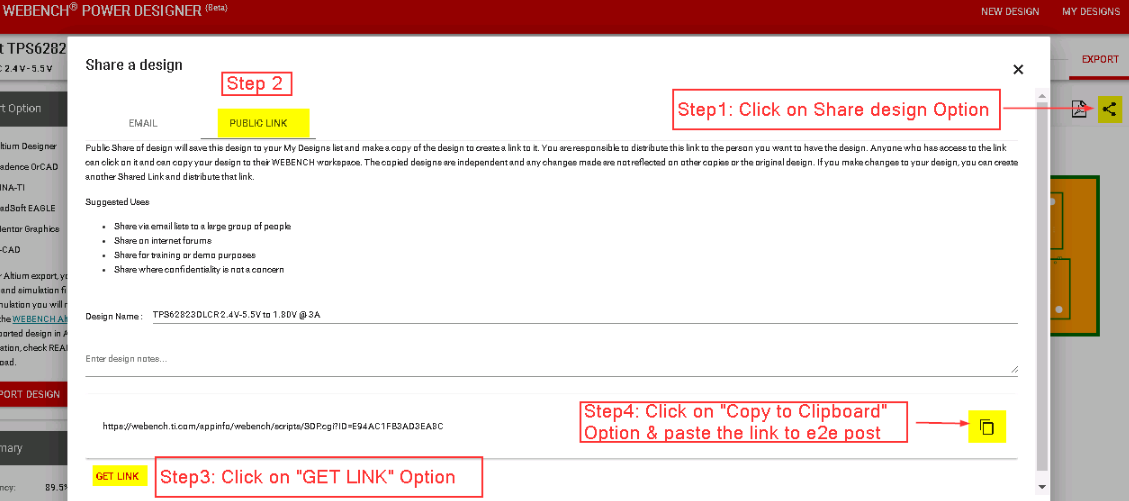

FYI below image to share the design.

Thanks,

Kiran Kumar

0 Shibuya over 6 years ago in reply to Kiran Kumar10

TI__Intellectual 2985 points

Hello Kiran,

Here you can find link for my designs.

webench.ti.com/.../SDP.cgi
webench.ti.com/.../SDP.cgi

Best regards,
Tetsuro

0 Kiran Kumar10 over 6 years ago in reply to Shibuya

TI__Intellectual 1625 points

Hi Shibuya,

There seems to be difference in the steady state x-axis scale from flash to HTML and all other testbenches are matching well from flash to HTML.

We will work on the steady state simulation x-axis scale issue and let you know soon.

Thanks,
Kiran Kumar

0 Kiran Kumar10 over 6 years ago in reply to Kiran Kumar10

TI__Intellectual 1625 points

Hi Shibuya,

Thanks for the patience.
The issue of difference in the simulation results from HTML to FLASH is solved. The latest updates will be on ti.com in our next release.

Thanks,
Kiran Kumar

0 Shibuya over 6 years ago in reply to Kiran Kumar10

TI__Intellectual 2985 points

Hello Kumar,

I would like to confirm which verion is correct on exsiting release?

And when will the next releasse avilable?

Best regards,

Tetsuro

0 Kiran Kumar10 over 6 years ago in reply to Shibuya

TI__Intellectual 1625 points

Hi Shibuya,

Flash version is correct and the HTML version is updated where you will see the updates by 18FEB2019.

Thanks,
Kiran Kumar

0 Shibuya over 6 years ago in reply to Kiran Kumar10

TI__Intellectual 2985 points

Hi Kumar,

Does it mean the classic version ( build in Flash) is correct?
Sorry for frequently asking, but I am not familier with software...

Best regards,
Tetsuro

0 Kiran Kumar10 over 6 years ago in reply to Shibuya

TI__Intellectual 1625 points

Hi Shibuya,

No issues, We are always here to support.
Your understanding is correct i.e the classic version ( build in Flash) is correct.

Thanks,
Kiran Kumar

0 Kiran Kumar10 over 6 years ago in reply to Kiran Kumar10

TI__Intellectual 1625 points

Hi Shibuya,

The release is now complete and you could see the latest updates on ti.com now.

Thanks,
Kiran Kumar
