Tool/software: TINA-TI or Spice Models

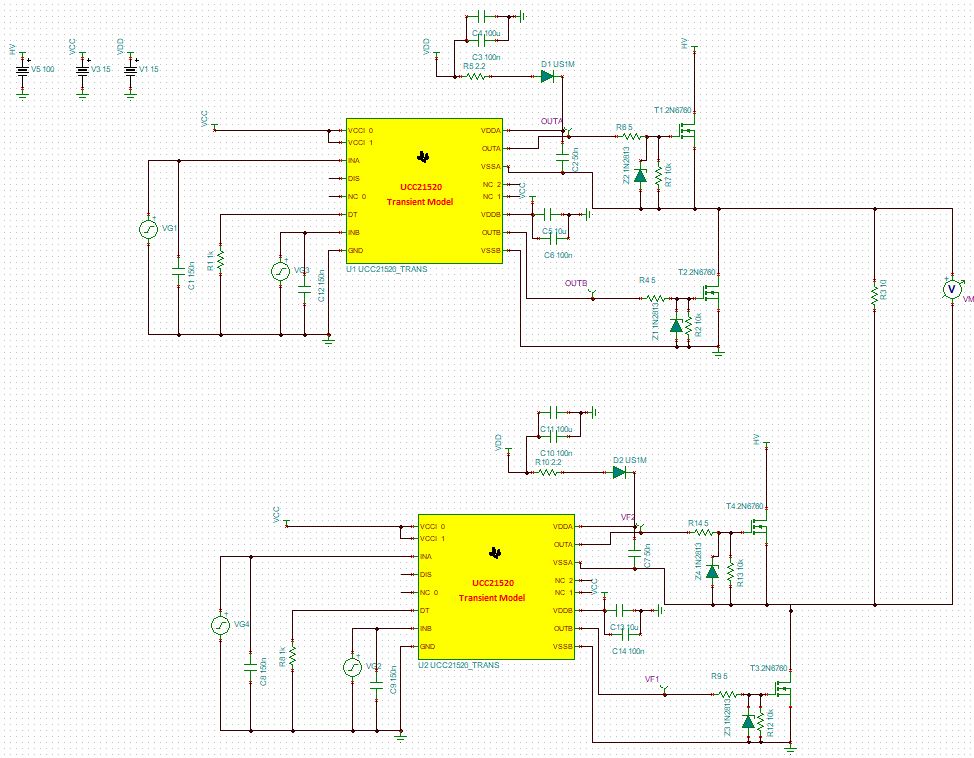

while using a UCC21520 to drive a half bridge, the result is fine; but when i want to use 2 chip of UCC21520 to drive a full bridge, the result is not the same as what i want to get.

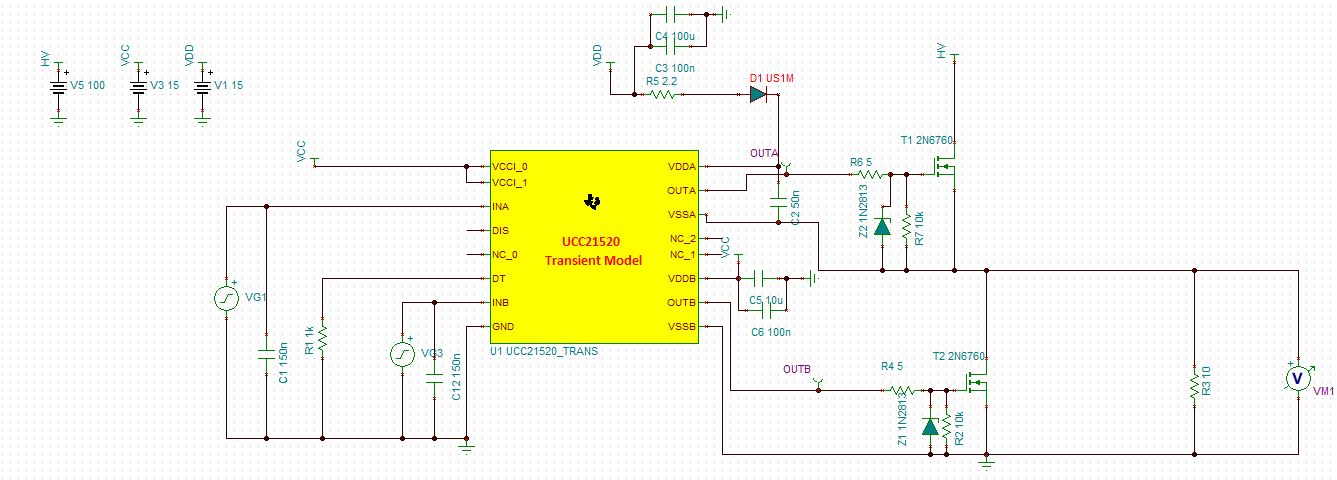

the picture of half bridge :

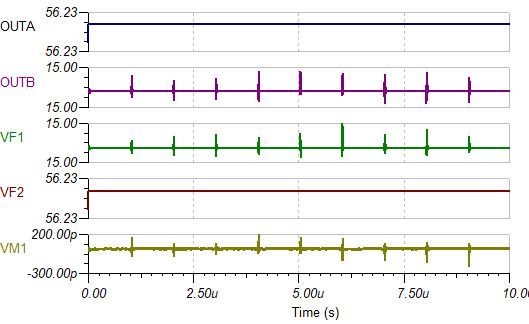

the simulation result is shown as below:
Hi Sheng,

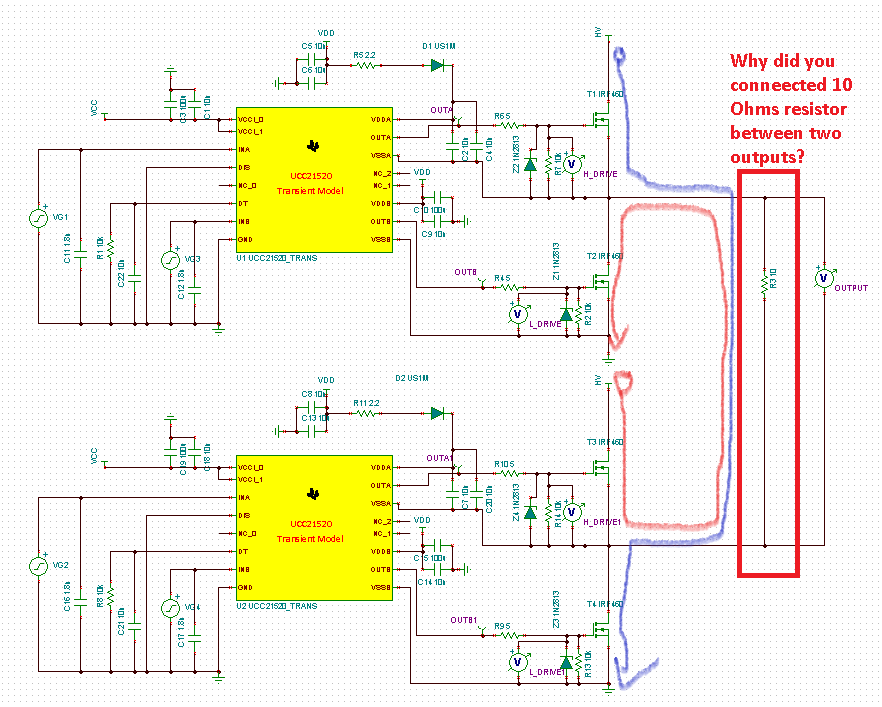

I have a query. Why did you connect 10 Ohms resistor between two outputs?
I observed OUTA and OUTB1 goes high simultaneously. Similarly OUTB and OUTA1. Therefore, the two outputs are not getting defined properly.
Just to experiment, I simulated the devices separately. This simulates fine. PFA the test bench 5340.UCC21520_full_bridge_new.TSC
.
Thanks & Regards,
Arpan Gupta
Hi Sheng,

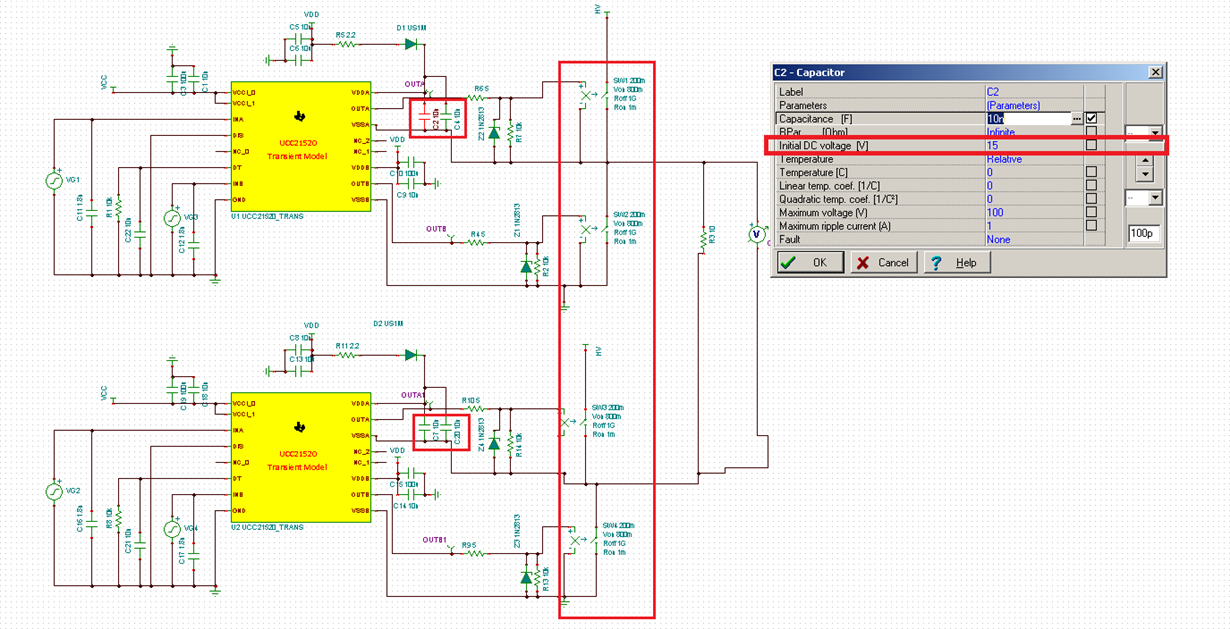

By giving Initial conditions to the BOOT capacitors C2, C4, C7, C20 and replacing the MOSFETs with the switches we are able to get the below result.
