PMP10833: smps layout review

Nilay Patel1

Prodigy 50 points

Part Number: PMP10833

Dear expert

I have designed smps of 15V/1A with reference design of PMP10833

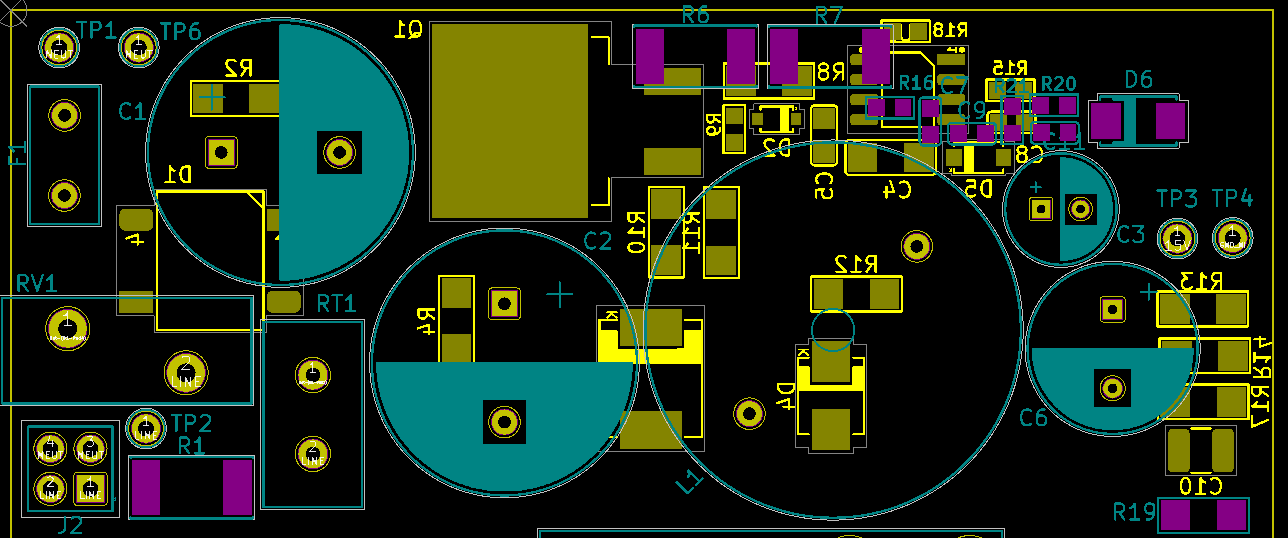

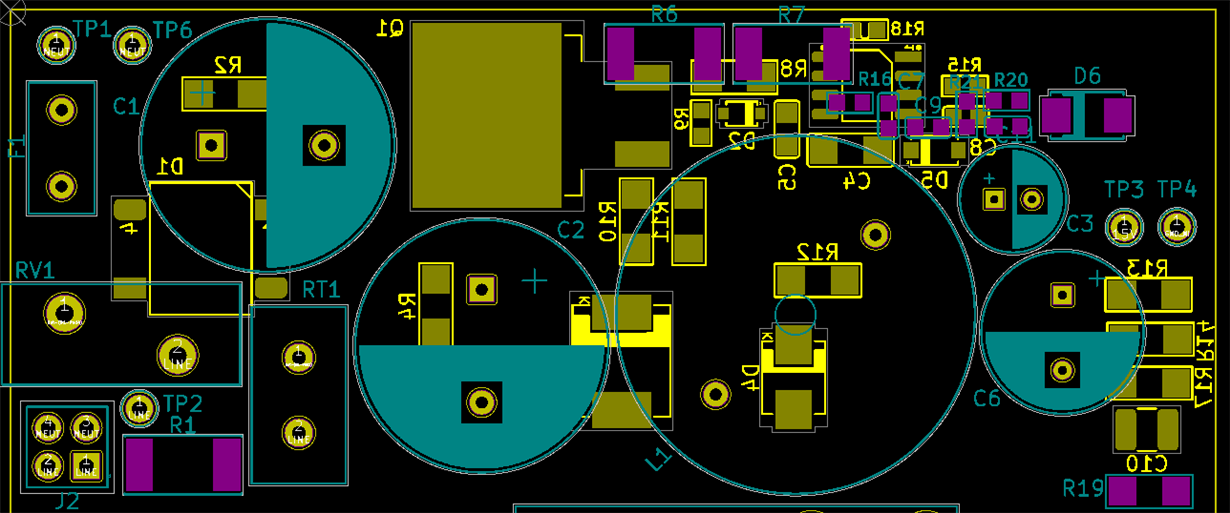

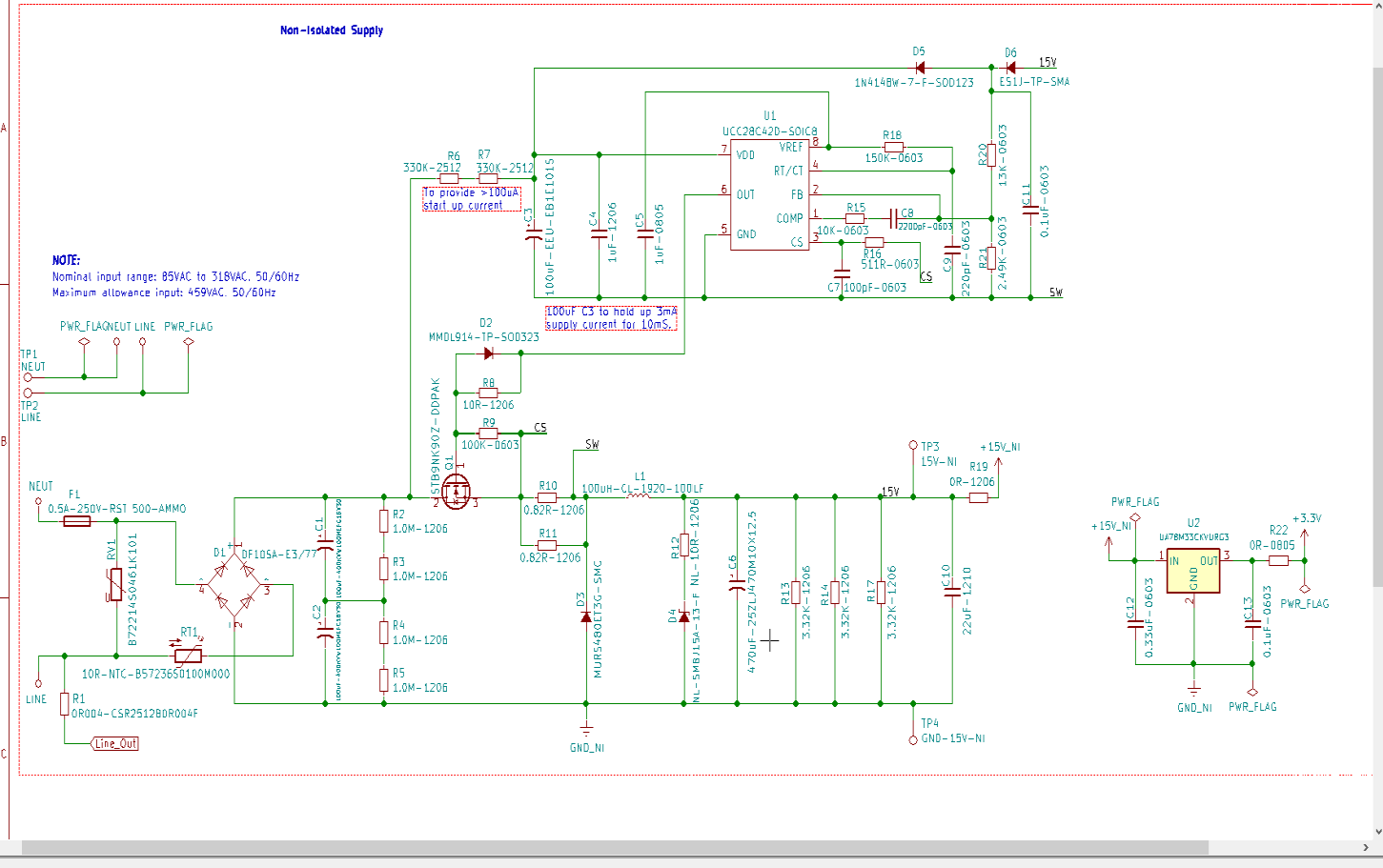

I have attached schematic and pcb layout(Placement of components) for review purpose.

Pls review below layout(Placement of components) and give any changes or suggestion for better performance of smps.

From

Nilay

over 6 years ago

0 Robert Taylor1 over 6 years ago

TI__Expert 6500 points

Hi Nilay,

I did not see an attachment. I am also looping in the original designer.

Thanks,

Robert

0 Nilay Patel1 over 6 years ago in reply to Robert Taylor1

Prodigy 50 points

Hi,

I am again attaching the files for your review. Sorry for your inconvenience. Please find the attachments.

Also, we are using this SMPS for metering purpose and so have swapped Line and Neutral connections. Please give your feedback on this.

Regards,

Nilay

0 Kamesh Lakhwani6 over 6 years ago in reply to Nilay Patel1

Intellectual 765 points

Hi Robert,

Have you reviewed the schematics and layout ? Please reply us as soon as possible.

We are awaiting your kind reply.

Regards,
Kamesh Lakhwani

0 Sheng-yang Yu1 over 6 years ago in reply to Kamesh Lakhwani6

TI__Expert 4750 points

Hi Kamesh,

There is no trace shown in the layout plot, but the part placement looks good to me. Just make sure you are minimizing the power loop - C1 - Q1 - D3 - L1 - C6 - C2. I have attached the simulation files I used for the PMP10833 design. Hope the files help you through the evaluation process.

Regards,

Sheng-Yang Yu

6457.ACDC Buck 15V1A_Simplis simulation.zip

0 Kamesh Lakhwani6 over 6 years ago in reply to Sheng-yang Yu1

Intellectual 765 points

Hi Sheng-Yang Yu,

Thank you for the reply. We will look into it and let you if any further queries are there.

Regards,
Kamesh

0 Kamesh Lakhwani6 over 6 years ago in reply to Sheng-yang Yu1

Intellectual 765 points

Hi Sheng-Yang Yu,

We want to use this power supply for metering applications.
For this we will be taking Line(Phase) of AC as a reference ground. It seems to be not possible here as bridge rectifier is used. So please let us know how could we use this power supply for metering applications ? or can we use a simple diode + cap for AC-DC conversion instead of the bridge rectifier ?

Regards,
Kamesh Lakhwani

0 Kamesh Lakhwani6 over 6 years ago in reply to Kamesh Lakhwani6

Intellectual 765 points

Hi Sheng-Yang Yu,

Awaiting your reply.

Regards,
Kamesh Lakhwani

0 Sheng-yang Yu1 over 6 years ago in reply to Kamesh Lakhwani6

TI__Expert 4750 points

Hi Kamesh,

When you use either Line or Neutral as a reference ground, it doesn't matter you are using a bridge diode or a single diode. The diode rectifier will act as a half-wave rectifier. A half-wave rectifier will need to double its input capacitor to maintain the same minimum rectified input voltage when compares to full-wave rectifier (with bridge diode and output ground not tie to Line or Neutral).

So, yes and it is pretty common for metering applications to use simple diode rectification. You just need to make sure you have enough input capacitance to maintain high enough rectified voltage for your following buck converter.

Regards,

Sheng-Yang Yu

0 Kamesh Lakhwani6 over 6 years ago in reply to Sheng-yang Yu1

Intellectual 765 points

Hi Sheng-Yang Yu,

So we will simply replace the Bridge rectifier with half wave rectifier or Diode 1N4007 with circuit attached. Is it OK?

Regards,
Kamesh

0 Sheng-yang Yu1 over 6 years ago in reply to Kamesh Lakhwani6

TI__Expert 4750 points

Hi Kamesh,

Yes, it is okay. Don't forget to check the voltage valley of your C5 and C6 capacitors and make sure the following buck converter can work properly at that valley voltage.

Regards,

Sheng-Yang Yu

0 Kamesh Lakhwani6 over 6 years ago in reply to Sheng-yang Yu1

Intellectual 765 points

Hi Sheng-Yang Yu,

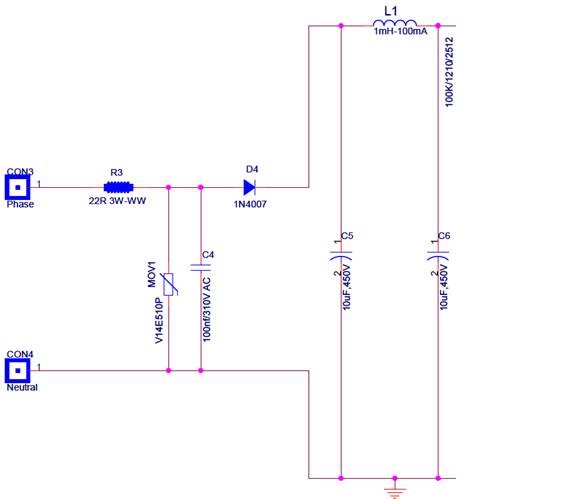

Attached below is the modified circuit. Please have a look and let me know if any further changes are required.

Regards,
Kamesh

0 Kamesh Lakhwani6 over 6 years ago in reply to Kamesh Lakhwani6

Intellectual 765 points

Hi Sheng-Yang Yu,

Awaiting your reply. Please reply asap.

Regards,
Kamesh

0 Sheng-yang Yu1 over 6 years ago in reply to Kamesh Lakhwani6

TI__Expert 4750 points

Hi Kamesh,

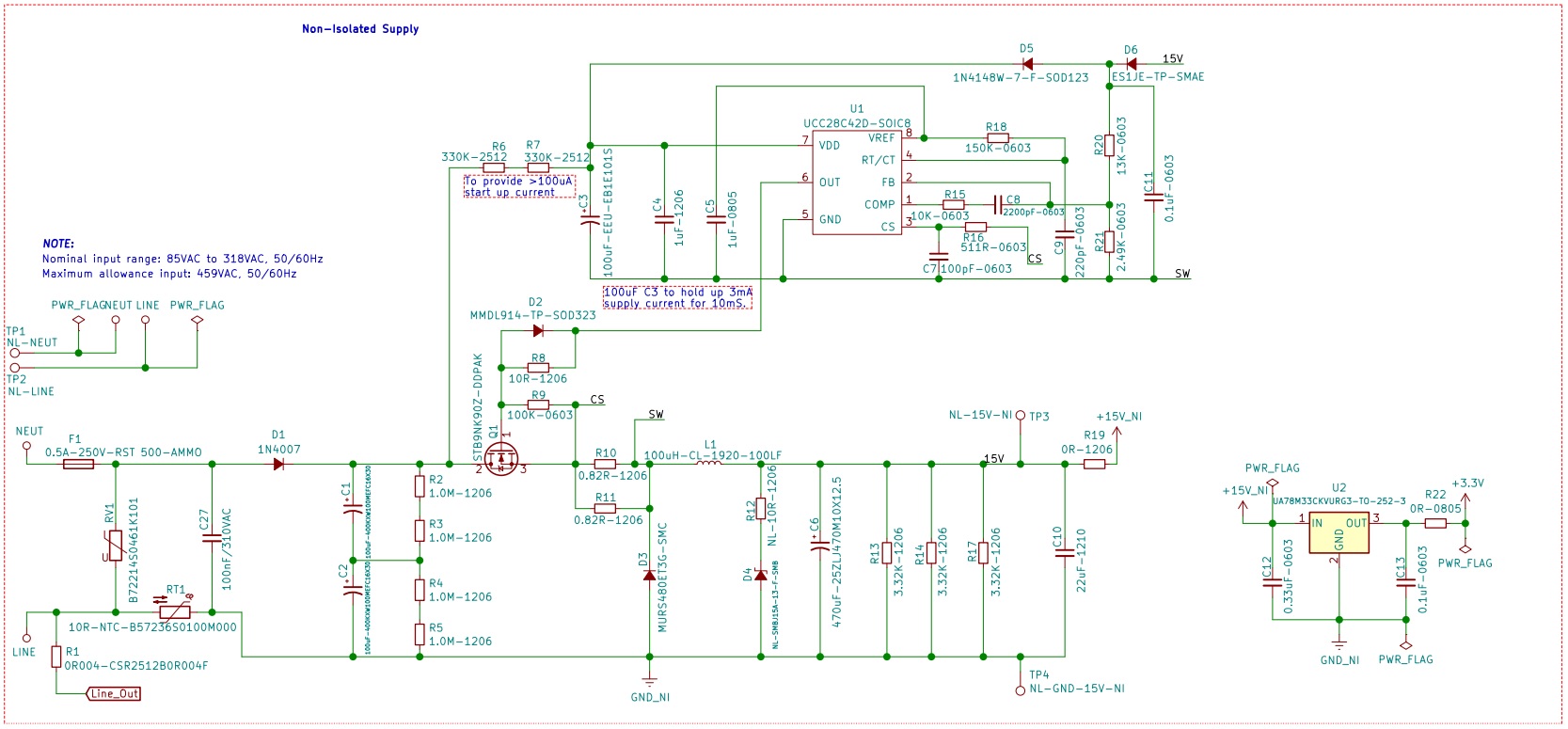

Sorry for my late response. The schematic looks identical with PMP10833 design. So it should be good.

Regards,

Sheng-Yang Yu
