WEBENCH® Tools/LDC1614: export to PCB question

Driscoll Tsai

Expert 1590 points

Part Number: LDC1614

Tool/software: WEBENCH® Design Tools

Hi Sir,

My design is 2 layers, but export to layout only one layer, pls help to check.

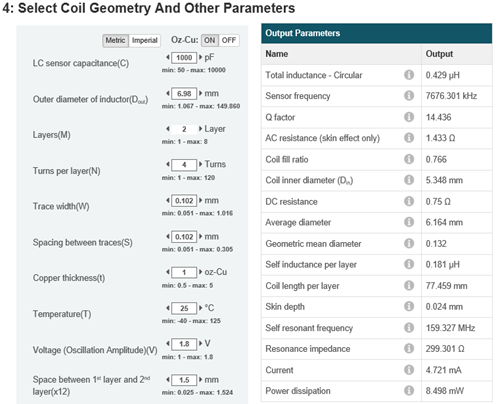

design parameters as below picture.

Dout6.98_DIn5.348_W0.1_S0.1_turn 4_A.PCB

Regards,

Driscoll

over 6 years ago

0 Atul_Kulkarni over 6 years ago

Genius 4910 points

Hi Driscoll,

We will get back to you on this query soon.

Thanks and Regards,

Atul

0 Atul_Kulkarni over 6 years ago

Genius 4910 points

Hi Driscoll,

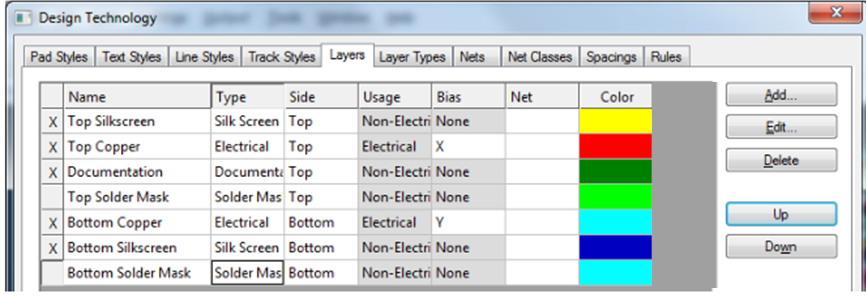

Please try assigning different colors to top and bottom copper layers and do not use black. We cannot see the layer if the back ground and that color assigned are same.

Settings--> Design Technology -->Layers

Please let us know if you still see the issue.

Thanks and Regards,

Atul

0 Driscoll Tsai over 6 years ago in reply to Atul_Kulkarni

Expert 1590 points

Hi Sir,

Thanks your remind. But I already setting correct.

No any trace on layer 2 after import asc file.

Regards,

Driscoll

0 Atul_Kulkarni over 6 years ago in reply to Driscoll Tsai

Genius 4910 points

Hi Driscoll,

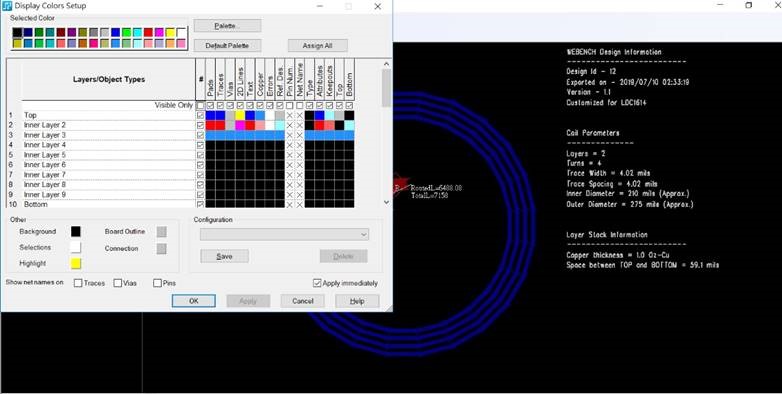

As we can see in customer settings, color is assigned for Inner Layer 2 and Inner Layer 3 .

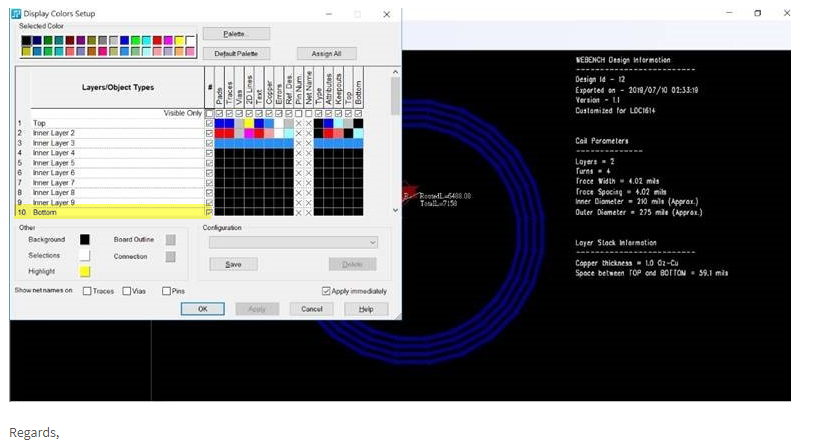

Please assign color for Bottom Layer.

Atul

0 Driscoll Tsai over 6 years ago in reply to Atul_Kulkarni

Expert 1590 points

Hi Sir,

You are right, Thanks for your support.

Regards,

Driscoll
