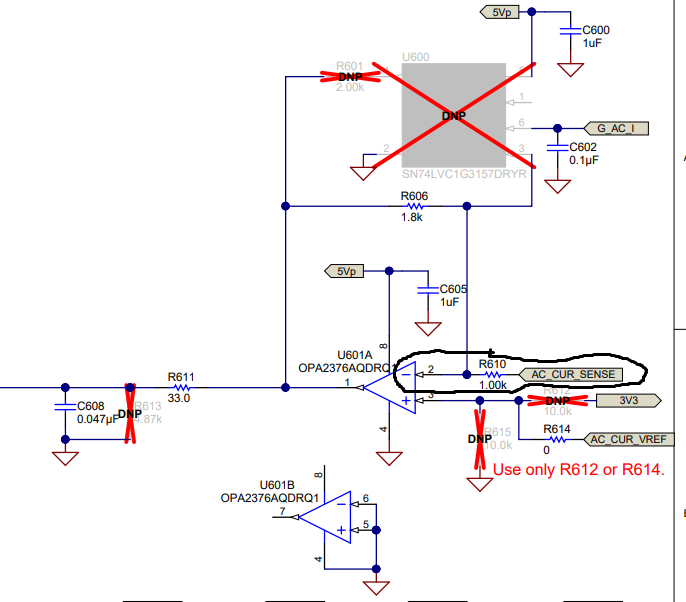

If you look at <Main.cfg> of CCS, there is a circuit diagram at the top.
If you look at this picture, Rfltr, Cfltr appear in 2 parts in total.
It looks like the picture below.
However, which part of the 1 or 2 displayed above is the value written in the Sesne Filter item of <Main.cfg>?
Hi, Xun
I can't understand the circuit of Op Amp.

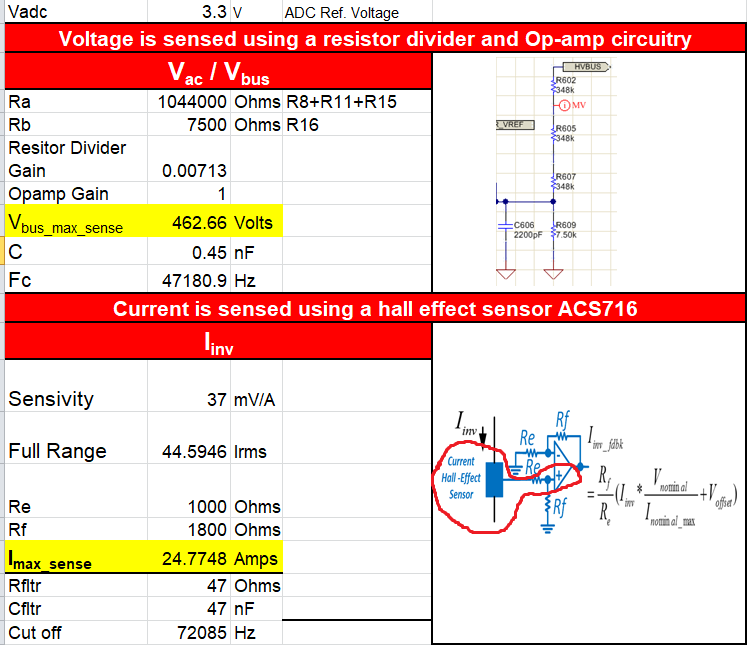

1. If you see <Calculationx.xlsx> of TIDA-01604, Current Hall-Effect Sensor will enter into +(pin.3) of Op amp.
However, if you look at the circuit diagram of TIDA-01604,
-You will be on the side.
You can see that the calculations and circuit diagram are reversed.
What is correct??
2. And if <Calculations.xlsx> is compared with the circuit diagram, it is impossible to know exactly what values of Re and Rf should be put in.
Please tell us your opinion.
