TIDA-00951: some of the PWM signals are not work

michael coletti

Part Number: TIDA-00951

Hi,

i am checking the firmware before i will modified it for my used , and i am menuall trigger the DSP circuit by apply to the adc's the right voltage.

when i am in the boost mode i dont see that the HV_PWM1/2 are triggerd at all even that i can see that one of them get the new compare value.

and why is the other HV_PWM is commented?

i am not sure if i need to see HV PWM, but im asumme that i am, can you please clear it for me?

Thank you

Michael

0 Max Wang1 over 5 years ago

Hi, the EE owner will be for a short delay due to biz travel

0 Desheng, Guo over 5 years ago

Hi, Michael

I see you have get two PWM , so what do you mean by "not triggered "?

the CMPB seems not been used here, it is an action trigger for the same PWM, not another new PWM module.

0 michael coletti over 5 years ago in reply to Desheng, Guo

Hi,

thank you for your answer,

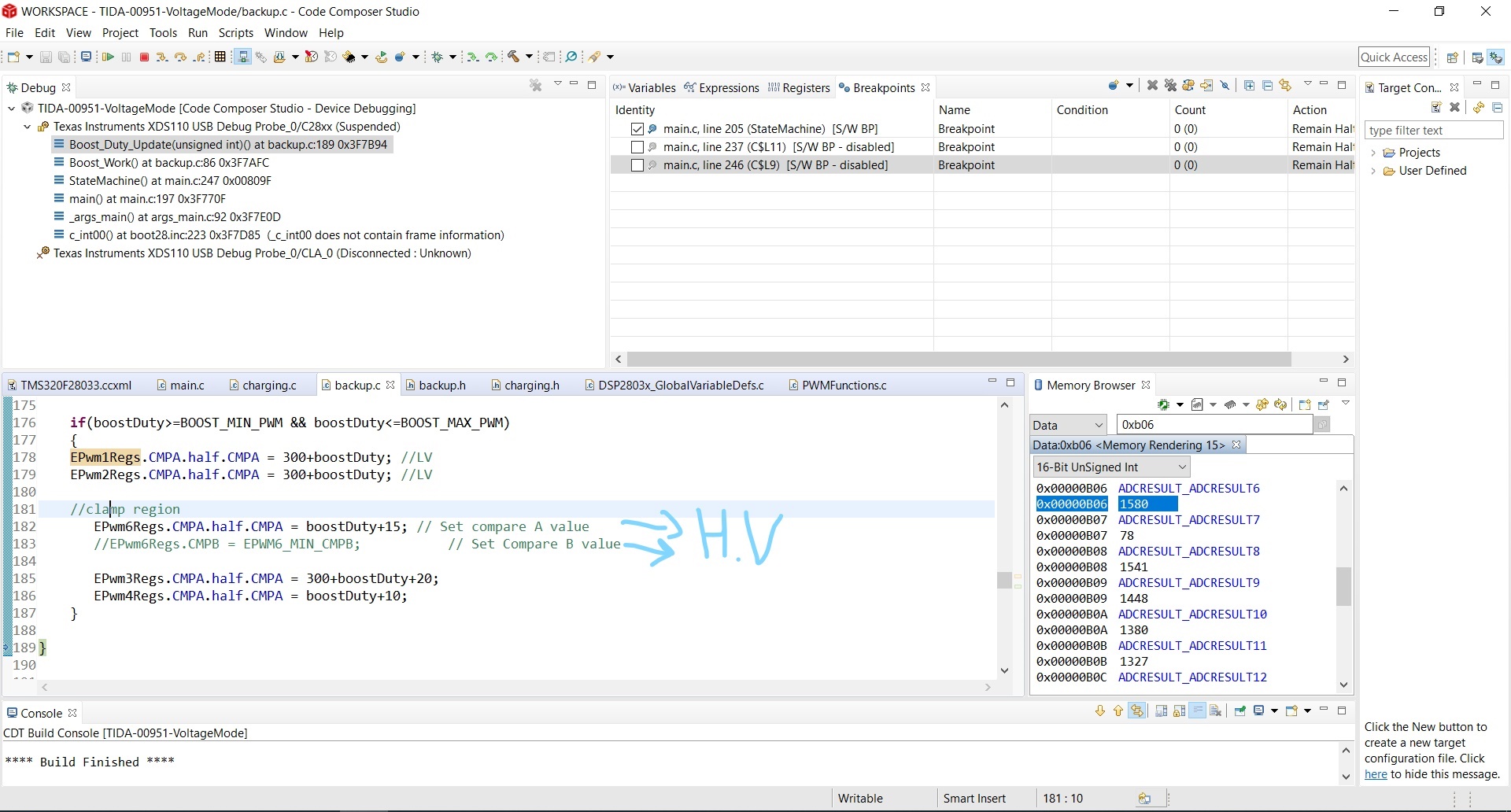

the photo was taken at Boost Mode.

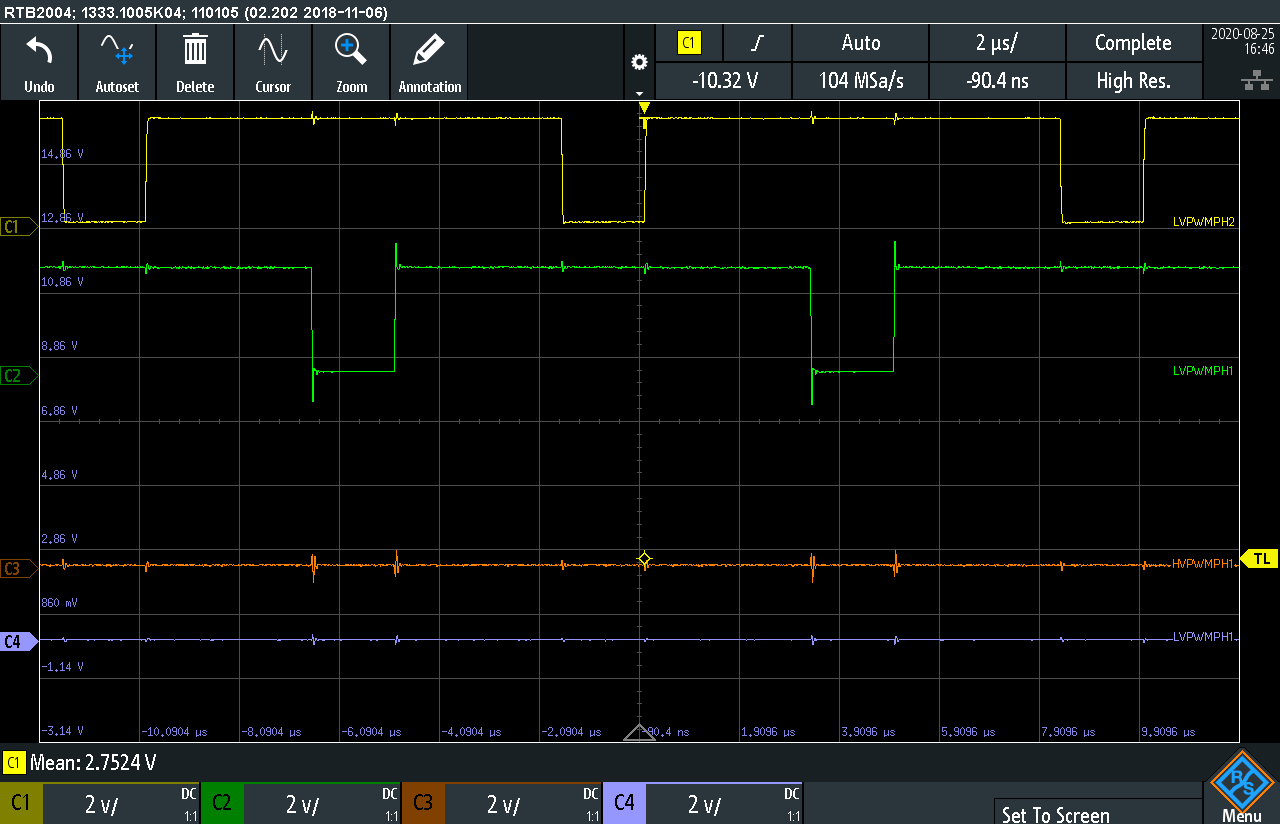

Only the LV PWM's are trigger - at the photo you can see them LV_PWM_PH1 and LV_PWM_PH2 while HV_PWM_PH1 and HV_PWM_PH2 are flat.

At boost mode HV_PWM_PH1 and HV_PWM_PH2 need to be active?

because they are not. and i am not sure if its ok.

again, thank you for your support

Best Regards

Michael

0 michael coletti over 5 years ago in reply to Desheng, Guo

hi,

sorry i didn't understood the design,

you can close this thread.

thank you,

Michael

0 Desheng, Guo over 5 years ago in reply to michael coletti

Hi, Michael

I didn't do this code, and can not help too much with coding.

You may modify the code with your understanding. Thanks.
