LP-EM-CC2340R5: Unable to flash a image to launch board using XDS110ET

Navami GS

Part Number: LP-EM-CC2340R5
Other Parts Discussed in Thread: CC2340R5, UNIFLASH

When i try to load a compiled image to launch board using XDS110ET, its giving me an error.

Error initializing emulator:
(Error -260 @ 0x0)
An attempt to connect to the XDS110 failed.
The cause may be one or more of: no XDS110 is connected, invalid
firmware update, invalid XDS110 serial number, or faulty USB
cable. The firmware and serial number may be updated using the
xdsdfu utility found in the .../ccs_base/common/uscif/xds110
directory of your installation. View the XDS110SupportReadMe.pdf
file there for instructions.
(Emulation package 12.6.0.00029)

over 1 year ago

0 Ryan Brown1 over 1 year ago

TI__Guru**** 217467 points

Hi Navami,

Since this issue involves a connections/communication issue between the XDS110 and your computer, here are some troubleshooting guides which may give you greater insight:

https://software-dl.ti.com/ccs/esd/documents/ccs_debugging_jtag_connectivity_issues.html#host-connection-error
https://software-dl.ti.com/ccs/esd/documents/xdsdebugprobes/emu_xds110.html#troubleshooting

Regards,
Ryan

0 Navami GS over 1 year ago in reply to Ryan Brown1

Prodigy 180 points

Thanks for the reply.

This is the board connection im using. As you suggested i tried to update firmware & serial number to XDS110 through command line, but there I'm getting this error

so i tried to upload firmware for XDS110 by removing evaluation(cc2340R5) board.

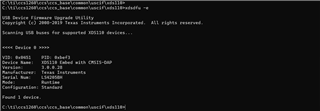

then im getting response for this xdsdfu -e

So my assumption is evaluation board is not responding. please help me to resolve this.

0 Ryan Brown1 over 1 year ago in reply to Navami GS

TI__Guru**** 217467 points

Unless I am mistaken, it appears that you have a Rev A LaunchPad connected (discontinued May 2023). This has pre-production CC2340R5 devices populated which are no longer supported by the released SDK and tools. This hardware should be replaced in order to continue.

Regards,
Ryan

0 Navami GS over 1 year ago in reply to Ryan Brown1

Prodigy 180 points

Hi Ryan.

Thanks for the information.

Actually, the board has been passed to us by TI.

0 Ryan Brown1 over 1 year ago in reply to Navami GS

TI__Guru**** 217467 points

You can check the physical CC2340 device markings to confirm whether this is pre-production silicon, and if a XDS110 connection were possible then you would also be able to check the device revision with Uniflash. Ultimately you should get in contact with your provider from TI for a replacement. You can reference this thread during your communication with them.

Regards,
Ryan
