CC2340R5: Drive LED from CC2340R5 High-Drive Pins

Hi Patrick,

High-drives pins have a max current of 10mA and standard drive is 2mA. Unfortunately, battery monitor current consumption is not available, but if you are interested see this thread: e2e.ti.com/.../cc2340r5-about-the-power-consumption-of-the-battery-monitor-function

As for the LED, consider using other colors with a lower Vfd or use a FET to drive the blue LED because driving the blue LED with a GPIO pin is might not be reliable depending on your current draw. You can also consider resistor to limit current and guarantee the voltage will stay above 3.1V.

Best regards,

Bun

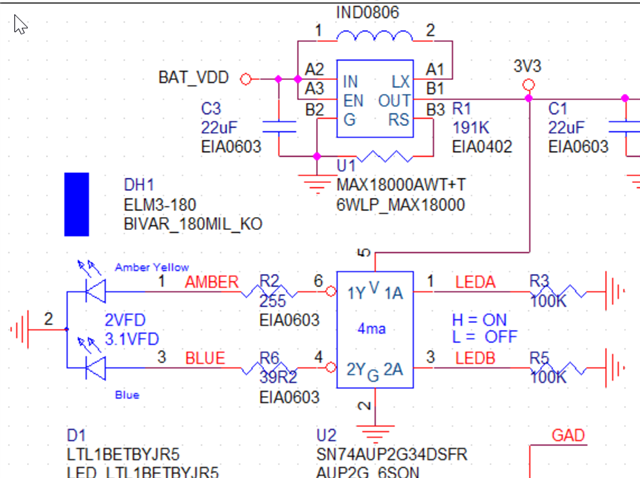

Hi Bun, I need 4ma for the LED (must be blue (3.1VFD) as it is a Bluetooth remote).

It also says I/O can be as high as 3.8V so 3.3V-3.8V (set with R1) on high drive pins should be OK, right?

To save a part, I could use high-drive pin with pull-up, I Could get as much as 10ma as confirmed above on high-drive pins.

IF NOT: I could use a low power SN74AUP2G34DSFR, but want to avoid quiescent current of this part if not needed. - Patrick

I see in 8.19.4 GPIO that the high drive pins are min 2.466V @ 10ma.

But if I use open drain config at 3V3, the pin with 40 Ohm for Blue (Vfd 3.1V) should allow 4ma when open drain is high.

Patrick
