CC2340R5: BLE OAD Throughput

Mike Wu1

Expert 2841 points

Part Number: CC2340R5

Tool/software:

Hi Team,

My customer want to know and try to fine-tune the BLE OAD throughput of CC2340.

(SDK Version:9_11_00_18)

test range : <50cm

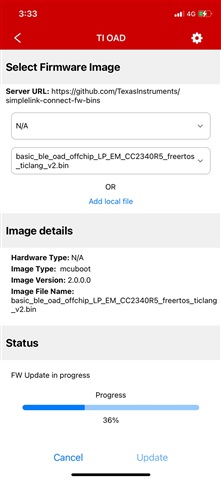

test method: CC2340R5 EVM <-> Smart phone, send 500KB binary from smart phone to CC2340R5 EVM

test time: it cost 118 second (34Kbps)

PS: PHY: 2M, PDU size :251bytes,

They also try to use two CC2340R5 EVM to run OAD, but it still cost the same time.

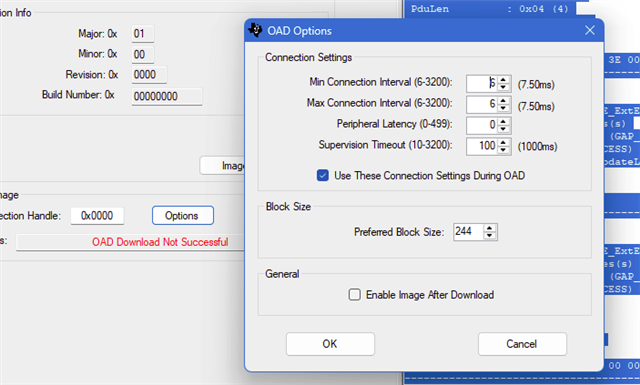

The following is the connection setting at BTOOL:

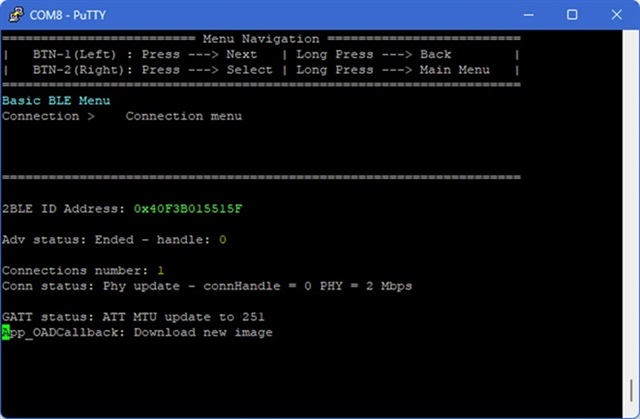

The following is the btool log:

Please help to provide comments for us to know the BLE OAD throughput of CC2340 and it can be fine-tune.

If yes, please let us know how to fine-tune it.

Thanks.

0 David 1 month ago

Hello Mike,

Thanks for reaching out. These are some of the main options to increase the speed of the OAD process:

Increase the baud-rate of btool and host-test (requires modification and re-compiling of the host-test project)
Select the highest possible packet length (MTU size) to avoid header overhead, see SimpleLink Academy: Bluetooth Low Energy Enhanced Over the Air Download (OAD) Advanced
Ensure the fastest possible connection interval is set to 7.5 ms.
Ensure the PHY is set to 2Mbps.

BR,

David.
