CC2640R2F: FCC TEST

규영 배

Part Number: CC2640R2F
Other Parts Discussed in Thread: CC2640

Hello, I am contacting you regarding an issue that arose during the FCC certification process.

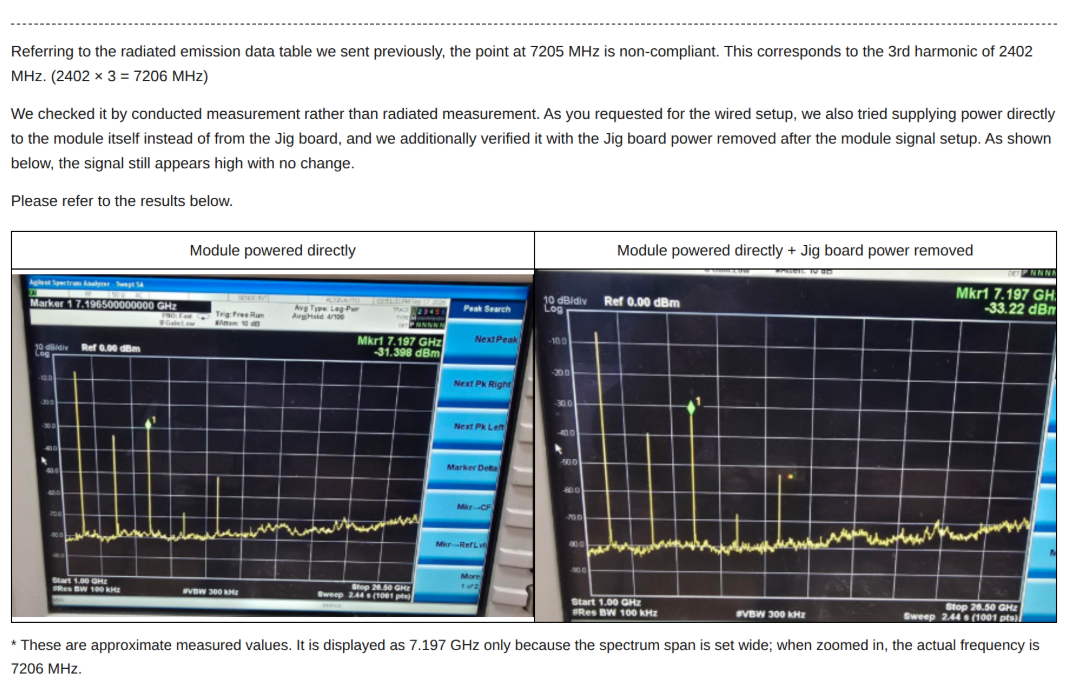

Please review the screenshot below and let me know if this can be resolved by adjusting the settings in Smart RF Studio.

5 days ago

0 RGW 5 days ago

TI__Mastermind 36170 points

Hi,

Indeed, around -30 dBm for the 3rd harmonic is too high.

Can you post your schematic ?

0 규영 배 4 days ago in reply to RGW

Prodigy 190 points

This is a partial circuit diagram for the antenna section. Currently, the component at L46 is not installed.

0 RGW 4 days ago in reply to 규영 배

TI__Mastermind 36170 points

Hi,

Need to see the complete RF passive filtering from the CC2640 to the antenna otherwise it is difficult to help find the root cause.

0 규영 배 1 day ago in reply to RGW

Prodigy 190 points

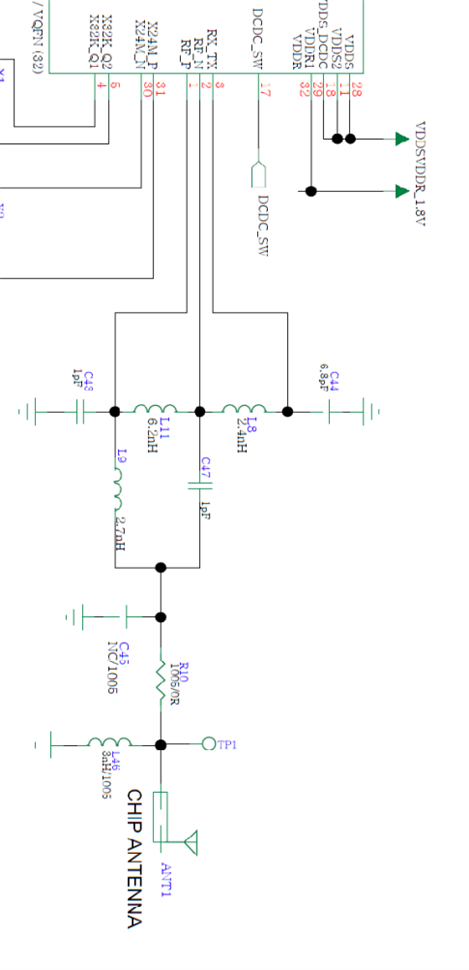

I have attached the antenna circuit diagram.

+1 RGW 20 hours ago in reply to 규영 배

TI__Mastermind 36170 points

Hi,

You are missing the low-pass filtering section on your design which is the reason you are seeing a high harmonic.

The CC2640 RF passive filtering normally consists of a balun network and a low-pass filter. You have the balun section but are missing the low-pass filtering.

The low pass filtering should look like:
