CC2541 debug interface

Harald Schnell

Other Parts Discussed in Thread: CC2541

I have to get access to the 8051 core through the debug interface of the CC2541 in order to program the flash memory (upload and execute my own code on tzhe device).

Where can I find the respective documentation about the 2-wire debug interface (debug clock & data) and the required commands to program (erase/program/verify) the flash memory.

over 11 years ago

0 Daniel Badawi over 11 years ago

Prodigy 185 points

just take a look at this

http://www.ti.com/lit/ug/swru197f/swru197f.pdf

0 Harald Schnell over 11 years ago in reply to Daniel Badawi

Prodigy 60 points

Thanks for this hint, but I cannot use the CC debugger.

I have to use our own programming tool. Therefore I need to know how to send and receive the data over the two-wire debug interface and which commands are available to upload code to the 8051 core and execute it.

May be I can use a already existing flash library in order to erase/program/verify the flash memory?

Or do I have to develop my own flash routines?

0 hec over 11 years ago in reply to Harald Schnell

TI__Genius 10955 points

AN118 (http://www.ti.com/litv/pdf/swra410) contains an example for flash programming from an external microcontroller. You should be able to use this as a basis for your development.

0 Harald Schnell over 11 years ago in reply to hec

Prodigy 60 points

Thank you, think this will bring me some steps forward!

0 Harald Schnell over 11 years ago in reply to hec

Prodigy 60 points

Hello,

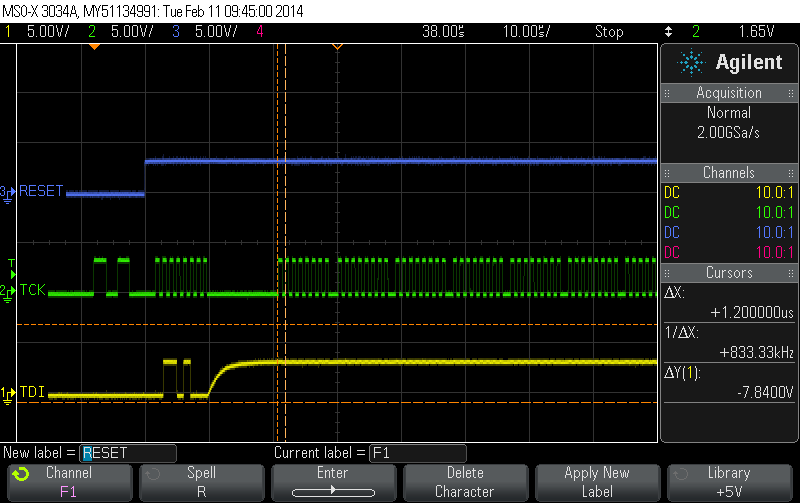

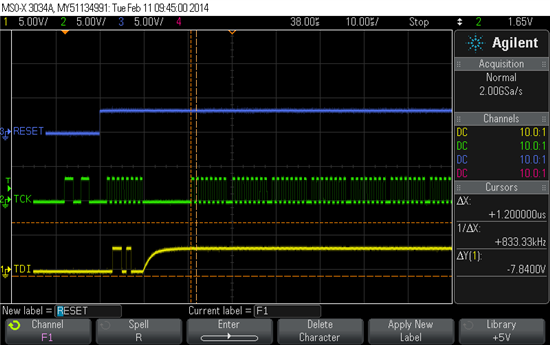

I have now connected my programmer to DD, DC and RESET_N. The signaling is similar to what described

in the documents. Aftre releasing the RESET I try to read the device ID but the CC2541 does not respond, the DD line stays always high. As in the example code I'm clocking up to 16 times 8-clock groups - but the DD line never goes low. The timings (setup, hold) are checked and are set to uncritical values. I send two negative clock edges while the RESET_N is low.

What can prevent the device fro entering the debug mode?

0 Fredrik K over 11 years ago in reply to Harald Schnell

TI__Guru** 106705 points

Hi Harald,

I understand that you need to work with your own programming tool, but do you have access to a CCDebugger just to check if that works? This would tell us if the problem is on the chip- or the programmer-side.

What CC2541 hardware are you working on?

Cheers,

Fredrik

0 Harald Schnell over 11 years ago in reply to Fredrik K

Prodigy 60 points

Hi Frederik,

I have a customer board with a CC2541Q1F256. The debug signals are routed to a debug connector. The customer has already prorammed the device thrugh this interface - may be with CCDebugger, but I don't know.
At the respective pins I made the connection to my programmer. I also verified the signal levels at the MCU pins RESET_N, P2_1 (TDI), P2_2 (TCK). I also verified the Vcc voltage - its 3.3V.

Do you have any idea what can go wrong here?

0 TIABO over 11 years ago in reply to Harald Schnell

TI__Genius 12900 points

Hi Harald,

The figure doesn't say, but try to make sure you transition RESET_N high-to-low not too long before clocking two negative flanks on debug clock. If you hold RESET_N low for too long before clocking the two flanks, you may not enter debug mode.

Br,
TIABO

0 Harald Schnell over 11 years ago in reply to TIABO

Prodigy 60 points

Hi TIABO,

that was my problem.. Now it works fine.

Thank you!

Regards

Harald
