CC2541 with Chip Antenna 2450AT42A100

Lao Hu

Other Parts Discussed in Thread: CC2541

Hello,

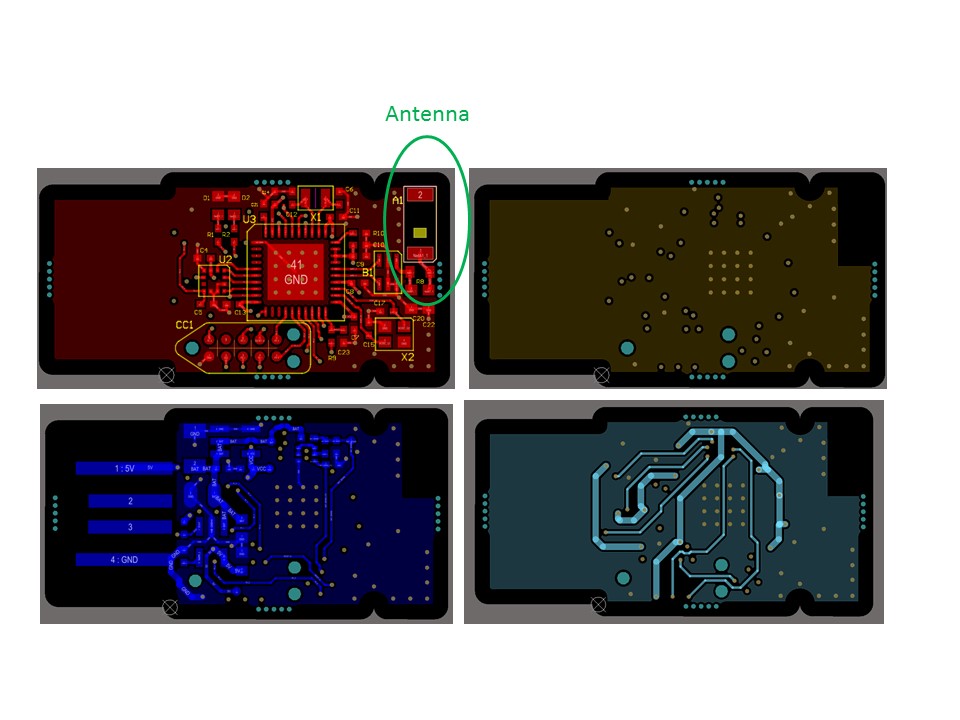

I'm trying to assembly the attached board using the CC2541 and the chip antenna with the Matched Balun 2450BM15A0002.

I think the free area in the antenna is too small and could affect the performance. However, this could eliminate the communication at all?

Thanks for any suggestion,

0 Fredrik K over 11 years ago

Hi JC,

Yes, the layout of the antenna does not look correct. You can verify how it should be in the antenna datasheet.

This will reduce the range, but it should not eliminate communication completely.

Cheers,
Fredrik

0 Lao Hu over 11 years ago in reply to Fredrik K

Thanks for your feedback Fredik
