Dear TI Folks,

May i check with you do you guys have any additional information such as test report or profile on power consumption for CC2543 application? My customer is especially interested in the "TI broadcaster reference design with iBeacon technology, CC2543-BROADCASTER-RD" power consumption.

Regards,

Weiren

over 10 years ago

0 Eirik V over 10 years ago

TI__Guru 56590 points

Hello,

No we do not have this now, but the peak currents is found in the data sheet and the processing time is s bit shorter than that of the BLE stack running on CC2540/41. You can do some calculations based on the following material if you change the peak current values listed in the excel sheet:

http://www.ti.com/general/docs/litabsmultiplefilelist.tsp?literatureNumber=swra347a

0 Peder over 10 years ago in reply to Eirik V

TI__Expert 6995 points

Measurement Key Data

§25 Byte broadcast data

§Coin cell battery

§CR2032, 260mAh

§Hardware

§CC2541EM

§CC2543EM

§CC2541Keyfob (DCDC)

0 Weiren Tee over 10 years ago in reply to Peder

Expert 1100 points

Hi Eirik,

thanks for the information. It is very useful for me to use to discuss with my customer.

Hi Peder,

Thanks for the data, by the way, could you inform what does the X-axis and Y-axis represent in the graph shown?

Regards,

Weiren

0 Eirik V over 10 years ago in reply to Weiren Tee

TI__Guru 56590 points

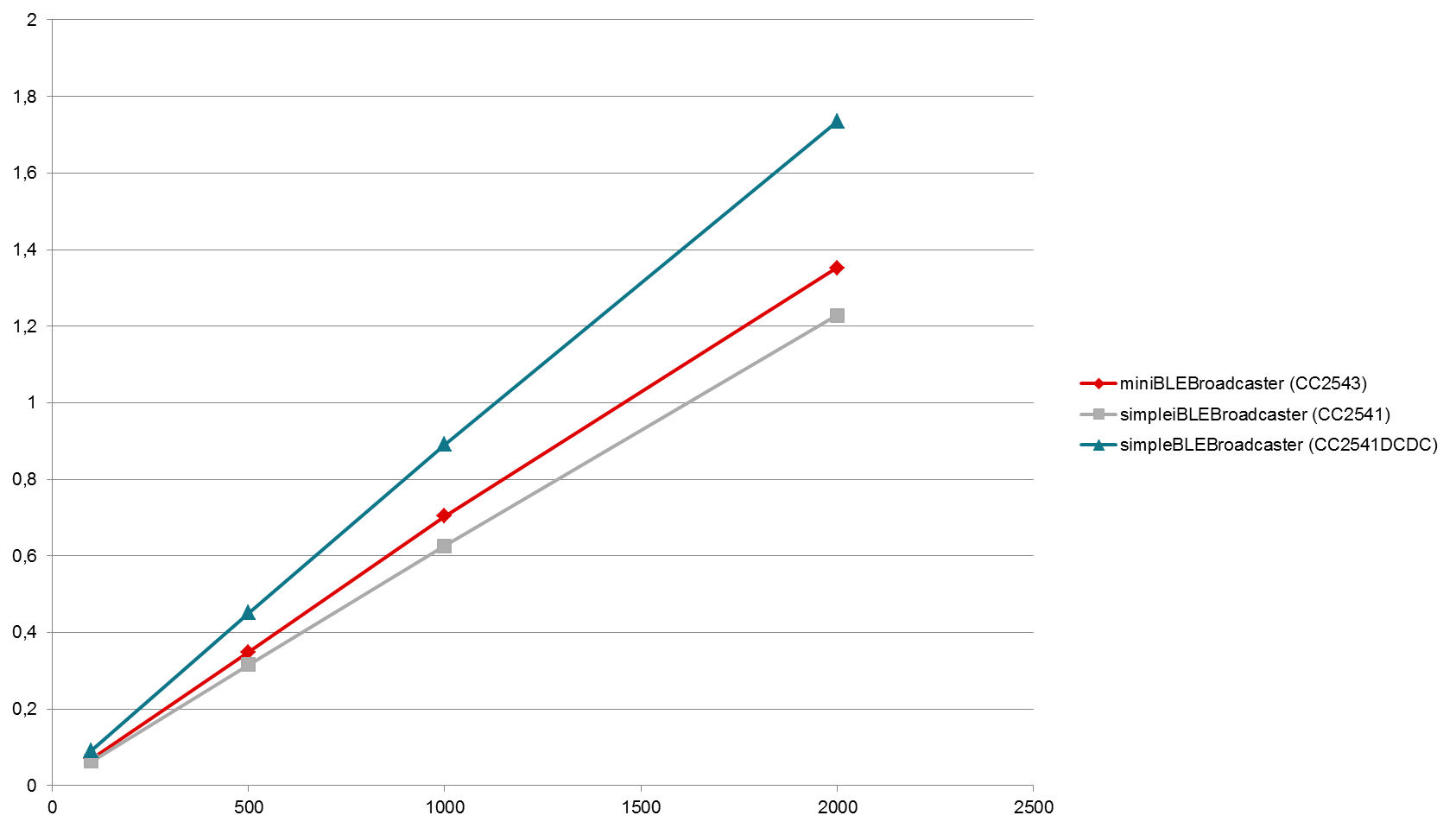

I think the x-axis is advertisement interval in ms and the y-axis life time in years. Please note that this is a simple theoretical calculations and that life time vary with configuration and quality of the battery used.

0 Weiren Tee over 10 years ago in reply to Eirik V

Expert 1100 points

Hi Eirik,

Thank you once again for answering my question. Have a nice day :)

Regards,

Weiren

0 Weiren Tee over 10 years ago in reply to Eirik V

Expert 1100 points

Hi Eirik and Peder,

Sorry, may I know what is the TX power set for the tests shown in the graph?

Regards,

Weiren

0 Eirik V over 10 years ago in reply to Weiren Tee

TI__Guru 56590 points

0 dBm

0 LLouis over 9 years ago in reply to Eirik V

TI__Expert 3515 points

Hi Eirik V,

As it's same topic regarding my customer questions, so I get here , Or kindly suggest me and I'll setup a new thread on this:

The CC2543 broadcast design have three periodic task, so does the other task (CAL, and DAQ) don't impact much on the power consumption? (The is the TX & RX is the majority and we ignore the other task consumption). Am I right?

Thanks and appreciate your comments!

0 Eirik V over 9 years ago in reply to LLouis

TI__Guru 56590 points

Hello Louis,
The DAQ can be disabled. The CAL task will consume significant amount of energy if it is scheduled often, but the TX active current is the major contributor to the overall current consumption. The entire code can be rewritten as well to optimize and tailor to specific needs by reusing some of the lower layers (miniBLE_phy.c) and writing a custom scheduler and application on top. This was written mainly to target easy-of-use with a simple API on top.

The calibration routine can take up to around 4-5 ms to complete:
CC254x_START_32KHZRC_CALIBRATION(XTAL_GUARD_TIME);

0 Eirik V over 9 years ago in reply to Eirik V

TI__Guru 56590 points

For correction to my answer please read section 5.3.2 Calibration of System Clock in the Mini Bluetooth Low Energy Broadcaster Design Guide (www.ti.com/.../tidu550.pdf).
