Debugging CC2540

francisco martinez2

Prodigy 40 points

Other Parts Discussed in Thread: CC2540, CC2541

Dear,

I need to know what is the correct layout of pins for then debugging CC2540.

Thanks,

Francisco

over 9 years ago

0 JXS over 9 years ago

TI__Guru** 105180 points

Hello Francisco,

Please refer to the "Debug Interface" chapter of the CC254x UG (SWRU191). This section will describe the required debug pins and their respective use.

Best wishes

0 francisco martinez2 over 9 years ago in reply to JXS

Prodigy 40 points

Keyfob o Dongle?

0 YiKai Chen over 9 years ago

Guru 735685 points

You can try to refer to Cc2541 keyfob schematics at www.ti.com/.../tidr191.pdf

0 francisco martinez2 over 9 years ago in reply to JXS

Prodigy 40 points

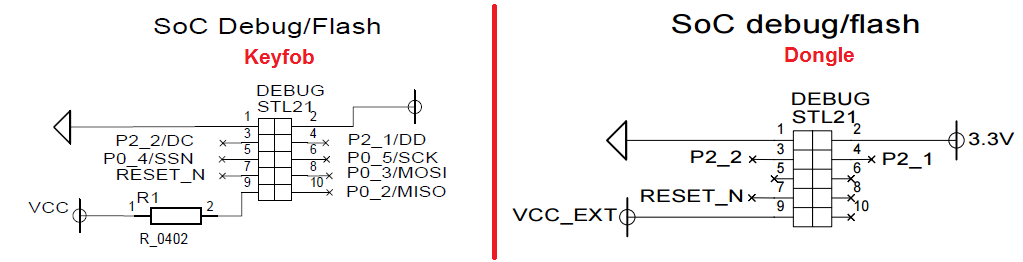

left or right...? it's all

0 YiKai Chen over 9 years ago in reply to francisco martinez2

Guru 735685 points

Right (dongle) is good enough for debug.

0 francisco martinez2 over 9 years ago in reply to YiKai Chen

Prodigy 40 points

And why in the other configuration using the more pins (P0_2, P0_3, P0_4, P0_5)?
Thanks

0 YiKai Chen over 9 years ago in reply to francisco martinez2

Guru 735685 points

Those SPI pin connections are for SmartRF Packet Sniffer. You can refer to section 6.2.3 Minimum Connection for SmartRF Packet Sniffer in CC Debugger user guide.
