CC2640: CC2640 4x4 can't load app

liang zhou65

Hi,

the voltages of the powering up is following: there is no defferences according to theoretical values;

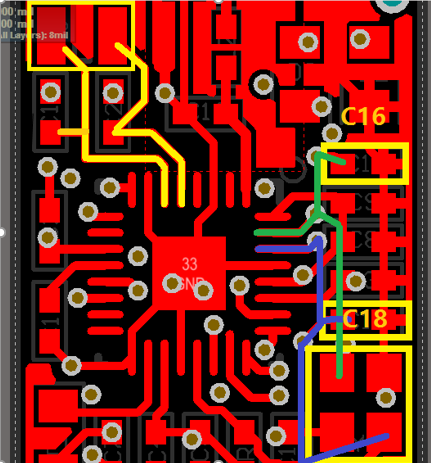

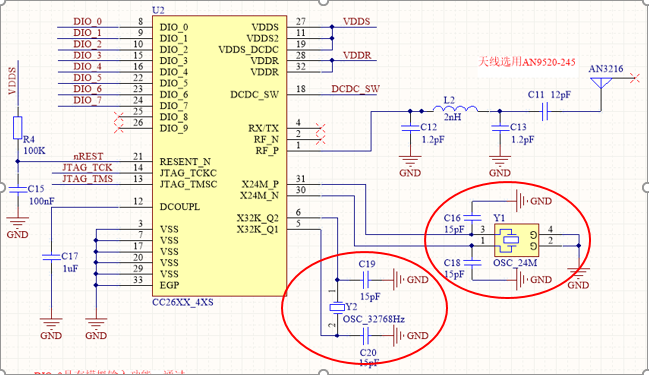

I think there may be something wrong with my crystals ,Y1（32768Hz,two pads）,Y2(24MHz, four pads),both of them have two 15PF starting capacitors,the location and routing is just like below:

Could you please give me any advice?

liang

over 8 years ago

0 A. Rebel over 8 years ago

TI__Genius 11740 points

Hi Liang,

I recommend looking at the http://www.ti.com/ble-wiki particularly under the section 'Design Resources'

There's a HW checklist with some other material to check.

Regards,
Rebel

0 Fredrik K over 8 years ago in reply to A. Rebel

TI__Guru** 106705 points

Hi Liang,

You should not have load capacitors on the 24 MHz crystal. There are also other HW issues with your design, you should follow Rebel´advice on going through the HW collateral on the wiki.

Cheers,
Fredrik
