CC2541: CC Debugger cannot recognize CC2541 chip

Rohan Doshi

Part Number: CC2541
Other Parts Discussed in Thread: CC-DEBUGGER

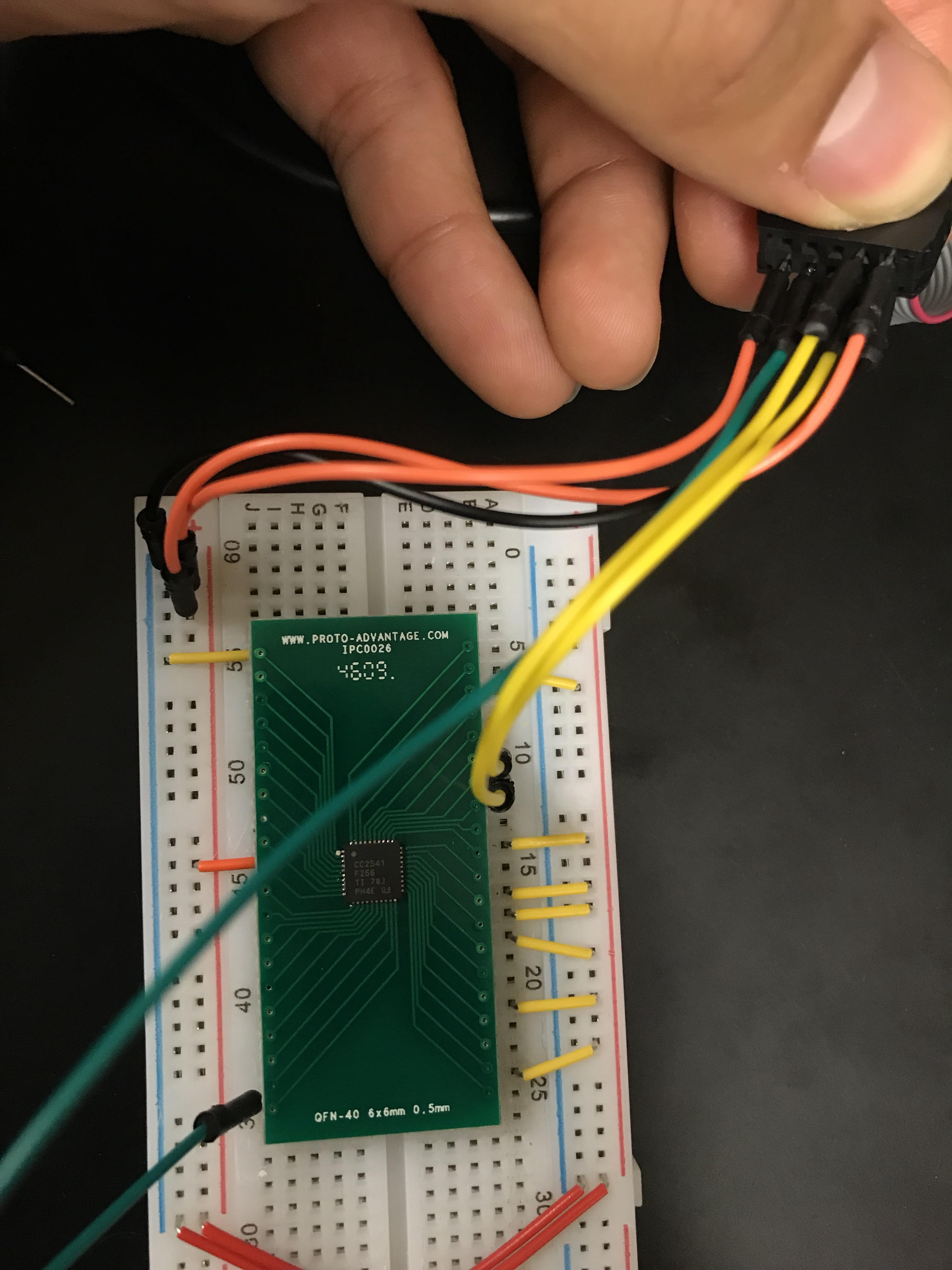

I am trying to program a CC2541 chip using the CC-DEBUGGER. When I open SmartRF Studio it lists the CC Debugger as a connected device but says that there is no chip detected. The LED on the debugger is also red. I have the CC2541 connected to a SMT to DIP converter, and I have this plugged into a breadboard. I connected the CC-Debugger lines to the breadboard according to section 6.2.1 in the CC-Debugger data sheet. I have attached pictures of the setup.(the red wires on the bottom are cutoff but they connect power to power and ground to ground they just cross out of frame). I have used a multi meter to verify that there is 3.3V supplied to the chip. of our setup.

over 7 years ago

0 Kimi Hu over 7 years ago

Mastermind 6125 points

Hi Rohan Doshi,

Do you supply 3.3V to CC2541 by CC debug? If yes, you need connect pin-2 and pin-9 on cc-debugger

0 Fredrik K over 7 years ago in reply to Kimi Hu

TI__Guru** 106705 points

Hi Rohan,

You cannot run the CC2541 on a break-out board like that. For proper operation you need decoupling capacitors and also the Rbias resistor. If you want to run the radio you also need a 32 MHz crystal as well as RF matching components. Good grounding is also required for good performance.

Cheers,
Fredrik

0 Rohan Doshi over 7 years ago in reply to Fredrik K

Prodigy 20 points

Hi Frank,

Thank you so much! I put in all the components you mentioned basing the values off of this design: http://www.ti.com/lit/ug/snoa922/snoa922.pdf. I also put in the filtering cap/resistor for the Reset_n signal.The LED on the debugger was green and the device was recognized in SmartRF Studio.

Best,

Rohan
