RTOS/CC2640R2F: OAD reset error while downloading image

lakshmikanth satyavolu

Expert 1680 points

Part Number: CC2640R2F

Tool/software: TI-RTOS

Hi All,

I am trying to upgrade firmware on my custom board using OAD Onchip.

while transferring oad image, it hangs up at OAD Reset.

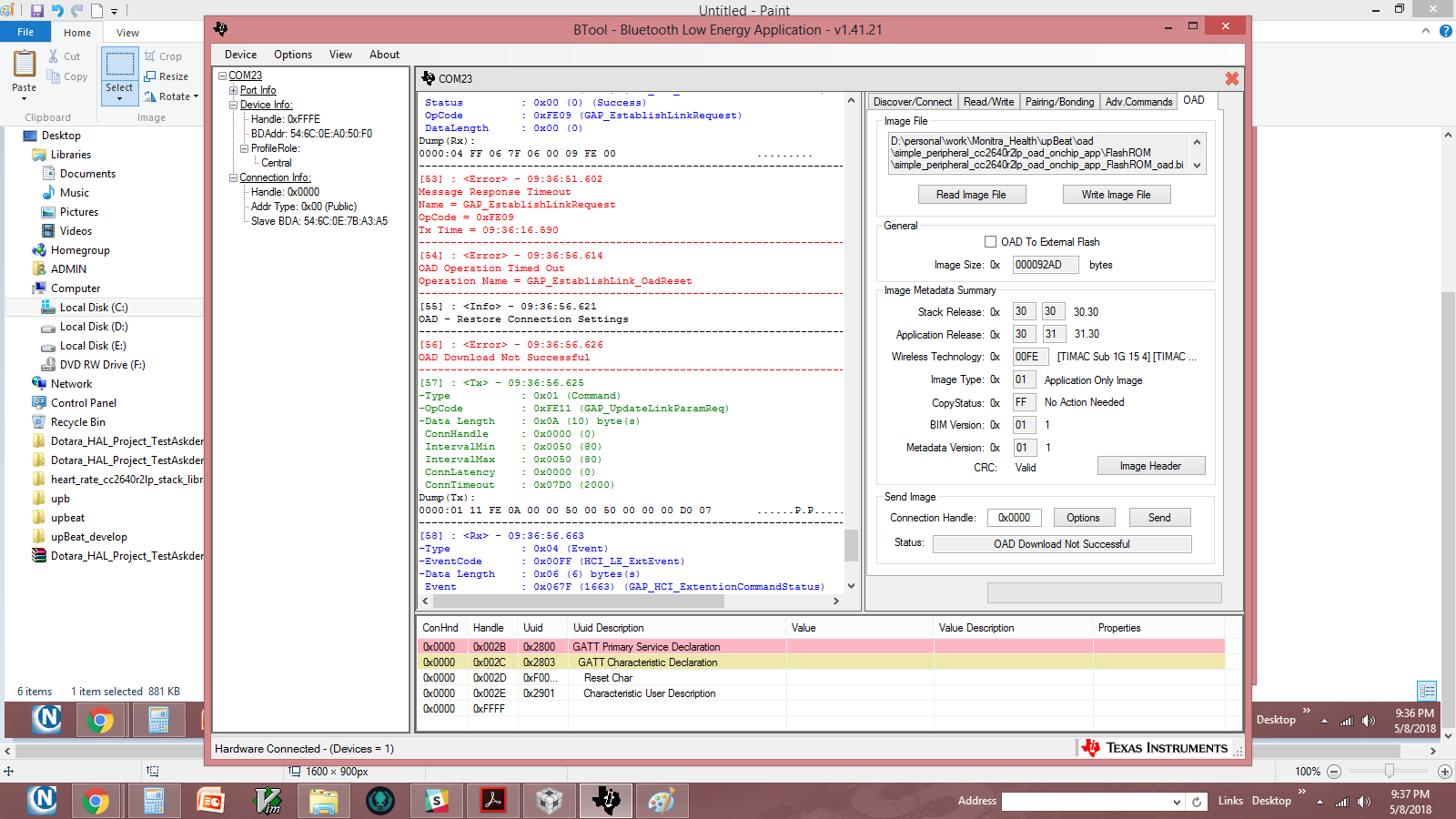

I have attached Launchpad Btool screenshot.

Please guide me, where I am going wrong. It is bit critical for my project. Any help will be highly appreciated.

Regards

Lakshmikanth

over 7 years ago

0 RachelP over 7 years ago

TI__Genius 12815 points

Hi Lakshmikanth,

Have you applied the fix for the known issues on the OAD User's Guide wiki page? processors.wiki.ti.com/.../CC2640_OAD_User's_Guide

You may be running into the "Device Does not restart after successful OAD" issue. Please apply the fix as specified by the wiki page. If that does not resolve the issue, please send a sniffer capture showing the full OAD.

0 lakshmikanth satyavolu over 7 years ago in reply to RachelP

Expert 1680 points

Hi Rachel,

Thanks for your response. I believe this hanging happens before even downloading the image. I captured sniffer log while attempting the OAD. BTool waits for establishing connection after initial OAD Reset and then hangs up.

PFA sniffer log for your reference.

Thanks for you help.

OAD_reset_Error.psd

Regards

Lakshmikanth

0 lakshmikanth satyavolu over 7 years ago in reply to lakshmikanth satyavolu

Expert 1680 points

Hi,

Can someone please look into this issue? It is very critical for my project

Regards

Lakshmikanth

0 lakshmikanth satyavolu over 7 years ago in reply to lakshmikanth satyavolu

Expert 1680 points

Hi,

I tried the fix mentioned in the link you have shared. Some of the steps mentioned are not clear to me.

Flash Programmer 2:

Run the above installer
Copy the contents of the emupack installer to <fp2_install_dir>/config/xds/* -->> I don't understand what they mean by contents of installer. I got .exe file from the link shared.

CCS:

Run the above installer
Follow the steps for Manual CCS installation on the above wiki page ->> This wiki page is not mentioned anywhere in the link provided.

Can you please make it clear what they are referring to?

Regards

Lakshmikanth

0 lakshmikanth satyavolu over 7 years ago in reply to lakshmikanth satyavolu

Expert 1680 points

Hi All,

I found OAD reset specific code was not ported properly onto my application. I have resolved this issue. Thanks for your help.
