CC2640R2F: flashing Error for cc2640

parth parth

Part Number: CC2640R2F
Other Parts Discussed in Thread: CC2640, , UNIFLASH

I have the customize board for cc2640 and when flashing from JTAG which is on launchpad cc2640R2F it gives following error

Error connecting to the target:
(Error -242 @ 0x0)
A router subpath could not be accessed.
The board configuration file is probably incorrect.
(Emulation package 7.0.48.0)

over 7 years ago

0 YiKai Chen over 7 years ago

Guru 735685 points

This is usually caused by bad jTacg connection. I suggest you to check it first.

0 Marie H over 7 years ago

TI__Guru* 81531 points

Hi Parth,

Can you check the Hardware Checklist and troubleshooting wiki pages?
- processors.wiki.ti.com/.../CC26xx_HW_Checklist
- processors.wiki.ti.com/.../CC26xx_HW_Troubleshooting

0 parth parth over 7 years ago in reply to Marie H

Intellectual 680 points

HI ,

I am stuck i am still not able to flash the code with the JTAG

getting the same as mention above

Error connecting to the target:
(Error -242 @ 0x0)
A router subpath could not be accessed.
The board configuration file is probably incorrect.
(Emulation package 7.0.48.0)

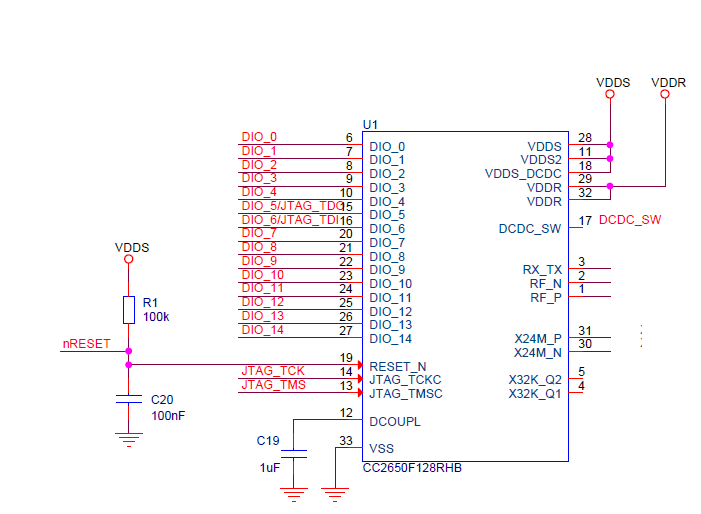

I have attached the schematic which i have made on my custom board and also the code which i am using code.zip

plz repy back

0 parth parth over 7 years ago in reply to parth parth

Intellectual 680 points

one more query
1. Do i need to connect external crystal 24Mhz to pin No 30-31
and also the DCDc_SW

0 Eirik V over 7 years ago in reply to parth parth

TI__Guru 56590 points

Hello Parth,
You need an external 24 MHz XTAL.
You can try to issue a forced mass erase from Flash Programmer 2 to check if you can get contact with your device without the external crystal, but you cannot do much with the device without it anyway.

0 parth parth over 7 years ago in reply to Eirik V

Intellectual 680 points

thanks for the reply about DcDC_SW pin no 17 is it necessary to short to vddr as recomended in the referenced design CC2650Em-5XD

0 Simon J over 7 years ago in reply to parth parth

TI__Genius 11810 points

Hello Parth,

If you are not using the DCDC converter and want to use the internal LDO instead, disconnect DCDC_SW and connect VDDS_DCDC to the
VDDS supply. The Global LDO is connected internally to the VDDR pin, which must be connected externally to the VDDR_RF pin.

-Simon

0 parth parth over 7 years ago in reply to Simon J

Intellectual 680 points

hi ,
I bought 24 MHz and connected but still i am getting the same error

Error connecting to the target:
(Error -242 @ 0x0)
A router subpath could not be accessed.
The board configuration file is probably incorrect.
(Emulation package 7.0.48.0)

0 Simon J over 7 years ago in reply to parth parth

TI__Genius 11810 points

Hello Parth,

How are you supplying VDDR?

-Simon

0 parth parth over 7 years ago in reply to Simon J

Intellectual 680 points

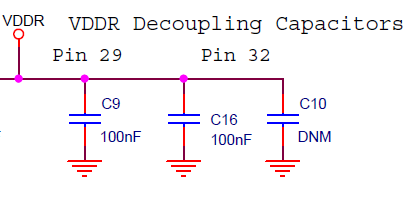

I have short both 29 and 32 pin and connected as per the image

0 parth parth over 7 years ago in reply to parth parth

Intellectual 680 points

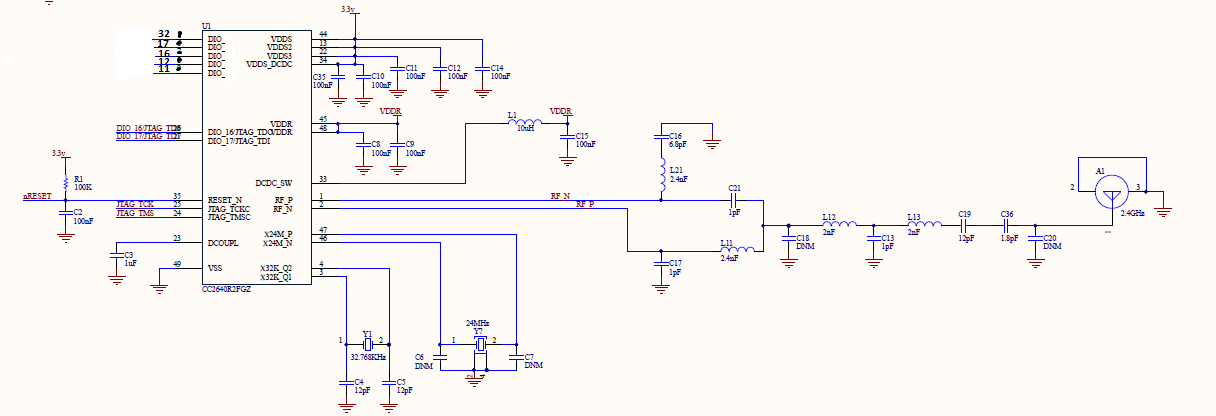

As a base i am refering the data sheet page no 41 Internal LDO Regulator schematic and as well as CC2650Em-5XD as the IC cc2640 5mmX5mm

0 Simon J over 7 years ago in reply to parth parth

TI__Genius 11810 points

Hi Parth,

Can you share your full schematics here on E2E? Also, what debugger are you using, and how have you connected it to your custom board?

Thanks,
Simon

0 parth parth over 7 years ago in reply to Simon J

Intellectual 680 points

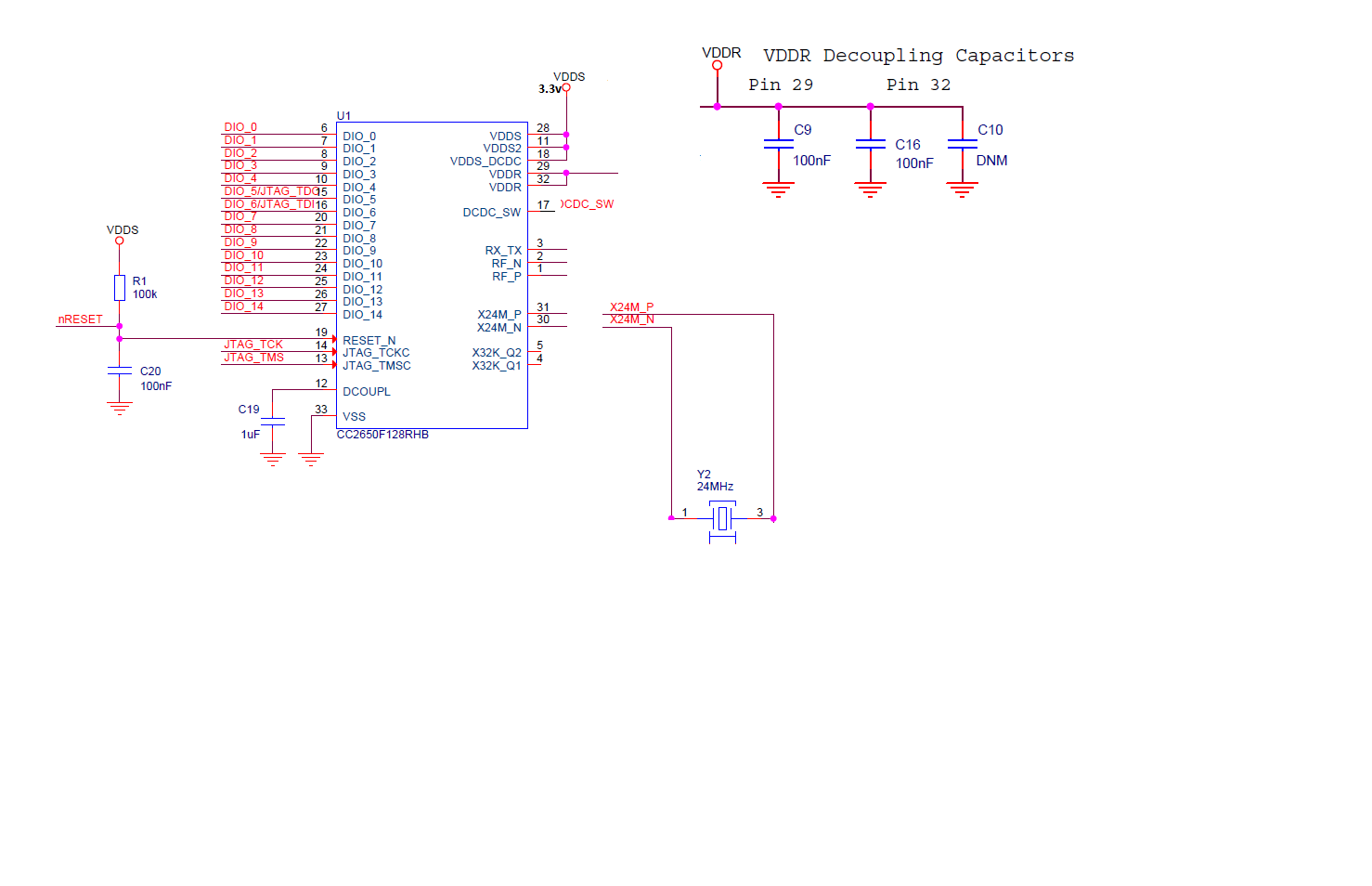

6523.code.zip hi please refer the attached schematic and i have cc2640 launch pad with me i am using debugger of it and connected to customer board with the following connection
