CCS/CC2650MODA: Unable to connect with cc2650moda when programing

user5767631

Part Number: CC2650MODA
Other Parts Discussed in Thread: CC2650

Tool/software: Code Composer Studio

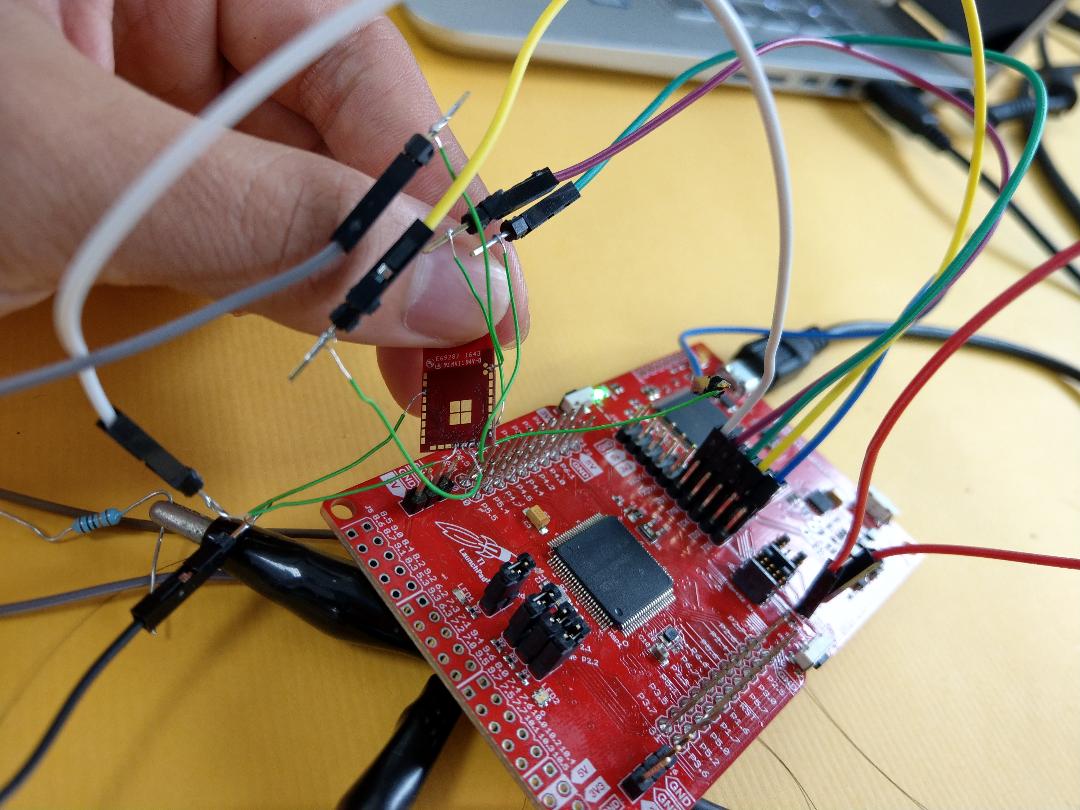

Hi, this is Edward, I want to program cc2650moda by using TI LanuchPad. However, it said that the debugger(Code Composer Studio) cannot detect the cc2650moda (error 242). I have already tried to program BOOSTXL-CC2650MA and it did work. Also I have tied 3v3,gnd,TDO,TDI,TCK,TMS,RST to the cc2650moda. I think these pins are enough to program cc2650moda, I have no idea why it can't work, can anyone help, appreciated.

over 8 years ago

0 YiKai Chen over 8 years ago

Guru 735695 points

This is usually caused by bad JTAG connection so I suggest you to check connection first. By the way, do you power CC2650MODA?

0 user5767631 over 8 years ago in reply to YiKai Chen

Prodigy 60 points

Hi, thank for your reply. I am pretty sure that I connect the JTAG well, and powered cc2650MODA, and I have tried the second cc2650MODA already, so I still struggling at thinking why it can't be detected.

0 YiKai Chen over 8 years ago in reply to user5767631

Guru 735695 points

It's recommended that the JTAG connection between XDS110 and CC2650 should be as short as possible otherwise it might cause instability.

0 user5767631 over 8 years ago in reply to YiKai Chen

Prodigy 60 points

Thanks, and I also want to ask that as my understanding, I only need power and TMS, TCK then I can program cc2650moda right? Or TDI and TDO are still needed?
If it is right, what will be the pattern look like if I ultra connect an oscilloscope with TMS?

0 YiKai Chen over 8 years ago in reply to user5767631

Guru 735695 points

If you use cJtag, you need to connect GND, TMS, TCK , and RESET. If you need to use JTAG, you also have to add TDI and TDO.

0 Fredrik K over 8 years ago

TI__Guru** 106705 points

Hi,

You need to add a pull-up resistor on the reset signal. See this application note for details: www.ti.com/.../swra534

Cheers,
Fredrik

0 Fredrik K over 8 years ago in reply to user5767631

TI__Guru** 106705 points

With the XDS110 (the debugger on the LaunchPad) the required signals are TCK, TMS and Reset.

0 user5767631 over 8 years ago in reply to Fredrik K

Prodigy 60 points

Thanks for your reply. However, I have already connected a resistor in the system, it still doesn't work.....
Also, I want to check that what is the pattern(TMS) looks like if I connect an oscilloscope, so I can make sure my signal is correct that cc2650moda can recognize it.

0 Fredrik K over 8 years ago in reply to user5767631

TI__Guru** 106705 points

I would start off by checking that the reset signal is properly pulled to VDD. You should also see the debugger reset the device when initiating a connection.
