CC2640R2F: CC2640R2F starts only after Board reset

AlexHome

Part Number: CC2640R2F
Other Parts Discussed in Thread: LAUNCHXL-CC2640R2,

Hello! I use CC2640R2F with my custom project connected to LAUNCHXL-CC2640R2

And CC2640R2F starts only with Board reset option of TI XDS110. With CPU reset and even when unconnected from LAUNCHXL-CC2640R2 my board did not starts. What can be source of problem?

over 6 years ago

0 TER over 6 years ago

TI__Guru**** 317180 points

To confirm: You are trying to run code on your custom board? And you use a Launchpad as debugger?

You are not stating which software you are running. If you test the empty example and the rfPacketTx example from the SDK, do you see the same issue then?

0 AlexHome over 6 years ago in reply to TER

Intellectual 990 points

Hello, TER! Yes i use Launchpad as debugger

The same problem with clear simple_proffile project

0 TER over 6 years ago in reply to AlexHome

TI__Guru**** 317180 points

And is it a custom board and have you tried the examples I suggested?

0 AlexHome over 6 years ago in reply to TER

Intellectual 990 points

No yet, TER, sorry! But I think that problem linked with next fact: after power connect supervisor (open drain) leave reset after 30ms and program does not start, but if then short Reset with GND and release it program starts... I use opendrain 30ms supervisor and 100kOhm + 0,1uF components. May be I need to change some what in ccfg.c?

0 TER over 6 years ago in reply to AlexHome

TI__Guru**** 317180 points

Please use a scope and monitor the reset line when you pull it low with the open drain output. It could be that you are not able to pull the node fully down.

0 AlexHome over 6 years ago in reply to TER

Intellectual 990 points

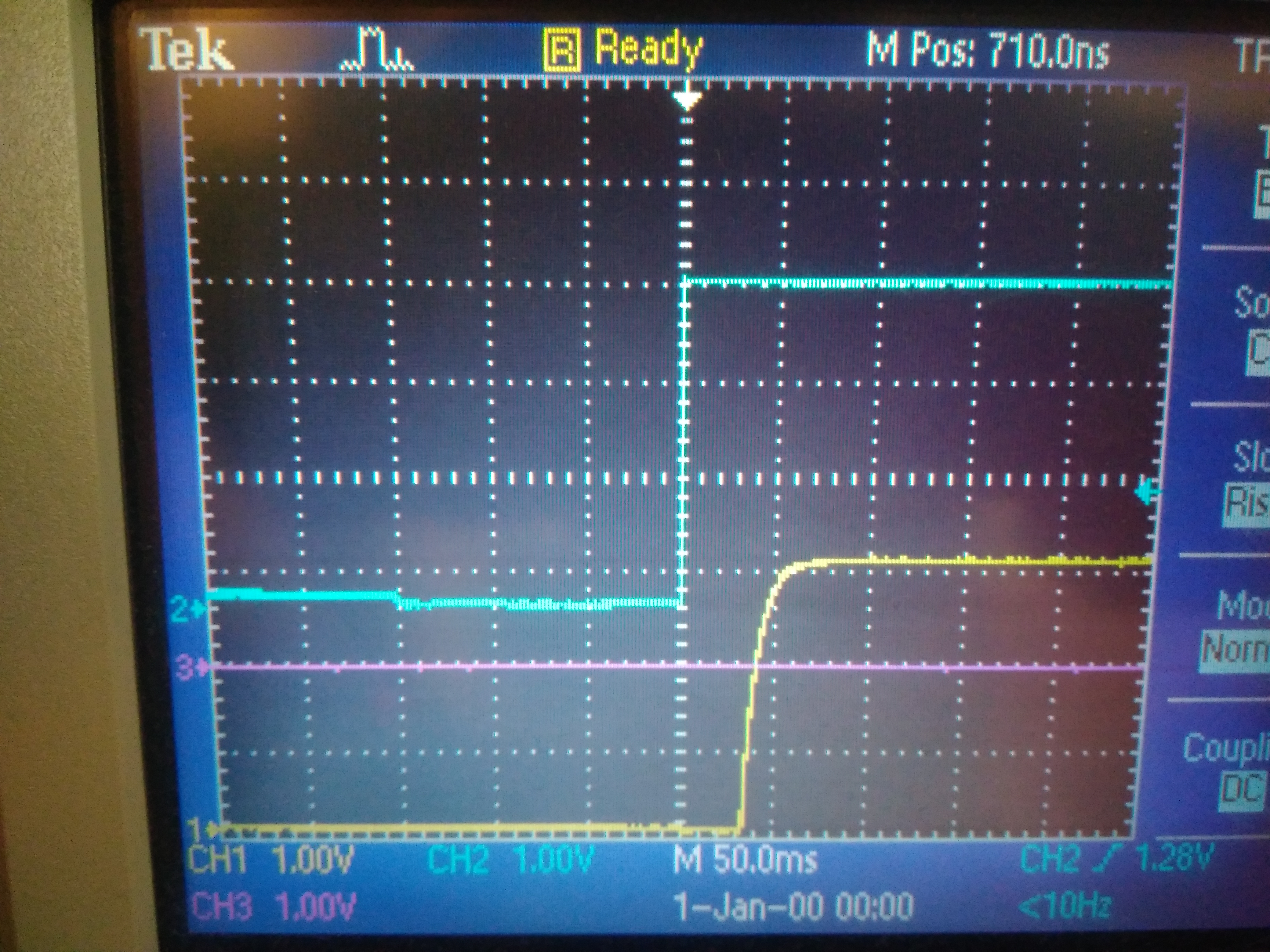

TER, that is result: yellow is reset:

0 TER over 6 years ago in reply to AlexHome

TI__Guru**** 317180 points

The reset signal looks ok based on the plot. After a power connect supervisor reset, what is the voltage on the VDDR and DCPL pins?

0 AlexHome over 6 years ago in reply to TER

Intellectual 990 points

I'll be able to capture the voltages on VDDR and DCPL litle late. Previously: what voltages, forms and start-up time must be on these circuits?

0 TER over 6 years ago in reply to AlexHome

TI__Guru**** 317180 points

If you run the empty example that I suggested you can check the voltage on VDDR and DCOUPL whenever after you have done a reset.

0 AlexHome over 6 years ago in reply to TER

Intellectual 990 points

I see next capture on reset (yellow), dcoupl (pink) and vddr (blue)… so VDDR sometimes better sometimes worst then on the picture... I use recommended CKS2125100M-T between DCDC_SW and VDDR and 10u + 0,1u + 0,1u as recommended

Help please how to fix it?

…

oh! i'm sorry. I have delete the capture because problem was in probe. I connect another probe and VDDR after startup are always clear and equal to ~1,65V

0 AlexHome over 6 years ago in reply to TER

Intellectual 990 points

TER, If I clamp a reset and GND by tweezers, power device, and then release the tweezers, the device starts. It seems that the supervisor's delay is insufficient. Can be somewhere in the settings cc2640r2f can specify proper delay?

0 TER over 6 years ago in reply to AlexHome

TI__Guru**** 317180 points

I'm not sure why your reset from the supervisor does not work. Do you give the reset when VDDS on C2640R2 is above 1.8 V?

0 AlexHome over 6 years ago in reply to TER

Intellectual 990 points

Hello, TER! I found the cause of the problem. My program was expecting the end of initialization of the external chip, but it did not happen, then it fell into the asset...

Thanks for help!
