CCS/CC2650: Base design of 2.4G antenna block for cc26xx

Luong The Phong

Part Number: CC2650
Other Parts Discussed in Thread: CC-ANTENNA-DK2

Tool/software: Code Composer Studio

I nees the detailed decoment to design anten 2.4GHz.

0 Luong The Phong over 6 years ago

Can you give me Link dowload the document?
Thanks you.

0 Seong Kim over 6 years ago in reply to Luong The Phong

Luong,

The LAUNCHXL-CC2650 reference design files can be downloaded here: www.ti.com/.../swrr147

BR,
Seong

0 Luong The Phong over 6 years ago in reply to Seong Kim

Can you tell me the function capacitor and inductor in RF block?

0 RGW over 6 years ago in reply to Luong The Phong

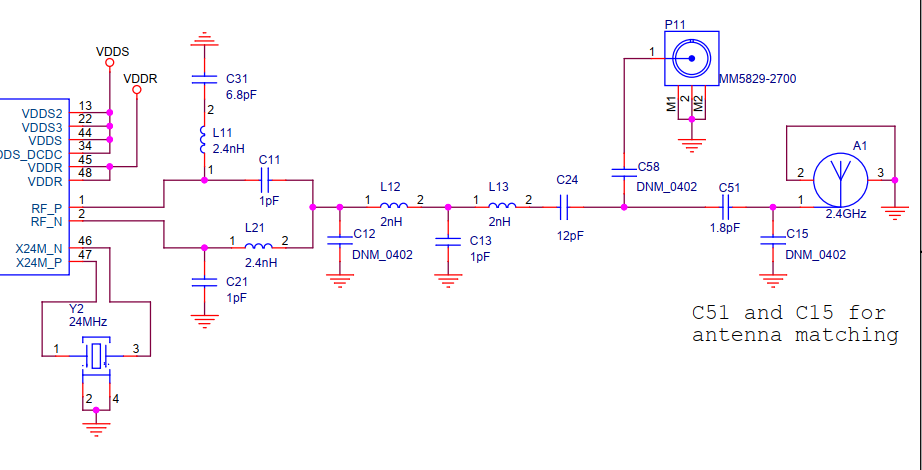

The LCs first form a LC, CL balun; then a LPF.

Refer to the CC-Antenna-DK2 for antenna reference designs.

Regards,
Richard

0 Luong The Phong over 6 years ago in reply to RGW

Thank for your support.
