RTOS/CC2640R2F: Disable LL_CONNECTION_UPDATE_REQ in simple_central

Gary Turtle

Part Number: CC2640R2F
Other Parts Discussed in Thread: CC2540

Tool/software: TI-RTOS

Hi everyone!

After the simple_central is connected to the smartphone (android) , the simple_central will automatically initiate LL_CONNECTION_UPDATE_REQ.

How can I cancel this function? I can't find the settings in simple_central s program.

Many thanks, Gary

over 7 years ago

0 J Lindh over 7 years ago

TI__Guru 57865 points

Hi Gary,

The simple central should not issue a connection parameter update unless it's a request from the android phone. What is occurring prior to that packet?

0 Gary Turtle over 7 years ago in reply to J Lindh

Intellectual 665 points

Hi Joakim,

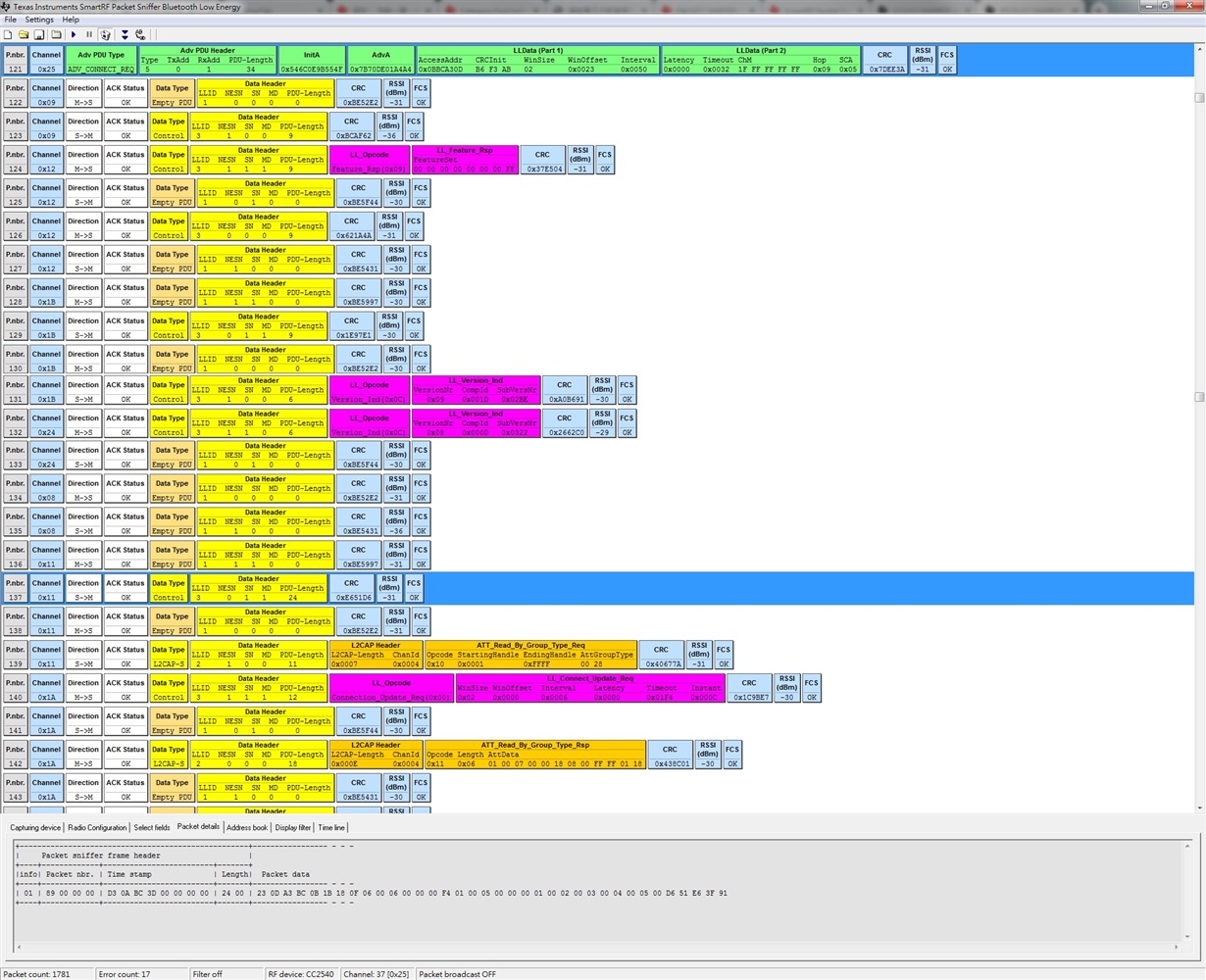

This is what occurring before LL_CONNECTION_UPDATE_REQ：

It looks that there is no request from android phone.

If so, is it P.nbr.138? But the 0x0F is 0x0F − LL_CONNECTION_PARAM_REQ.

Many thanks, Gary

0 J Lindh over 7 years ago in reply to Gary Turtle

TI__Guru 57865 points

Hi Gary,

Either the sniffer is missing out on some information or you must have modified the SW. Do you get the same result everytime you sniff the communication?

0 J Lindh over 7 years ago in reply to J Lindh

TI__Guru 57865 points

Hey,

After looking closer at the sniffer it's clear that it's not able to parse all "control" packets. The packet number 137 has 24 bytes of data only presented in the raw mode (not GUI). The sniffer firmware might not be up to date if these are new types of LL packets.

0 Gary Turtle over 7 years ago in reply to J Lindh

Intellectual 665 points

Hi Joakim,

How to modify the SW?

Modifi the Mnemonic.plt and FieldDef.plt in the D:\***\Program Files (x86)\Texas Instruments\SmartRF Tools\Packet Sniffer\bin\general\plugin\ble ?

>>Do you get the same result everytime you sniff the communication?
Yes, everytime.

Many thanks, Gary

0 Gary Turtle over 7 years ago in reply to J Lindh

Intellectual 665 points

Hi Joakim,

Is there have new sniffer firmware for CC2540 USB Dongle ?

I am using last version of sniffer_fw_cc2540_usb.hex in Packet Sniffer 2.18.1.

Many thanks, Gary

0 J Lindh over 7 years ago in reply to Gary Turtle

TI__Guru 57865 points

Hi Gary,

The TI sniffer isn`t enabled for later versions of the BLE protocol, and modifying it is not easy. instead, you will have to manually parse the packets as needed. You will see the RAW packet in the text box when you mark a row. Use the core specification to parse.

This being said, i'm pretty sure you will find that the smartphone request connection parameter update,

0 Gary Turtle over 7 years ago in reply to J Lindh

Intellectual 665 points

Hi Joakim,

What is the data of the smartphone requesting connection parameter updates?

I should find a LL_CONNECTION_UPDATE_REQ (0x00) data that direction is S to M instead of M to S?

Many thanks, Gary
