Part Number: CC2650MODA
Other Parts Discussed in Thread: CC2650, LAUNCHXL-CC2650
Tool/software: Code Composer Studio
Hi,

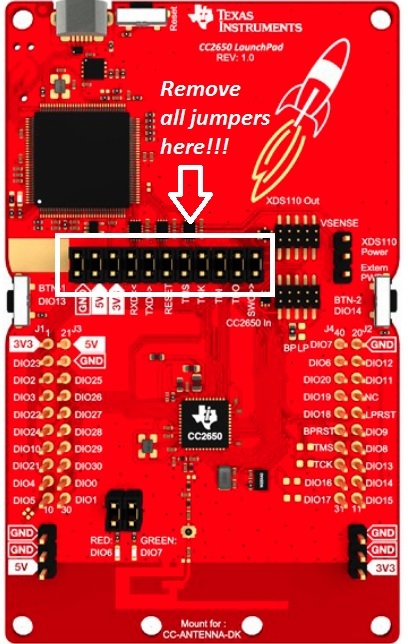

I want to flash a program for my custom board with a CC2650MODA with the cc2650 launchpad.
I change the boards files and now I tried to do the test connection but failed...
What am I doing wrong?
Thanks
/*
* Copyright (c) 2016, Texas Instruments Incorporated
* All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* * Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* * Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the distribution.
*
* * Neither the name of Texas Instruments Incorporated nor the names of
* its contributors may be used to endorse or promote products derived
* from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
* AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
* THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
* PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
* CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
* EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
* EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/
/*
* ====================== CC2650_LAUNCHXL.c ===================================
* This file is responsible for setting up the board specific items for the
* CC2650 LaunchPad.
*/
/*
* ====================== Includes ============================================
*/
#include <xdc/std.h>
#include <xdc/runtime/System.h>
#include <ti/sysbios/family/arm/m3/Hwi.h>
#include <ti/drivers/PIN.h>
#include <ti/drivers/pin/PINCC26XX.h>
#include <ti/drivers/PWM.h>
#include <ti/drivers/pwm/PWMTimerCC26XX.h>
#include <ti/drivers/timer/GPTimerCC26XX.h>
#include <ti/drivers/Power.h>
#include <ti/drivers/power/PowerCC26XX.h>
#include <inc/hw_memmap.h>
#include <inc/hw_ints.h>
#include <driverlib/ioc.h>
#include <driverlib/udma.h>
#include "Board.h"
/*
* ========================= IO driver initialization =========================
* From main, PIN_init(BoardGpioInitTable) should be called to setup safe
* settings for this board.
* When a pin is allocated and then de-allocated, it will revert to the state
* configured in this table.
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(BoardGpioInitTable, ".const:BoardGpioInitTable")
#pragma DATA_SECTION(PINCC26XX_hwAttrs, ".const:PINCC26XX_hwAttrs")
#endif
const PIN_Config BoardGpioInitTable[] = {
//Board_UART_RX | PIN_INPUT_EN | PIN_PULLDOWN, /* UART RX via debugger back channel */
//Board_UART_TX | PIN_GPIO_OUTPUT_EN | PIN_GPIO_HIGH | PIN_PUSHPULL, /* UART TX via debugger back channel */
Board_I2C0_SCL0 | PIN_INPUT_EN | PIN_PULLUP,
Board_I2C0_SDA0 | PIN_INPUT_EN | PIN_PULLUP,
Board_DIO3 | PIN_GPIO_OUTPUT_EN | PIN_GPIO_HIGH | PIN_OPENSOURCE | PIN_DRVSTR_MAX,
PIN_TERMINATE
};
const PINCC26XX_HWAttrs PINCC26XX_hwAttrs = {
.intPriority = ~0,
.swiPriority = 0
};
/*============================================================================*/
/*
* ============================= Power begin ==================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(PowerCC26XX_config, ".const:PowerCC26XX_config")
#endif
const PowerCC26XX_Config PowerCC26XX_config = {
.policyInitFxn = NULL,
.policyFxn = &PowerCC26XX_standbyPolicy,
.calibrateFxn = &PowerCC26XX_calibrate,
.enablePolicy = TRUE,
.calibrateRCOSC_LF = TRUE,
.calibrateRCOSC_HF = TRUE,
};
/*
* ============================= Power end ====================================
*/
/*
* ============================= UART begin ===================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(UART_config, ".const:UART_config")
#pragma DATA_SECTION(uartCC26XXHWAttrs, ".const:uartCC26XXHWAttrs")
#endif
/* Include drivers */
#include <ti/drivers/UART.h>
#include <ti/drivers/uart/UARTCC26XX.h>
/* UART objects */
UARTCC26XX_Object uartCC26XXObjects[CC2650_LAUNCHXL_UARTCOUNT];
/* UART hardware parameter structure, also used to assign UART pins */
const UARTCC26XX_HWAttrsV1 uartCC26XXHWAttrs[CC2650_LAUNCHXL_UARTCOUNT] = {
{
.baseAddr = UART0_BASE,
.powerMngrId = PowerCC26XX_PERIPH_UART0,
.intNum = INT_UART0_COMB,
.intPriority = ~0,
.swiPriority = 0,
.txPin = Board_UART_TX,
.rxPin = Board_UART_RX,
.ctsPin = PIN_UNASSIGNED,
.rtsPin = PIN_UNASSIGNED
}
};
/* UART configuration structure */
const UART_Config UART_config[] = {
{
.fxnTablePtr = &UARTCC26XX_fxnTable,
.object = &uartCC26XXObjects[0],
.hwAttrs = &uartCC26XXHWAttrs[0]
},
{NULL, NULL, NULL}
};
/*
* ============================= UART end =====================================
*/
/*
* ============================= UDMA begin ===================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(UDMACC26XX_config, ".const:UDMACC26XX_config")
#pragma DATA_SECTION(udmaHWAttrs, ".const:udmaHWAttrs")
#endif
/* Include drivers */
#include <ti/drivers/dma/UDMACC26XX.h>
/* UDMA objects */
UDMACC26XX_Object udmaObjects[CC2650_LAUNCHXL_UDMACOUNT];
/* UDMA configuration structure */
const UDMACC26XX_HWAttrs udmaHWAttrs[CC2650_LAUNCHXL_UDMACOUNT] = {
{
.baseAddr = UDMA0_BASE,
.powerMngrId = PowerCC26XX_PERIPH_UDMA,
.intNum = INT_DMA_ERR,
.intPriority = ~0
}
};
/* UDMA configuration structure */
const UDMACC26XX_Config UDMACC26XX_config[] = {
{
.object = &udmaObjects[0],
.hwAttrs = &udmaHWAttrs[0]
},
{NULL, NULL}
};
/*
* ============================= UDMA end =====================================
*/
/*
* ========================== SPI DMA begin ===================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(SPI_config, ".const:SPI_config")
#pragma DATA_SECTION(spiCC26XXDMAHWAttrs, ".const:spiCC26XXDMAHWAttrs")
#endif
/* Include drivers */
#include <ti/drivers/spi/SPICC26XXDMA.h>
/* SPI objects */
SPICC26XXDMA_Object spiCC26XXDMAObjects[CC2650_LAUNCHXL_SPICOUNT];
/* SPI configuration structure, describing which pins are to be used */
const SPICC26XXDMA_HWAttrsV1 spiCC26XXDMAHWAttrs[CC2650_LAUNCHXL_SPICOUNT] = {
{
.baseAddr = SSI0_BASE,
.intNum = INT_SSI0_COMB,
.intPriority = ~0,
.swiPriority = 0,
.powerMngrId = PowerCC26XX_PERIPH_SSI0,
.defaultTxBufValue = 0,
.rxChannelBitMask = 1<<UDMA_CHAN_SSI0_RX,
.txChannelBitMask = 1<<UDMA_CHAN_SSI0_TX,
.mosiPin = Board_SPI0_MOSI,
.misoPin = Board_SPI0_MISO,
.clkPin = Board_SPI0_CLK,
.csnPin = Board_SPI0_CSN
},
{
.baseAddr = SSI1_BASE,
.intNum = INT_SSI1_COMB,
.intPriority = ~0,
.swiPriority = 0,
.powerMngrId = PowerCC26XX_PERIPH_SSI1,
.defaultTxBufValue = 0,
.rxChannelBitMask = 1<<UDMA_CHAN_SSI1_RX,
.txChannelBitMask = 1<<UDMA_CHAN_SSI1_TX,
.mosiPin = Board_SPI1_MOSI,
.misoPin = Board_SPI1_MISO,
.clkPin = Board_SPI1_CLK,
.csnPin = Board_SPI1_CSN
}
};
/* SPI configuration structure */
const SPI_Config SPI_config[] = {
{
.fxnTablePtr = &SPICC26XXDMA_fxnTable,
.object = &spiCC26XXDMAObjects[0],
.hwAttrs = &spiCC26XXDMAHWAttrs[0]
},
{
.fxnTablePtr = &SPICC26XXDMA_fxnTable,
.object = &spiCC26XXDMAObjects[1],
.hwAttrs = &spiCC26XXDMAHWAttrs[1]
},
{NULL, NULL, NULL}
};
/*
* ========================== SPI DMA end =====================================
*/
/*
* ============================= I2C Begin=====================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(I2C_config, ".const:I2C_config")
#pragma DATA_SECTION(i2cCC26xxHWAttrs, ".const:i2cCC26xxHWAttrs")
#endif
/* Include drivers */
#include <ti/drivers/i2c/I2CCC26XX.h>
/* I2C objects */
I2CCC26XX_Object i2cCC26xxObjects[CC2650_LAUNCHXL_I2CCOUNT];
/* I2C configuration structure, describing which pins are to be used */
const I2CCC26XX_HWAttrsV1 i2cCC26xxHWAttrs[CC2650_LAUNCHXL_I2CCOUNT] = {
{
.baseAddr = I2C0_BASE,
.powerMngrId = PowerCC26XX_PERIPH_I2C0,
.intNum = INT_I2C_IRQ,
.intPriority = ~0,
.swiPriority = 0,
.sdaPin = Board_I2C0_SDA0,
.sclPin = Board_I2C0_SCL0,
}
};
/* I2C configuration structure */
const I2C_Config I2C_config[] = {
{
.fxnTablePtr = &I2CCC26XX_fxnTable,
.object = &i2cCC26xxObjects[0],
.hwAttrs = &i2cCC26xxHWAttrs[0]
},
{NULL, NULL, NULL}
};
/*
* ========================== I2C end =========================================
*/
/*
* ========================== Crypto begin ====================================
* NOTE: The Crypto implementation should be considered experimental
* and not validated!
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(CryptoCC26XX_config, ".const:CryptoCC26XX_config")
#pragma DATA_SECTION(cryptoCC26XXHWAttrs, ".const:cryptoCC26XXHWAttrs")
#endif
/* Include drivers */
#include <ti/drivers/crypto/CryptoCC26XX.h>
/* Crypto objects */
CryptoCC26XX_Object cryptoCC26XXObjects[CC2650_LAUNCHXL_CRYPTOCOUNT];
/* Crypto configuration structure, describing which pins are to be used */
const CryptoCC26XX_HWAttrs cryptoCC26XXHWAttrs[CC2650_LAUNCHXL_CRYPTOCOUNT] = {
{
.baseAddr = CRYPTO_BASE,
.powerMngrId = PowerCC26XX_PERIPH_CRYPTO,
.intNum = INT_CRYPTO_RESULT_AVAIL_IRQ,
.intPriority = ~0,
}
};
/* Crypto configuration structure */
const CryptoCC26XX_Config CryptoCC26XX_config[] = {
{
.object = &cryptoCC26XXObjects[0],
.hwAttrs = &cryptoCC26XXHWAttrs[0]
},
{NULL, NULL}
};
/*
* ========================== Crypto end ======================================
*/
/*
* ========================= RF driver begin ==================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(RFCC26XX_hwAttrs, ".const:RFCC26XX_hwAttrs")
#endif
/* Include drivers */
#include <ti/drivers/rf/RF.h>
/* RF hwi and swi priority */
const RFCC26XX_HWAttrs RFCC26XX_hwAttrs = {
.hwiCpe0Priority = ~0,
.hwiHwPriority = ~0,
.swiCpe0Priority = 5,
.swiHwPriority = 5,
};
/*
* ========================== RF driver end ===================================
*/
/*
* ========================= Display begin ====================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(Display_config, ".const:Display_config")
#pragma DATA_SECTION(displaySharpHWattrs, ".const:displaySharpHWattrs")
#pragma DATA_SECTION(displayUartHWAttrs, ".const:displayUartHWAttrs")
#endif
#include <ti/mw/display/Display.h>
#include <ti/mw/display/DisplaySharp.h>
#include <ti/mw/display/DisplayUart.h>
/* Structures for UartPlain Blocking */
DisplayUart_Object displayUartObject;
#ifndef BOARD_DISPLAY_UART_STRBUF_SIZE
#define BOARD_DISPLAY_UART_STRBUF_SIZE 128
#endif
static char uartStringBuf[BOARD_DISPLAY_UART_STRBUF_SIZE];
const DisplayUart_HWAttrs displayUartHWAttrs = {
.uartIdx = Board_UART,
.baudRate = 115200,
.mutexTimeout = BIOS_WAIT_FOREVER,
.strBuf = uartStringBuf,
.strBufLen = BOARD_DISPLAY_UART_STRBUF_SIZE,
};
/* Structures for SHARP */
DisplaySharp_Object displaySharpObject;
#ifndef BOARD_DISPLAY_SHARP_SIZE
#define BOARD_DISPLAY_SHARP_SIZE 96 // 96->96x96 is the most common board, alternative is 128->128x128.
#endif
static uint8_t sharpDisplayBuf[BOARD_DISPLAY_SHARP_SIZE * BOARD_DISPLAY_SHARP_SIZE / 8];
const DisplaySharp_HWAttrs displaySharpHWattrs = {
.spiIndex = Board_SPI0,
.csPin = Board_LCD_CS,
.extcominPin = Board_LCD_EXTCOMIN,
.powerPin = Board_LCD_POWER,
.enablePin = Board_LCD_ENABLE,
.pixelWidth = BOARD_DISPLAY_SHARP_SIZE,
.pixelHeight = BOARD_DISPLAY_SHARP_SIZE,
.displayBuf = sharpDisplayBuf,
};
/* Array of displays */
const Display_Config Display_config[] = {
#if !defined(BOARD_DISPLAY_EXCLUDE_UART)
{
.fxnTablePtr = &DisplayUart_fxnTable,
.object = &displayUartObject,
.hwAttrs = &displayUartHWAttrs,
},
#endif
#if !defined(BOARD_DISPLAY_EXCLUDE_LCD)
{
.fxnTablePtr = &DisplaySharp_fxnTable,
.object = &displaySharpObject,
.hwAttrs = &displaySharpHWattrs
},
#endif
{ NULL, NULL, NULL } // Terminator
};
/*
* ========================= Display end ======================================
*/
/*
* ============================ GPTimer begin =================================
* Remove unused entries to reduce flash usage both in Board.c and Board.h
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(GPTimerCC26XX_config, ".const:GPTimerCC26XX_config")
#pragma DATA_SECTION(gptimerCC26xxHWAttrs, ".const:gptimerCC26xxHWAttrs")
#endif
/* GPTimer hardware attributes, one per timer part (Timer 0A, 0B, 1A, 1B..) */
const GPTimerCC26XX_HWAttrs gptimerCC26xxHWAttrs[CC2650_LAUNCHXL_GPTIMERPARTSCOUNT] = {
{ .baseAddr = GPT0_BASE, .intNum = INT_GPT0A, .intPriority = (~0), .powerMngrId = PowerCC26XX_PERIPH_GPT0, .pinMux = GPT_PIN_0A, },
{ .baseAddr = GPT0_BASE, .intNum = INT_GPT0B, .intPriority = (~0), .powerMngrId = PowerCC26XX_PERIPH_GPT0, .pinMux = GPT_PIN_0B, },
{ .baseAddr = GPT1_BASE, .intNum = INT_GPT1A, .intPriority = (~0), .powerMngrId = PowerCC26XX_PERIPH_GPT1, .pinMux = GPT_PIN_1A, },
{ .baseAddr = GPT1_BASE, .intNum = INT_GPT1B, .intPriority = (~0), .powerMngrId = PowerCC26XX_PERIPH_GPT1, .pinMux = GPT_PIN_1B, },
{ .baseAddr = GPT2_BASE, .intNum = INT_GPT2A, .intPriority = (~0), .powerMngrId = PowerCC26XX_PERIPH_GPT2, .pinMux = GPT_PIN_2A, },
{ .baseAddr = GPT2_BASE, .intNum = INT_GPT2B, .intPriority = (~0), .powerMngrId = PowerCC26XX_PERIPH_GPT2, .pinMux = GPT_PIN_2B, },
{ .baseAddr = GPT3_BASE, .intNum = INT_GPT3A, .intPriority = (~0), .powerMngrId = PowerCC26XX_PERIPH_GPT3, .pinMux = GPT_PIN_3A, },
{ .baseAddr = GPT3_BASE, .intNum = INT_GPT3B, .intPriority = (~0), .powerMngrId = PowerCC26XX_PERIPH_GPT3, .pinMux = GPT_PIN_3B, },
};
/* GPTimer objects, one per full-width timer (A+B) (Timer 0, Timer 1..) */
GPTimerCC26XX_Object gptimerCC26XXObjects[CC2650_LAUNCHXL_GPTIMERCOUNT];
/* GPTimer configuration (used as GPTimer_Handle by driver and application) */
const GPTimerCC26XX_Config GPTimerCC26XX_config[CC2650_LAUNCHXL_GPTIMERPARTSCOUNT] = {
{ &gptimerCC26XXObjects[0], &gptimerCC26xxHWAttrs[0], GPT_A },
{ &gptimerCC26XXObjects[0], &gptimerCC26xxHWAttrs[1], GPT_B },
{ &gptimerCC26XXObjects[1], &gptimerCC26xxHWAttrs[2], GPT_A },
{ &gptimerCC26XXObjects[1], &gptimerCC26xxHWAttrs[3], GPT_B },
{ &gptimerCC26XXObjects[2], &gptimerCC26xxHWAttrs[4], GPT_A },
{ &gptimerCC26XXObjects[2], &gptimerCC26xxHWAttrs[5], GPT_B },
{ &gptimerCC26XXObjects[3], &gptimerCC26xxHWAttrs[6], GPT_A },
{ &gptimerCC26XXObjects[3], &gptimerCC26xxHWAttrs[7], GPT_B },
};
/*
* ============================ GPTimer end ===================================
*/
/*
* ============================= PWM begin ====================================
* Remove unused entries to reduce flash usage both in Board.c and Board.h
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(PWM_config, ".const:PWM_config")
#pragma DATA_SECTION(pwmtimerCC26xxHWAttrs, ".const:pwmtimerCC26xxHWAttrs")
#endif
/* PWM configuration, one per PWM output. */
PWMTimerCC26XX_HwAttrs pwmtimerCC26xxHWAttrs[CC2650_LAUNCHXL_PWMCOUNT] = {
{ .pwmPin = Board_PWMPIN0, .gpTimerUnit = Board_GPTIMER0A },
{ .pwmPin = Board_PWMPIN1, .gpTimerUnit = Board_GPTIMER0B },
{ .pwmPin = Board_PWMPIN2, .gpTimerUnit = Board_GPTIMER1A },
{ .pwmPin = Board_PWMPIN3, .gpTimerUnit = Board_GPTIMER1B },
{ .pwmPin = Board_PWMPIN4, .gpTimerUnit = Board_GPTIMER2A },
{ .pwmPin = Board_PWMPIN5, .gpTimerUnit = Board_GPTIMER2B },
{ .pwmPin = Board_PWMPIN6, .gpTimerUnit = Board_GPTIMER3A },
{ .pwmPin = Board_PWMPIN7, .gpTimerUnit = Board_GPTIMER3B },
};
/* PWM object, one per PWM output */
PWMTimerCC26XX_Object pwmtimerCC26xxObjects[CC2650_LAUNCHXL_PWMCOUNT];
extern const PWM_FxnTable PWMTimerCC26XX_fxnTable;
/* PWM configuration (used as PWM_Handle by driver and application) */
const PWM_Config PWM_config[CC2650_LAUNCHXL_PWMCOUNT + 1] = {
{ &PWMTimerCC26XX_fxnTable, &pwmtimerCC26xxObjects[0], &pwmtimerCC26xxHWAttrs[0] },
{ &PWMTimerCC26XX_fxnTable, &pwmtimerCC26xxObjects[1], &pwmtimerCC26xxHWAttrs[1] },
{ &PWMTimerCC26XX_fxnTable, &pwmtimerCC26xxObjects[2], &pwmtimerCC26xxHWAttrs[2] },
{ &PWMTimerCC26XX_fxnTable, &pwmtimerCC26xxObjects[3], &pwmtimerCC26xxHWAttrs[3] },
{ &PWMTimerCC26XX_fxnTable, &pwmtimerCC26xxObjects[4], &pwmtimerCC26xxHWAttrs[4] },
{ &PWMTimerCC26XX_fxnTable, &pwmtimerCC26xxObjects[5], &pwmtimerCC26xxHWAttrs[5] },
{ &PWMTimerCC26XX_fxnTable, &pwmtimerCC26xxObjects[6], &pwmtimerCC26xxHWAttrs[6] },
{ &PWMTimerCC26XX_fxnTable, &pwmtimerCC26xxObjects[7], &pwmtimerCC26xxHWAttrs[7] },
{ NULL, NULL, NULL }
};
/*
* ============================= PWM end ======================================
*/
/*
* ========================== ADCBuf begin =========================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(ADCBuf_config, ".const:ADCBuf_config")
#pragma DATA_SECTION(adcBufCC26xxHWAttrs, ".const:adcBufCC26xxHWAttrs")
#pragma DATA_SECTION(ADCBufCC26XX_adcChannelLut, ".const:ADCBufCC26XX_adcChannelLut")
#endif
/* Include drivers */
#include <ti/drivers/ADCBuf.h>
#include <ti/drivers/adcbuf/ADCBufCC26XX.h>
/* ADCBuf objects */
ADCBufCC26XX_Object adcBufCC26xxObjects[CC2650_LAUNCHXL_ADCBufCOUNT];
/*
* This table converts a virtual adc channel into a dio and internal analogue input signal.
* This table is necessary for the functioning of the adcBuf driver.
* Comment out unused entries to save flash.
* Dio and internal signal pairs are hardwired. Do not remap them in the table. You may reorder entire entries though.
* The mapping of dio and internal signals is package dependent.
*/
const ADCBufCC26XX_AdcChannelLutEntry ADCBufCC26XX_adcChannelLut[] = {
{PIN_UNASSIGNED, ADC_COMPB_IN_VDDS},
{PIN_UNASSIGNED, ADC_COMPB_IN_DCOUPL},
{PIN_UNASSIGNED, ADC_COMPB_IN_VSS},
{Board_DIO23_ANALOG, ADC_COMPB_IN_AUXIO7},
{Board_DIO24_ANALOG, ADC_COMPB_IN_AUXIO6},
{Board_DIO25_ANALOG, ADC_COMPB_IN_AUXIO5},
{Board_DIO26_ANALOG, ADC_COMPB_IN_AUXIO4},
{Board_DIO27_ANALOG, ADC_COMPB_IN_AUXIO3},
{Board_DIO28_ANALOG, ADC_COMPB_IN_AUXIO2},
{Board_DIO29_ANALOG, ADC_COMPB_IN_AUXIO1},
{Board_DIO30_ANALOG, ADC_COMPB_IN_AUXIO0},
};
const ADCBufCC26XX_HWAttrs adcBufCC26xxHWAttrs[CC2650_LAUNCHXL_ADCBufCOUNT] = {
{
.intPriority = ~0,
.swiPriority = 0,
.adcChannelLut = ADCBufCC26XX_adcChannelLut,
.gpTimerUnit = Board_GPTIMER0A,
.gptDMAChannelMask = 1 << UDMA_CHAN_TIMER0_A,
}
};
const ADCBuf_Config ADCBuf_config[] = {
{&ADCBufCC26XX_fxnTable, &adcBufCC26xxObjects[0], &adcBufCC26xxHWAttrs[0]},
{NULL, NULL, NULL},
};
/*
* ========================== ADCBuf end =========================================
*/
/*
* ========================== ADC begin =========================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(ADC_config, ".const:ADC_config")
#pragma DATA_SECTION(adcCC26xxHWAttrs, ".const:adcCC26xxHWAttrs")
#endif
/* Include drivers */
#include <ti/drivers/ADC.h>
#include <ti/drivers/adc/ADCCC26XX.h>
/* ADC objects */
ADCCC26XX_Object adcCC26xxObjects[CC2650_LAUNCHXL_ADCCOUNT];
const ADCCC26XX_HWAttrs adcCC26xxHWAttrs[CC2650_LAUNCHXL_ADCCOUNT] = {
{
.adcDIO = Board_DIO23_ANALOG,
.adcCompBInput = ADC_COMPB_IN_AUXIO7,
.refSource = ADCCC26XX_FIXED_REFERENCE,
.samplingDuration = ADCCC26XX_SAMPLING_DURATION_2P7_US,
.inputScalingEnabled = true,
.triggerSource = ADCCC26XX_TRIGGER_MANUAL
},
{
.adcDIO = Board_DIO24_ANALOG,
.adcCompBInput = ADC_COMPB_IN_AUXIO6,
.refSource = ADCCC26XX_FIXED_REFERENCE,
.samplingDuration = ADCCC26XX_SAMPLING_DURATION_2P7_US,
.inputScalingEnabled = true,
.triggerSource = ADCCC26XX_TRIGGER_MANUAL
},
{
.adcDIO = Board_DIO25_ANALOG,
.adcCompBInput = ADC_COMPB_IN_AUXIO5,
.refSource = ADCCC26XX_FIXED_REFERENCE,
.samplingDuration = ADCCC26XX_SAMPLING_DURATION_2P7_US,
.inputScalingEnabled = true,
.triggerSource = ADCCC26XX_TRIGGER_MANUAL
},
{
.adcDIO = Board_DIO26_ANALOG,
.adcCompBInput = ADC_COMPB_IN_AUXIO4,
.refSource = ADCCC26XX_FIXED_REFERENCE,
.samplingDuration = ADCCC26XX_SAMPLING_DURATION_2P7_US,
.inputScalingEnabled = true,
.triggerSource = ADCCC26XX_TRIGGER_MANUAL
},
{
.adcDIO = Board_DIO27_ANALOG,
.adcCompBInput = ADC_COMPB_IN_AUXIO3,
.refSource = ADCCC26XX_FIXED_REFERENCE,
.samplingDuration = ADCCC26XX_SAMPLING_DURATION_2P7_US,
.inputScalingEnabled = true,
.triggerSource = ADCCC26XX_TRIGGER_MANUAL
},
{
.adcDIO = Board_DIO28_ANALOG,
.adcCompBInput = ADC_COMPB_IN_AUXIO2,
.refSource = ADCCC26XX_FIXED_REFERENCE,
.samplingDuration = ADCCC26XX_SAMPLING_DURATION_2P7_US,
.inputScalingEnabled = true,
.triggerSource = ADCCC26XX_TRIGGER_MANUAL
},
{
.adcDIO = Board_DIO29_ANALOG,
.adcCompBInput = ADC_COMPB_IN_AUXIO1,
.refSource = ADCCC26XX_FIXED_REFERENCE,
.samplingDuration = ADCCC26XX_SAMPLING_DURATION_2P7_US,
.inputScalingEnabled = true,
.triggerSource = ADCCC26XX_TRIGGER_MANUAL
},
{
.adcDIO = Board_DIO30_ANALOG,
.adcCompBInput = ADC_COMPB_IN_AUXIO0,
.refSource = ADCCC26XX_FIXED_REFERENCE,
.samplingDuration = ADCCC26XX_SAMPLING_DURATION_10P9_MS,
.inputScalingEnabled = true,
.triggerSource = ADCCC26XX_TRIGGER_MANUAL
},
{
.adcDIO = PIN_UNASSIGNED,
.adcCompBInput = ADC_COMPB_IN_DCOUPL,
.refSource = ADCCC26XX_FIXED_REFERENCE,
.samplingDuration = ADCCC26XX_SAMPLING_DURATION_2P7_US,
.inputScalingEnabled = true,
.triggerSource = ADCCC26XX_TRIGGER_MANUAL
},
{
.adcDIO = PIN_UNASSIGNED,
.adcCompBInput = ADC_COMPB_IN_VSS,
.refSource = ADCCC26XX_FIXED_REFERENCE,
.samplingDuration = ADCCC26XX_SAMPLING_DURATION_2P7_US,
.inputScalingEnabled = true,
.triggerSource = ADCCC26XX_TRIGGER_MANUAL
},
{
.adcDIO = PIN_UNASSIGNED,
.adcCompBInput = ADC_COMPB_IN_VDDS,
.refSource = ADCCC26XX_FIXED_REFERENCE,
.samplingDuration = ADCCC26XX_SAMPLING_DURATION_2P7_US,
.inputScalingEnabled = true,
.triggerSource = ADCCC26XX_TRIGGER_MANUAL
}
};
const ADC_Config ADC_config[] = {
{&ADCCC26XX_fxnTable, &adcCC26xxObjects[0], &adcCC26xxHWAttrs[0]},
{&ADCCC26XX_fxnTable, &adcCC26xxObjects[1], &adcCC26xxHWAttrs[1]},
{&ADCCC26XX_fxnTable, &adcCC26xxObjects[2], &adcCC26xxHWAttrs[2]},
{&ADCCC26XX_fxnTable, &adcCC26xxObjects[3], &adcCC26xxHWAttrs[3]},
{&ADCCC26XX_fxnTable, &adcCC26xxObjects[4], &adcCC26xxHWAttrs[4]},
{&ADCCC26XX_fxnTable, &adcCC26xxObjects[5], &adcCC26xxHWAttrs[5]},
{&ADCCC26XX_fxnTable, &adcCC26xxObjects[6], &adcCC26xxHWAttrs[6]},
{&ADCCC26XX_fxnTable, &adcCC26xxObjects[7], &adcCC26xxHWAttrs[7]},
{&ADCCC26XX_fxnTable, &adcCC26xxObjects[8], &adcCC26xxHWAttrs[8]},
{&ADCCC26XX_fxnTable, &adcCC26xxObjects[9], &adcCC26xxHWAttrs[9]},
{&ADCCC26XX_fxnTable, &adcCC26xxObjects[10], &adcCC26xxHWAttrs[10]},
{NULL, NULL, NULL},
};
/*
* ========================== ADC end =========================================
*/
/*
* ========================= TRNG begin ====================================
*/
/* Place into subsections to allow the TI linker to remove items properly */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_SECTION(TRNGCC26XX_config, ".const:TRNGCC26XX_config")
#pragma DATA_SECTION(TRNGCC26XXHWAttrs, ".const:TRNGCC26XXHWAttrs")
#endif
/* Include drivers */
#include <TRNGCC26XX.h>
/* TRNG objects */
TRNGCC26XX_Object trngCC26XXObjects[CC2650_LAUNCHXL_TRNGCOUNT];
/* TRNG configuration structure, describing which pins are to be used */
const TRNGCC26XX_HWAttrs TRNGCC26XXHWAttrs[CC2650_LAUNCHXL_TRNGCOUNT] = {
{
.powerMngrId = PowerCC26XX_PERIPH_TRNG,
}
};
/* TRNG configuration structure */
const TRNGCC26XX_Config TRNGCC26XX_config[] = {
{
.object = &trngCC26XXObjects[0],
.hwAttrs = &TRNGCC26XXHWAttrs[0]
},
{NULL, NULL}
};
/*
* ========================= TRNG end ====================================
*/
