CC2650MODA: Connection issue with Standalone CC2650MODA Module.

mohammad ehshan khan

Part Number: CC2650MODA
Other Parts Discussed in Thread: CC2650

Hello,

I have been working with CC2650 launchpad so that i can eventually work on CC2650MODA with minimal effort.

I wanted to just upload a Simple peripheral program onto CC2650MODA. (I have taken the Board files into consideration but that does not issue me in any way)

So I connected the pins 3.3V, GND, RESET, TMS, TCK. Just to check whether the CC2650MODA is detected by using the smartrf flash programmer 2.

Connecting the jumpers only to above 5 pins back onto the launchpad. The CC2650 IC on the launchpad gets detected instantly. Similarly for Booster Pack CC2650 plug-in module, as soon as do the connections it gets detected.

To my loss, the standalone CC2650MODA didn't get detected. Thinking my CC2650MODA standalone module might not be working, i tested on another. But received the same result.

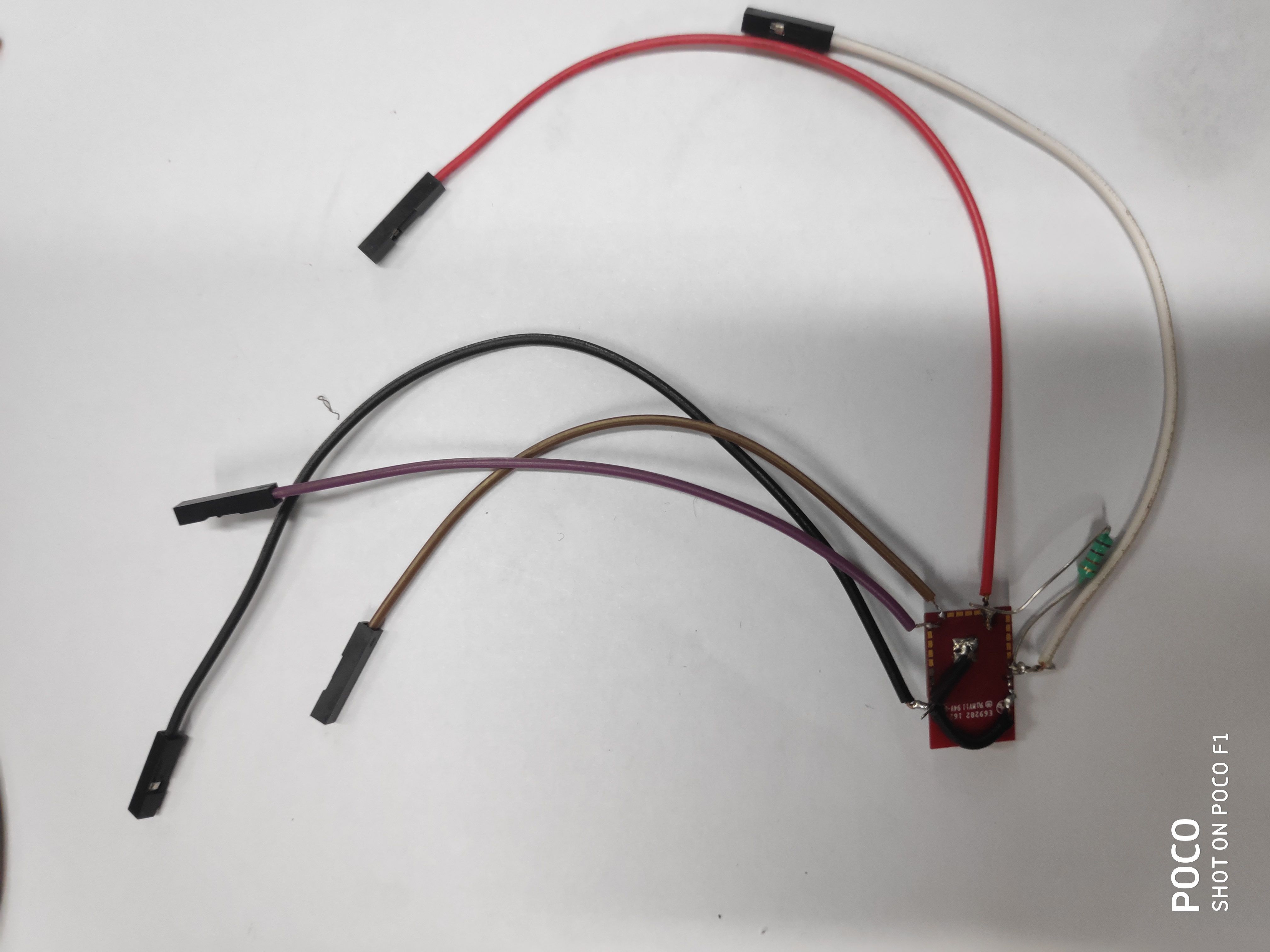

NOTE: I have directly soldered wires onto the CC2650MODA standalone module for uploading the program as shown in the figure.

I have the image of all the connections that i have done.

I have also designed the PCB file, but the same issue existed. So if this works, I'll need help with that too.

over 7 years ago

0 YiKai Chen over 7 years ago

Guru 735695 points

Try to remove resister between 3V3 and reset pins on your CC2650MODA.

0 Fredrik K over 7 years ago

TI__Guru** 106705 points

Hi Mohammad,

The reset line is not soldered to the right pad on the module. The pull-up is still required.

Regards,
Fredrik

A similar case has been resolved before on E2E, you can look at the wiring here for reference (in this case there is no need to tie all the GND pads together): e2e.ti.com/.../567733

0 TER over 7 years ago in reply to YiKai Chen

TI__Guru**** 317180 points

Pressed TI Thinks resolved on wrong post by accident.

But I suspect that reset has something to do with the issue you are seeing, recheck that you have soldered the red "reset" wire to the correct pin on the module, for me it looks like it's connected to a DIO.

0 mohammad ehshan khan over 7 years ago in reply to YiKai Chen

Intellectual 470 points

The link shared in below shows that the MODA needs the reset.

0 TER over 7 years ago in reply to mohammad ehshan khan

TI__Guru**** 317180 points

Yes, it needs a reset but you have to connect it to the correct pin.

0 YiKai Chen over 7 years ago in reply to mohammad ehshan khan

Guru 735695 points

You can read to find exact position of reset pin.

0 mohammad ehshan khan over 7 years ago in reply to TER

Intellectual 470 points

So I checked, you were right that the reset is connected to DIO8 pin.

I reconnected it to the DIO13 pin of the standalone MODA. Didn't remove the resistor.

When i tired to connect using CC2650 launchpad again, it still didn't get discovered.

0 Fredrik K over 7 years ago in reply to mohammad ehshan khan

TI__Guru** 106705 points

You still have the Vsense jumper mounted on the LaunchPad, right?

0 mohammad ehshan khan over 7 years ago in reply to Fredrik K

Intellectual 470 points

What do you mean by Vsense Jumper?

What is Vsense Jumper according to the pinout above?

0 TER over 7 years ago in reply to mohammad ehshan khan

TI__Guru**** 317180 points

The jumper marker VSENSE on the launchpad.

0 mohammad ehshan khan over 7 years ago in reply to mohammad ehshan khan

Intellectual 470 points

Yes that is connected.

0 Fredrik K over 7 years ago in reply to mohammad ehshan khan

TI__Guru** 106705 points

I would recommend you try another CC2650 module then. Perhaps then one you have now is broken (by ESD for example).

0 mohammad ehshan khan over 7 years ago in reply to Fredrik K

Intellectual 470 points

Can you brief me more on this CC2650MODA ESD?

It worked for new MODA. But i need to know the reason.

Can you please brief me more on this?

will be glad.

0 TER over 7 years ago in reply to mohammad ehshan khan

TI__Guru**** 317180 points

Is the desk you work on ESD protected? Do you use ESD protective gear at all times (ESD shoes, wrist ESD strap etc)? If not it's easy to subject the module to a ESD event.

0 mohammad ehshan khan over 7 years ago in reply to TER

Intellectual 470 points

Lastly, can you guide me to it?

i need to explain this to my superiors.

Thanks a lot for your assistance.

0 TER over 7 years ago in reply to mohammad ehshan khan

TI__Guru**** 317180 points

Do you mean guide you to proper ESD handling? This is a widely covered area and you should be able to find something online.
