CC2642R-Q1: Land Pattern

Renan Santos Adriano

Part Number: CC2642R-Q1

Hi Team,

My Customer is looking for the land pattern recommendation for CC2642R-Q1 device. I've checked the datasheet and it seems that the thermal pad size is missing.

Looking forward to your feedback.

http://www.ti.com/lit/ml/mpqf140c/mpqf140c.pdf

Regards,

Renan

over 6 years ago

0 TER over 6 years ago

TI__Guru**** 317180 points

It looks like not all required information has been included in the datasheet. We are looking into why.

The thermal pad size is 5.15 +/- 0.1 mm

0 Renan Santos Adriano over 6 years ago in reply to TER

TI__Mastermind 26435 points

Hi TER,

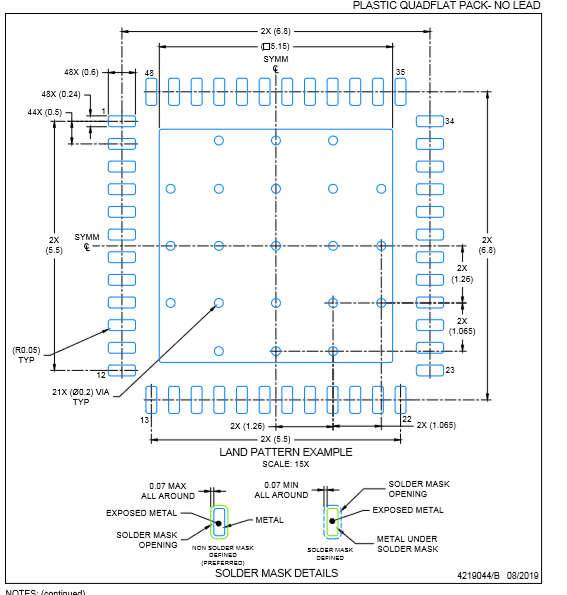

Thank you for this response. Do we have a land pattern recommendation like the one attached?

My customer really wanted to have a document like this one.

Regards,

Renan

0 TER over 6 years ago in reply to Renan Santos Adriano

TI__Guru**** 317180 points

I tried to send a mail to you with what you need but I got "This is an automatic system response. You have attempted to reach an email address that is not monitored. You will not receive a response to your email. " as an automatic reply. Did you get the mail I sent and if not, where should I send the mail?

0 Renan Santos Adriano over 6 years ago in reply to TER

TI__Mastermind 26435 points

Hi TER,

I've send you an email using our system,and you can reply on that email.

I really appreciate your support on this inquiry,

Regards,

Renan

0 TER over 6 years ago in reply to Renan Santos Adriano

TI__Guru**** 317180 points

Information sent offline
