CC2640R2F: TWS Architecture

LazyHD

Part Number: CC2640R2F
Other Parts Discussed in Thread: CC2642R

Hello,

We want to design TWS earbuds using the CC2640r2f, I am trying to find additional information about the architecture but failing.

My questions are related to the architecture:

The earbuds connect to each other via bluetooth, I am guessing one is central the other peripheral ?
Once the earbuds connect to each other, the peripheral will continue to advertise and the phone will connect to it ?
Once this connection is establish, the left/right channel will be forwarded from the peripheral to the central earbud ?

Thanks,

over 6 years ago

0 Clément over 6 years ago

TI__Guru** 101540 points

Hi,

To begin, the architecture you are mentioning seems ok. However I see a few potential problems:

You need to develop an app on the phone to send audio data over BLE to the CC2640R2
Not all the phones have the capability to be a peripheral, or at least, this functionality is not recommended to be used
We do not provide OOB code to support simultaneously two connections doing audio streaming (and this could cause some timing issues)

I hope this will help,

Kind regards,

0 LazyHD over 6 years ago in reply to Clément

Expert 1060 points

Thank you for your reply, I wanted the phone to be central not peripheral.

Can you enlighten me how the TWS is implemented in a standard way ? I know there are no reference designs from TI but the CC2640R2F is recommended for this and I want to know how to approach it.

CC2640R2F

0 Clément over 6 years ago in reply to LazyHD

TI__Guru** 101540 points

Hi,

I am not familiar with TWS / I don't understand what you are referring to.

Regards,

0 LazyHD over 6 years ago in reply to Clément

Expert 1060 points

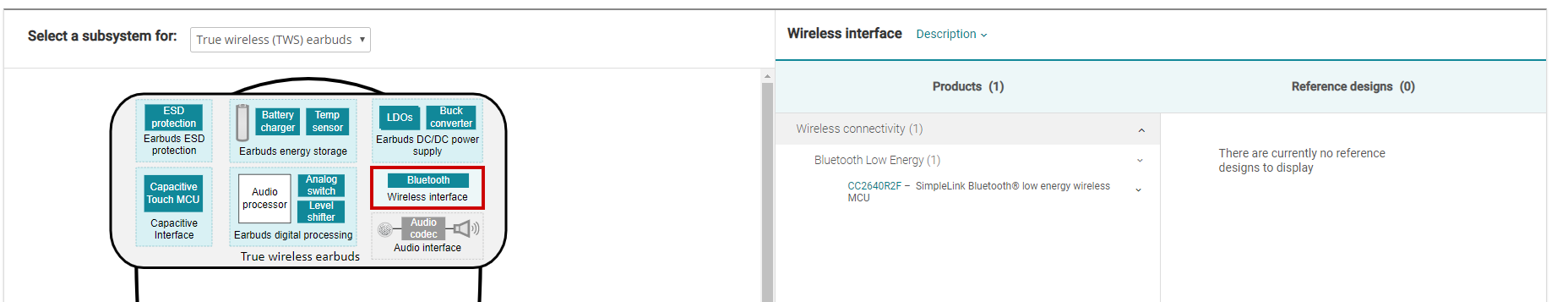

True wireless earbuds, if you go to http://www.ti.com/solution/headsets-headphones-earbuds?variantid=31741&subsystemid=31884

You can find that CC2640R2F is recommend for the bluetooth part of this design. I want to understand how can I implement this from a high level perspective.

Thanks

0 Clément over 6 years ago in reply to LazyHD

TI__Guru** 101540 points

Hi again,

Thank you for the link. Give me a few days (one week) to be back to you.

In the meantime, you can contact your local sales teams to see how they ca help you.

Kind regards,

0 LazyHD over 6 years ago in reply to Clément

Expert 1060 points

Any update on this ?

0 Clément over 6 years ago in reply to LazyHD

TI__Guru** 101540 points

Hi,

Thank you for your patience.

I don't think CC2640R2 is the right device for this implementation, I would rather used CC2642R.

TI does not provide directly code for TWS implementation. However, TI just released an Audio Plugin providing a set of examples to stream audio over RF (including streaming over BLE, SUb-1GHz and WiFi). I think this could be a good starting point for you.

Best regards,

0 LazyHD over 6 years ago in reply to Clément

Expert 1060 points

Hi Clement,

Thank you for you response.

I am not asking for an example code, I just want to understand how it should be implemented from an architectural point of view.

We will use the audio plugin to stream from a phone to one of the earbuds and this is clear, but from architecture point of view how is the audio streamed to the second earbud ? Is it how I described in my first post ? Or how is the standard implementation for this using CC2642R.

Thanks again
