CC2642R: What is the VOH AND VOL

pragash sangaran78

Part Number: CC2642R

VOH - Lowest GPIO output voltage reliably interpreted as a High

VOL - Highest GPIO output voltage reliably interpreted as a Low

However, the datasheet of CC2642R only has typical value in the datasheet. Can I have the lowest and highest value, as defined above, for CC2642R?

over 5 years ago

0 PM over 5 years ago

TI__Mastermind 27145 points

Hi,

VOH = 0.8*VDDS (Min High)

VOL = 0.2*VDDS ( Max Low)

Thanks,

0 pragash sangaran78 over 5 years ago in reply to PM

Genius 3510 points

hi,

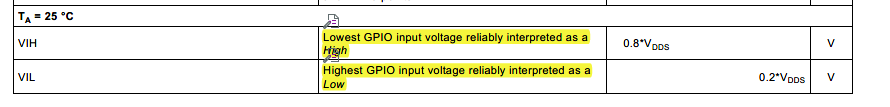

are you saying that VIH = VOH and VIL = VOL?

VIH - Lowest GPIO input voltage reliably interpreted as a High

VIL - Highest GPIO input voltage reliably interpreted as a Low

0 pragash sangaran78 over 5 years ago in reply to pragash sangaran78

Genius 3510 points

0 TER over 5 years ago in reply to pragash sangaran78

TI__Guru**** 317180 points

The VOH/ VOL values will be dependent on the current draw. The numbers in the datasheet are given for 4 mA/ 8 mA load. If the load on a DIO is lower the VOL/ VOH values will be closer to the rails.

0 pragash sangaran78 over 5 years ago in reply to TER

Genius 3510 points

can i know the limit for the "low" or "Lower"

if i draw maximum currents, 4mA and 8mA, VOH and VOL is as given in the datasheet. if i draw lower current than the maximum, it will follow the rails. how much lower it has to be from the maximum currents?

0 PM over 5 years ago in reply to pragash sangaran78

TI__Mastermind 27145 points

Hi,

If you have our Launchpad then you can test at your desired load current.

Thanks,
