CC2652R: While Simple_Peripheral project enable PTM, CC2652 cannot connect to the master

Jerry Kuo

Part Number: CC2652R
Other Parts Discussed in Thread: SYSCONFIG

Hi team,

Customer would like to add PTM into Simple_Peripheral. With SDK4.20, the PTM can be enabled by SysConfig (as below link). However, after enable PTM by SysConfig, the CC2652 cannot be connected by the master. We use LiteBlue as master.

file:///C:/ti/simplelink_cc13x2_26x2_sdk_4_20_00_35/docs/ble5stack/ble_user_guide/html/ble-stack-5.x/creating-a-custom-bluetooth-low-energy-application-cc13x2_26x2.html#sec-using-production-test-mode

over 5 years ago

0 Elin W over 5 years ago

TI__Genius 14845 points

Hi Jerry,

Is the peripheral device still advertising and what kind of error message are you getting when trying to connect? If you have any sniffer logs, can you share them?

Can you see the peripheral device on the phone?

Have you tried any other phones or apps?

Thanks,
Elin

0 Jerry Kuo over 5 years ago in reply to Elin W

TI__Expert 4360 points

Hi Elin,

Please see the Frontline sniff log of NG case (enable PTM) and OK case (official release without PTM).

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/538/0807_5F00_Simple_5F00_Peripheral_5F00_PTM_5F00_NG.7z

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/538/0807_5F00_Simple_5F00_Peripheral_5F00_OK.7z

At iPhone, LiteBlue can see the Simple Peripheral device.

We try 3 iPhones. All are the same problem.

0 Jerry Kuo over 5 years ago in reply to Jerry Kuo

TI__Expert 4360 points

Hi Elin,

Do you have any update ?

Thank you.

0 Elin W over 5 years ago in reply to Jerry Kuo

TI__Genius 14845 points

Hi Jerry,

Thanks for your patience.

Unfortunately, I cannot open the files. I have the ComProbe Protocol Analysis System downloaded (which I assume is what you mean by Frontline sniffer) but I cannot open the files there. Do you have any other sniffer captures or can you convert them to a format that I can open?

Thanks,
Elin

0 Jerry Kuo over 5 years ago in reply to Elin W

TI__Expert 4360 points

Hi Elin,

It looks the previous archive miss some files. I upload again.

0807_Simple_Peripheral_PTM_NG.zip

0807_Simple_Peripheral_OK.zip

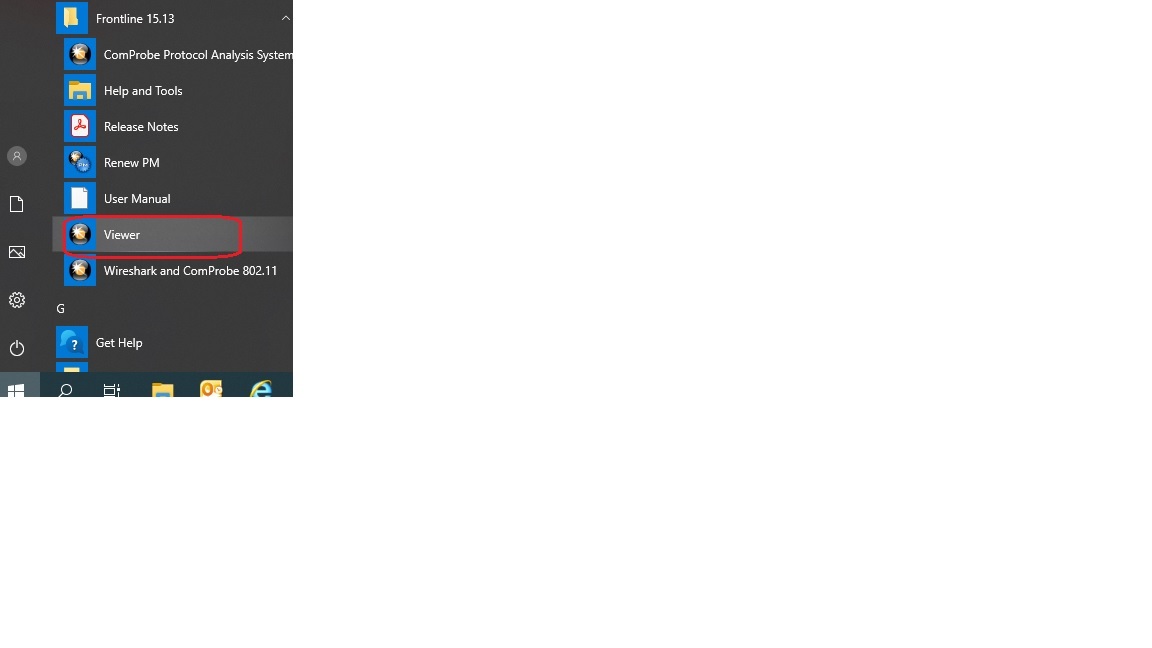

Please use Viewer to open the log.

0 Kimi Hu over 5 years ago in reply to Jerry Kuo

Mastermind 6115 points

Hi Jerry,

Do you change any application? In my experiment, you should create a scenario to enter PTM mode(exp. detect button when power on). You can refer your wiki

https://processors.wiki.ti.com/index.php/PTM

0 Jerry Kuo over 5 years ago in reply to Kimi Hu

TI__Expert 4360 points

Hi Kimi,

Thanks for your remind. I know this.

The scenario is after enable PTM by SysConfig, the CC2652 cannot be connected by the master (LiteBlue). The basic connection function cannot work. I haven't verify PTM.

0 Kimi Hu over 5 years ago in reply to Jerry Kuo

Mastermind 6115 points

Hi Jerry,

After enable PTM in sysconfig, if you disable HCI_EXT_EnablePTMCmd() the application can connect with iPhone. As my understanding, you only can enter one of them(PTM mode or application mode).

0 Jerry Kuo over 5 years ago in reply to Kimi Hu

TI__Expert 4360 points

Hi Kimi,

Yes, after comment out " HCI_EXT_EnablePTMCmd();", CC2652 cannot be connected. Thank you.

It seems the example code don't check the GPIO during bootup, then directly enter PTM.
