CC2640: DTM CC2640

Bhushan Gopala Reddy

Prodigy 60 points

Part Number: CC2640

Hi,

Software: ble_sdk_2_02_05_02

Project: simplelink\ble_sdk_2_02_05_02\examples\cc2650em\host_test

BT Tool : simplelink\ble_sdk_2_02_05_02\tools\btool

Document: www.ti.com/.../swra530.pdf

I am using the SmartRF06 evaluation board and connected to a custom C2640 over the 10 pin arm cortex connector.

I want to test DTM using the BT tool. I keep getting an error while testing.

Regards,

Bhushan

over 5 years ago

0 Alec May over 5 years ago

TI__Genius 17265 points

Hi Bhushan,

I have assigned an expert to comment on this.

Best Regards,
Alec

0 Ammar N over 5 years ago

TI__Mastermind 25810 points

Hey Bhushan,

Do you mind trying to attach the screenshots again? It seems the files failed to attach. For me, this usually happens when I directly copy and paste images into the reply. Please try using the Insert Media button this time and see if it works!

0 Bhushan Gopala Reddy over 5 years ago in reply to Ammar N

Prodigy 60 points

0 Ammar N over 5 years ago in reply to Bhushan Gopala Reddy

TI__Mastermind 25810 points

Hey Bhushan,

Can you try reflashing the boards with both the app and stack hex images for host test? Once flashed, hit the reset button on the device before opening BTool. I noticed this usually resolves this warning.

0 Bhushan Gopala Reddy over 5 years ago in reply to Ammar N

Prodigy 60 points

Hi Ammar,

I tried to reflash the board with both app and stack hex image. I am still facing the same issue.

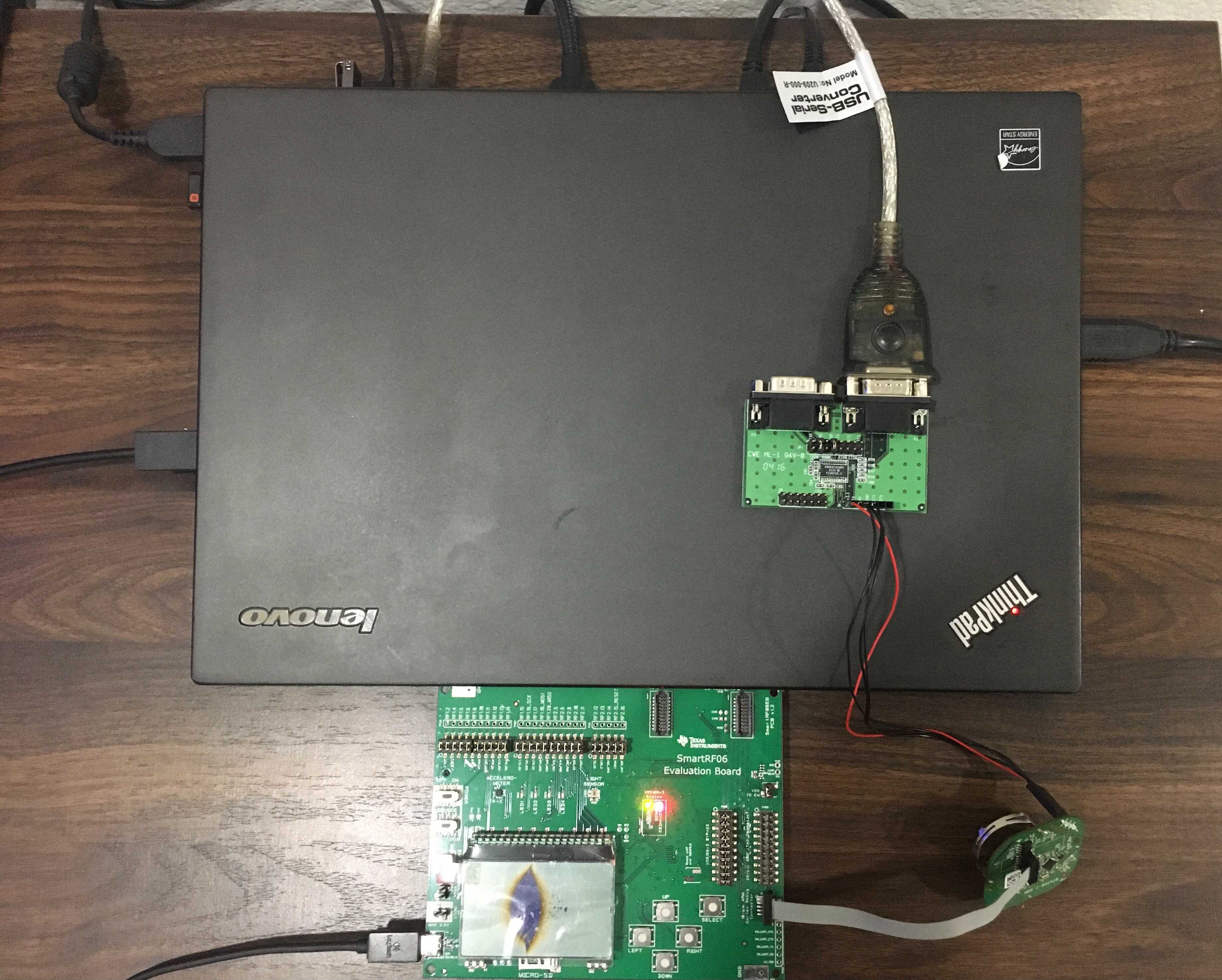

Do you think something is wrong with my setup? I am attaching my setup below.

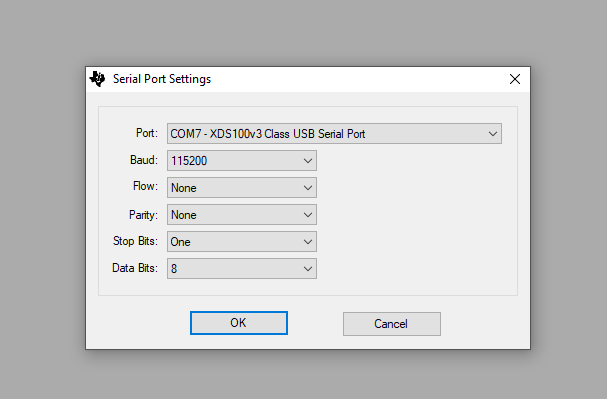

I have tried both serial ports. None of them work.

Regards,

Bhushan

0 Ammar N over 5 years ago in reply to Bhushan Gopala Reddy

TI__Mastermind 25810 points

Are you able to flash any image to the device? Perhaps you can verify the hardware setup by flashing a basic driver example to toggle an LED on the board.

I don't see the UART Backchannel Enable jumper on the Evaluation board. You'll need this to connect the device to the UART port on your PC... See section 5.1.1 here: www.ti.com/.../swru321b.pdf

Once we verify the hardware is being flashed correctly we can investigate further.

0 Bhushan Gopala Reddy over 5 years ago in reply to Ammar N

Prodigy 60 points

Hi Ammar,

The issue was the RS232 hardware I was using. I switched the hardware. Everything works fine now.

Regards,

Bhushan

0 Ammar N over 5 years ago in reply to Bhushan Gopala Reddy

TI__Mastermind 25810 points

Thanks for sharing the issue! Glad you got it working. :)
