CC2651P3: Does it supports Proprietary RF to set 20 dBm at 2.4Ghz

Kumaravel N

Part Number: CC2651P3
Other Parts Discussed in Thread: CC2652P7

Tool/software:

Hi Sir/Madam,

I am Confused on chooseing a MCU under CC26xx series in which I am working on Proprietary RF for 20 dBm output. Please suggest me a MCU that work with Proprietary RF Power Amplifer with an output gain of 20dBm.

4 months ago

0 RGW 4 months ago

TI__Mastermind 33100 points

Hi,

All the CC26xxP devices can deliver up to 20 dBm output power and proprietary RF.

Refer to reference design LP-CC2651P3: https://www.ti.com/lit/zip/swrc375

In order to achieve 20 dBm, The PA section must be supplied by VDDS which is the default BOM for LP-CC2651P3.

0 Kumaravel N 4 months ago in reply to RGW

Intellectual 473 points

Hi RGW,

Can you please suggest me improvement on the board design we made with CC2652P7 with information attached within this message

ThankyouBOM.pdf Placement file.pdf PCB Board.pdf

0 Kumaravel N 4 months ago in reply to Kumaravel N

Intellectual 473 points

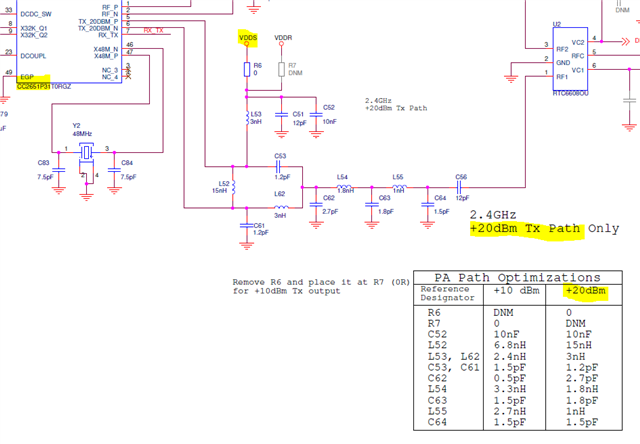

Board Schematic

0 ZC 4 months ago in reply to Kumaravel N

TI__Genius 17955 points

Hi,

Please submit your design using our submission portal, 2.4 GHz Design Review Submission: https://www.ti.com/tool/SIMPLELINK-2-4GHZ-DESIGN-REVIEWS

This helps us with internal tracking.

Regards,

Zack
