CC430F6137 Debugger connection issue

To be able to comment on this we need a schematic or at least the part of the schematic showing the CC430 connections.

Dear TER,

As requested,pls find the attached debugger section part.

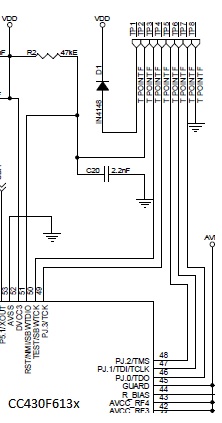

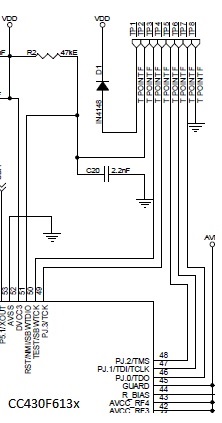

From the test points TP2 to TP7, I have given 14 pin JTAG connections.The connection details are as follows.

1. TP2-Jtag pin 11(NMI).

2.TP3-NC

3.TP4-Jtag pin 7(TCK)

4.TP5-Jtag pin 5(TMS).

5.TP6-Jtag pin 3(TCLK).

6.TP7-Jtag pin 1(TDA).

7.TP1-Jtag pin 2(VDD).

8.TP8-Jtg pin 9(GND).

And I hav doubt that whether the crystal will effect the circuit for debug connection.

Hi,

You do not have the correct interface, see page 23 in http://www.ti.com/lit/ug/slau278p/slau278p.pdf. remember to press "find device" in smartRF studio if you are to use this tool with your cc430.

Sir,

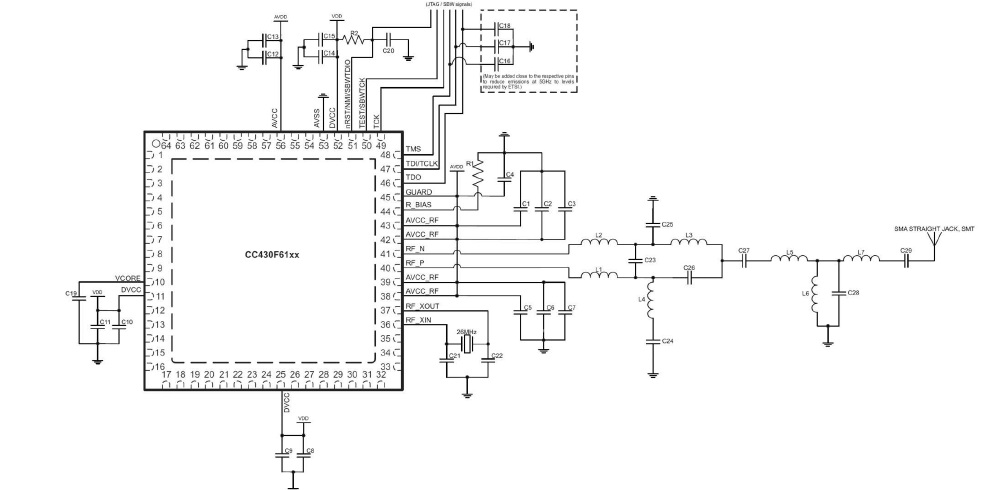

I have my own prototype model with cc430f6137 , i designed the layout with balun circuits (868 mhz).

i procured em430f6137rf900 , in that board, they have designed cc430f6137 without a balun circuits(868 mhs)

i have a working code for rf transmitting and  receiving , i am not able to transmit or receive.

does this problem might be of balun circuits?
