MSP-EXP430F5529 with TRF7970ATB

Muralidhar Reddy

Intellectual 310 points

Other Parts Discussed in Thread: MSP430F5529, UNIFLASH

How to start NFC?

I start NFC using NFC player, It is failing

over 10 years ago

0 Katie Pier over 10 years ago

TI__Guru* 77971 points

Hi Muralidhar,

I have moved this post to the Other wireless technologies forum since the question appears to be about this topic.
Can you provide some more details or maybe screenshots to help understand your issue? e2e.ti.com/.../149.4-3-inserting-an-image-on-e2e

Regards,
Katie

0 Muralidhar Reddy over 10 years ago in reply to Katie Pier

Intellectual 310 points

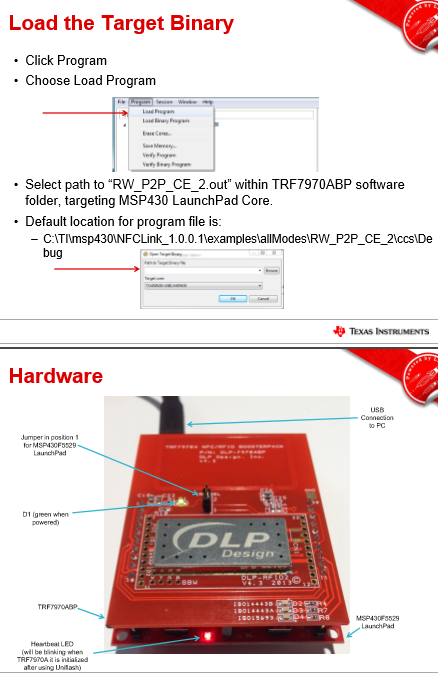

After following this procedure .The Heartbeat LED is Not blinking. and so unable to start NFC

0 Ralph Jacobi over 10 years ago in reply to Muralidhar Reddy

TI__Guru*** 135355 points

Hello Muralidhar,

It looks like you are viewing a User Guide from an older version of NFCLink. Please download the newest version of NFCLink and follow the latest User's Guide. The newest version can be downloaded at http://www.ti.com/tool/nfclink and the User's Guide can be found at www.ti.com/.../slou386b.pdf

Also please verify which hardware you have when using the User's Guide as it will explain which folder to find the associated files for that setup.

0 Muralidhar Reddy over 10 years ago in reply to Ralph Jacobi

Intellectual 310 points

slou386b.pdf is for MSP430F5529 Experimenters board but I need instructions for MSP430F5529 Launch pad

0 Ralph Jacobi over 10 years ago in reply to Muralidhar Reddy

TI__Guru*** 135355 points

Hello Muralidhar,

The User's Guide also has information for the LaunchPad. Page 11 will explain where to find the LaunchPad firmware files. Page 8 describes the hardware setup. The usage of the NFCLink GUI will not differ between the two hardware platforms, and the User's Guide provides information on the LED indicators for both boards.

0 Muralidhar Reddy over 10 years ago in reply to Ralph Jacobi

Intellectual 310 points

I have also referred slou386b.pdf page 11. I have tried flashing with .out files of lp board and still its not working fine

0 Ralph Jacobi over 10 years ago in reply to Muralidhar Reddy

TI__Guru*** 135355 points

Have you tried to reset or power cycle the 5529 LaunchPad after loading the firmware? You will need to power cycle it after loading the firmware in order for it to function.

I just loaded up the .out file found at C:\TI\msp430\NFCLink_1.0.0.3\examples\boards\msp430f5529_lp\allModes\RW_P2P_CE_2\ccs\Debug\RW_P2P_CE_2.out on TI Uniflash 3.1.0 and the board comes up fine and connects to NFCLink with no problems.

0 Muralidhar Reddy over 10 years ago in reply to Ralph Jacobi

Intellectual 310 points

Thank you Ralph
