TRF7970A: Set the reader to send just the carrier signal- 13.56 MHz

Preetha Muralidharan97

Part Number: TRF7970A
Other Parts Discussed in Thread: MSP-FET

Hello,

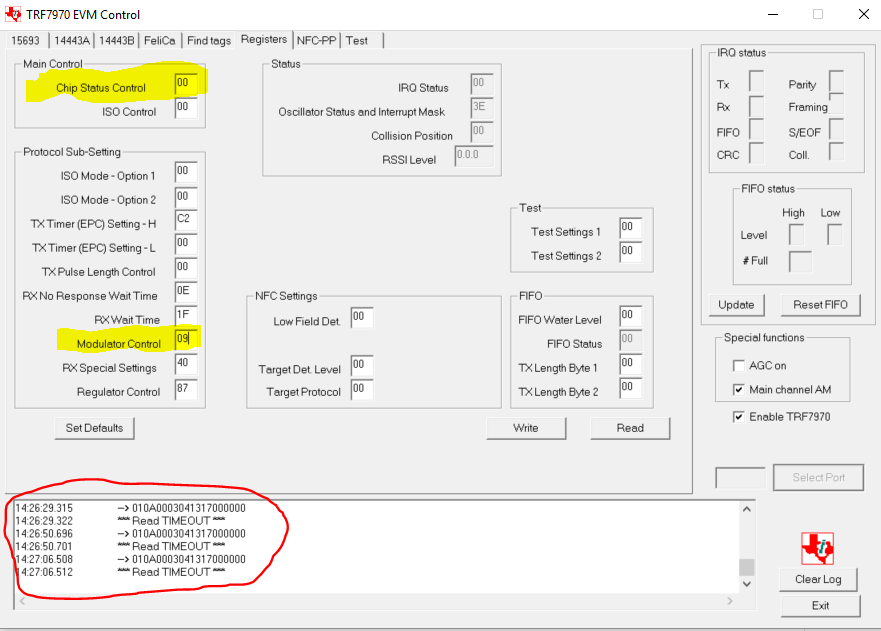

I was trying to configure the reader to send the carrier signal-13.56MHz using the TRF7970 EVM Control GUI by making the following changes:

Chip Status Control is 0x00 and Modulator Control is Register 0x09

But I am unable to Write this into the device no matter what my settings are.

Looking forward to hearing from you.

Thanks,

Preetha

over 7 years ago

0 Ralph Jacobi over 7 years ago

TI__Guru*** 135355 points

Hello Preetha,

What COM port are you connected to?

Have you installed the drivers from www.silabs.com/.../usb-to-uart-bridge-vcp-drivers ?

0 Preetha Muralidharan97 over 7 years ago in reply to Ralph Jacobi

Prodigy 70 points

Hi Ralph,

I am connected to COM 1 and have also installed the driver.

Thanks,

Preetha

0 Ralph Jacobi over 7 years ago in reply to Preetha Muralidharan97

TI__Guru*** 135355 points

Hello Preetha,

My guess then would be that the EVM firmware was overwritten.

The firmware can be re-flashed from this code: www.ti.com/.../sloc300

You will need an MSP-FET for that.

0 Preetha Muralidharan97 over 7 years ago in reply to Ralph Jacobi

Prodigy 70 points

Thanks Ralph.
