CC2530EM: Debug

John Man

Part Number: CC2530EM

Tool/software:

Dear sir,

In CC2530EM SCH, there are two connector, P1 and P2. What is the purpose of each?

I assume at least one connector for debug purpose. But for debug purpose, there is only two I/O pins needed, P2.1 & P2.2 and a reset_N is needed as well. None of P1&P2 is in such configuration.

Pls advise.

Thanks

John

9 months ago

0 Alex Fager 9 months ago

TI__Genius 12391 points

Hello John,

For now please reference the Datasheet Table 1 below on pin descriptions.

Thanks,
Alex

0 John Man 9 months ago in reply to Alex Fager

Prodigy 120 points

Hi Alex,

I mean both P1 & P2 are not dedicated for debug and programming. That is unusual.

Can you explain?

Thanks

John

0 Alex Fager 9 months ago in reply to John Man

TI__Genius 12391 points

Hello John,

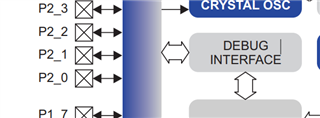

Pin P2_1 is attached to the debug interface:

DEBUG_CLK (P2_2) and DEBUG_DATA (P2_1) are needed for debug.

Please indicate the specific pins you are discussing in the following picture:

Thanks,
Alex F
