CCS/CC1310: working with collecter and multiple sensors

Mervin Geo

Intellectual 685 points

Part Number: CC1310

Tool/software: Code Composer Studio

Hi I used the example from project 0 and i additionally made 2 sensors to connect to 1 collector but I need to differenciate the sensors as in sensor 1 and sensor 2 and seperate the results i get from the sensor.How do i do that? am very new to this please advise

over 7 years ago

0 IUsedToBeARealPerson (M-W) over 7 years ago

TI__Guru 58425 points

Hi,

What project zero are you referring to?

I recommend you have a look on the Simplelink Academy trainings available on propriety RF, it shows for example how our WSN Node example works with multiple sensors.

dev.ti.com/.../

0 Mervin Geo over 7 years ago in reply to IUsedToBeARealPerson (M-W)

Intellectual 685 points

But it uses easylink . I only can use TI 15.4 stack

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

Each sensor node in TI 15.4 Stack has a specific short address so you can use it.

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

ok bro noted thanks and am trying to display the sensors mac addreess as well this is my code...how to modify please advise

LCD_WRITE_STRING_VALUE("Sensor number ID:", pSrcAddr->addrMode );

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

I suppose you should use "LCD_WRITE_STRING_VALUE("Sensor number ID:", pSrcAddr->addrMode, 10, 5 );"

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

well bro but it just shows me 2 and not the mac address how to do whereby it shows the mac address of the sensors?

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

MAC address should be in pSrcAddr->extAddr but if your addrMode is 2, it means using Short address and pSrcAddr only has pSrcAddr->shortAddr information.

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

mmm..yea what is the code to make it display the 64 bits address

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

Do you mean to get the sensor 64 bits address on sensor code or do you mean to get it on collector node?

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

ok see I have connected the sensors to 1 collector and using putty now,as it displays the sensors reading I want it to display the mac address of both the sensors in the putty

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

When sensor joins collector, cllcDeviceJoiningCB in collector.c will be invoked and you can have device 64 bit address in pDevInfo->extAddress in cllcDeviceJoiningCB. If you wand to display 64 bits address, you can try to do it in cllcDeviceJoiningCB in collector.c

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

static ApiMac_assocStatus_t cllcDeviceJoiningCB(
ApiMac_deviceDescriptor_t *pDevInfo,
ApiMac_capabilityInfo_t *pCapInfo)
{
ApiMac_assocStatus_t status;

/* Make sure the device is in our PAN */
if(pDevInfo->panID == devicePanId)
{
/* Update the user that a device is joining */
status = Csf_deviceUpdate(pDevInfo, pCapInfo);
if(status==ApiMac_assocStatus_success)
{
#ifdef FEATURE_MAC_SECURITY
/* Add device to security device table */
Cllc_addSecDevice(pDevInfo->panID,
pDevInfo->shortAddress,
&pDevInfo->extAddress, 0);
#endif /* FEATURE_MAC_SECURITY */

Util_setEvent(&Collector_events, COLLECTOR_CONFIG_EVT);
}
}
else
{
status = ApiMac_assocStatus_panAccessDenied;
}
return (status);
}

these r the code in collector.c and how to I change these and the code in csf.h:

void Csf_deviceSensorDataUpdate(ApiMac_sAddr_t *pSrcAddr, int8_t rssi,
Smsgs_sensorMsg_t *pMsg)

{

Board_Led_toggle(board_led_type_LED2);
LCD_WRITE_STRING_VALUE("Sensor number ID:",pSrcAddr->panID,10,5);
LCD_WRITE_STRING_VALUE("Temperature=", pMsg->tempSensor.objectTemp, 10, 6);

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

I counldn't understand what you intend to ask. Can you elaborate?

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

As in bro these are the codes now.Please help me change so that it can display the mac addresses of the sensors

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

You can try to put UART printf of 64 bits address in the following code section of cllcDeviceJoiningCB().

if(status==ApiMac_assocStatus_success)

{

#ifdef FEATURE_MAC_SECURITY

/* Add device to security device table */

Cllc_addSecDevice(pDevInfo->panID,

pDevInfo->shortAddress,

&pDevInfo->extAddress, 0);

#endif /* FEATURE_MAC_SECURITY */

//Print pDevInfo->extAddress here

Util_setEvent(&Collector_events, COLLECTOR_CONFIG_EVT);

}

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

no bro it does not work...

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

Can you show me you code?

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

LCD_WRITE_STRING_VALUE("sensor id",pDevInfo->extAddress);

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

Try to use "LCD_WRITE_STRING_VALUE("sensor id: 0x", pDevInfo->extAddress, 16, 5);" instead of "LCD_WRITE_STRING_VALUE("sensor id",pDevInfo->extAddress);"

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

u mean write this i the csf.c file?it says arguement type of uint8_ t is not compatible with uint16_t

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

bro if I did that it shows both sensors like 0xB44.......it subbosed to be different numbers...

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

Try to following code:

if(status==ApiMac_assocStatus_success)

{

#ifdef FEATURE_MAC_SECURITY

/* Add device to security device table */

Cllc_addSecDevice(pDevInfo->panID,

pDevInfo->shortAddress,

&pDevInfo->extAddress, 0);

#endif /* FEATURE_MAC_SECURITY */

//Print pDevInfo->extAddress here

LCD_WRITE_STRING_VALUE("sensor id: 0x", pDevInfo->extAddress, 16, 5);

Util_setEvent(&Collector_events, COLLECTOR_CONFIG_EVT);

}

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

nope shows alot of errors i think must be coded at the csf.c folder under the csf sensor update

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

You have to add "#include "board_lcd.h"" in the beginning of collector.c to use LCD_WRITE_STRING_VALUE.

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

yes bro now no errors but both sensors shows 0xB44 but i need to make it 64 bit so that it will show the different mac addresses

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

If you set a breakpoint on "Util_setEvent(&Collector_events, COLLECTOR_CONFIG_EVT);" in cllcDeviceJoiningCB() to check pDevInfo->extAddress in debug watch window, what's the value do you see?

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

0x00000000{ fxntablePtr =0 x20004B00.....

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

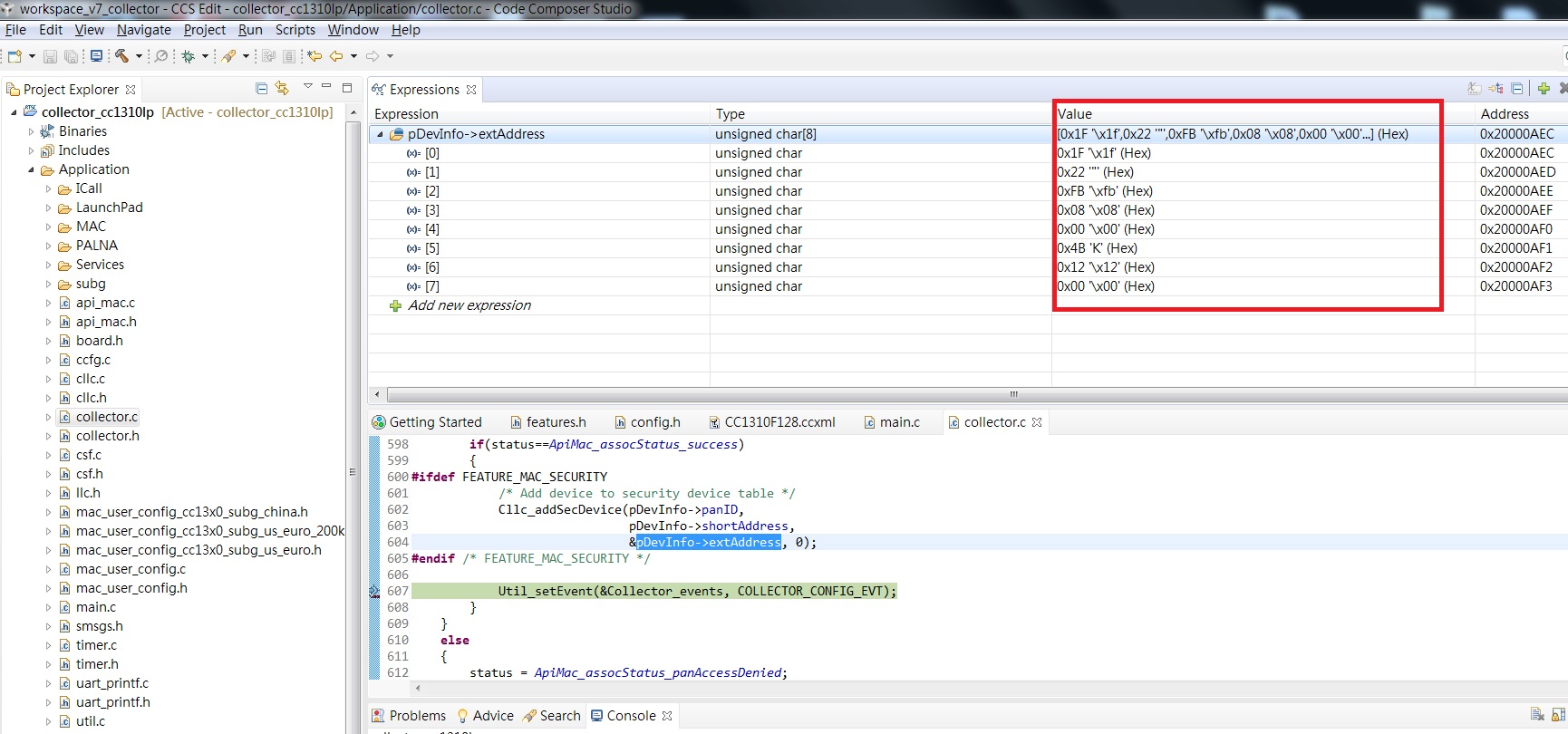

Can you do a screenshot to show me the result?

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

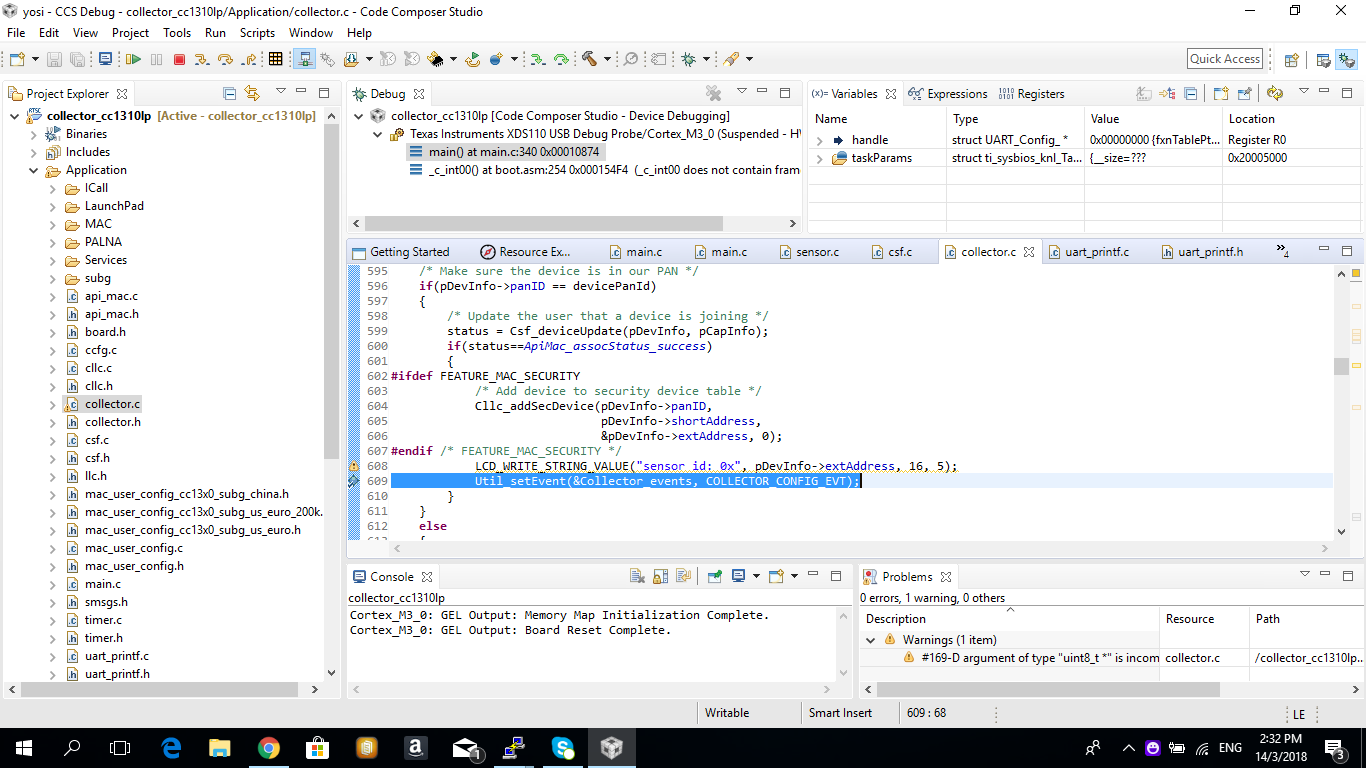

here you go bro

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

I don't see you check check pDevInfo->extAddress in your screen shot.

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

I do the test on my LAUNCHXL-CC1310 and I can see 64 bits address shown on expressions window.

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

ok bro but in this case How to make the mac address display at 64bits, 8bytes

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

static uint16_t getTheFirstDevice(void)
{
uint16_t found = CSF_INVALID_SHORT_ADDR;
if(pNV != NULL)
{
uint16_t numEntries;

numEntries = Csf_getNumDeviceListEntries();

if(numEntries > 0)
{
NVINTF_itemID_t id;

/* Setup NV ID for the device list records */
id.systemID = NVINTF_SYSID_APP;
id.itemID = CSF_NV_DEVICELIST_ID;
id.subID = 0;
int count=0;
char buf[17];
const static char table[]={'0','1','2','3','4','5','6','7','8','9','A','B','C','D','E','F'};
while(id.subID < CSF_MAX_DEVICELIST_IDS)
{
Llc_deviceListItem_t item;
uint8_t stat;

/* Read Network Information from NV */
stat = pNV->readItem(id, 0, sizeof(Llc_deviceListItem_t),
&item);
if(stat == NVINTF_SUCCESS)
{
for(int i=0;i<8;i ++){
unsigned char c = item.devInfo.extAddress[i];
unsigned int lowbyte= c & 0x0f;
unsigned int highbyte=(c>>4)&0x0f;
buf[2 * i] = table[highbyte];
buf[2*i+1]=table[lowbyte];
}
buf[16] = '\0';
LCD_WRITE_STRING(buf,1);
if(++count==numEntries)
//und = item.devInfo.shortAddress;
break;
}

id.subID++;
}

}
}
return(found);
}

this is the only clue I was given that this is how it should be edited by my superviser

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

I suppose you can use sprintf to format address into a string buffer and output the buffer by LCD_WRITE_STRING

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

ok bro so in my case whats the code for that??

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

char buf[16];

sprintf(buf,”%x%x%x%x%x%x%x%x”, pDevInfo->extAddress[0], pDevInfo->extAddress[1], pDevInfo->extAddress[2], pDevInfo->extAddress[3], pDevInfo->extAddress[4], pDevInfo->extAddress[5], pDevInfo->extAddress[6], pDevInfo->extAddress[7]);

LCD_WRITE_STRING(buf,1);

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

where to place this exactly?

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

You can put it in Cllc_addSecDevice().

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

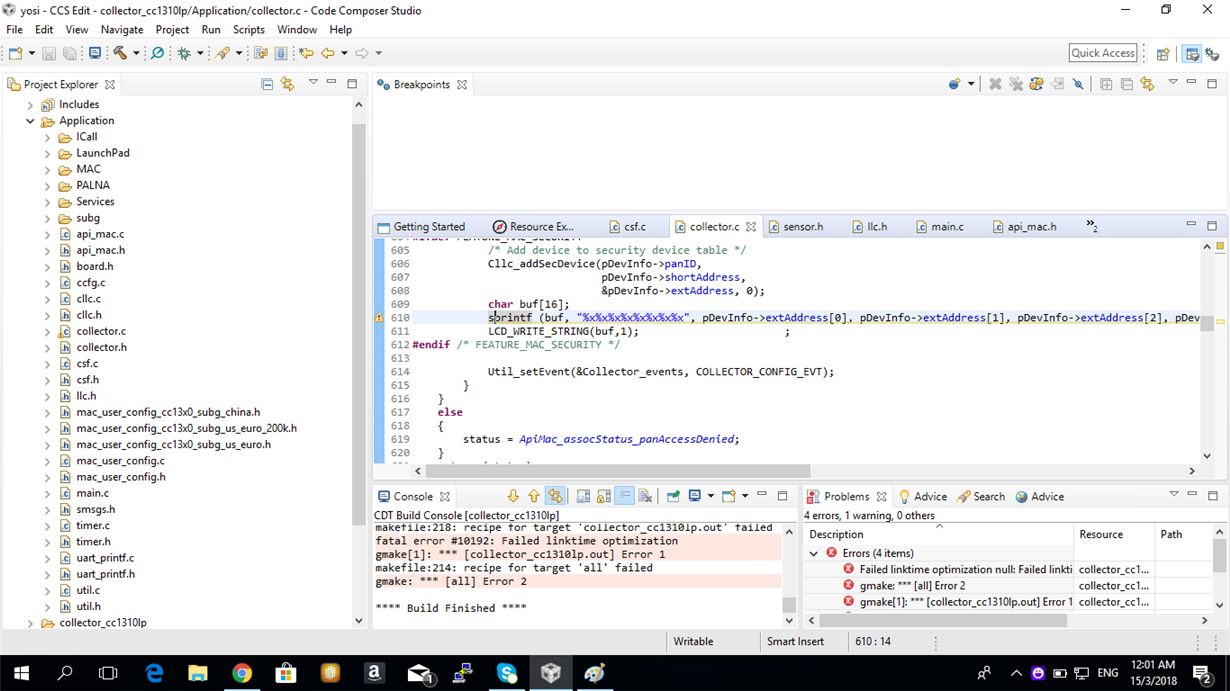

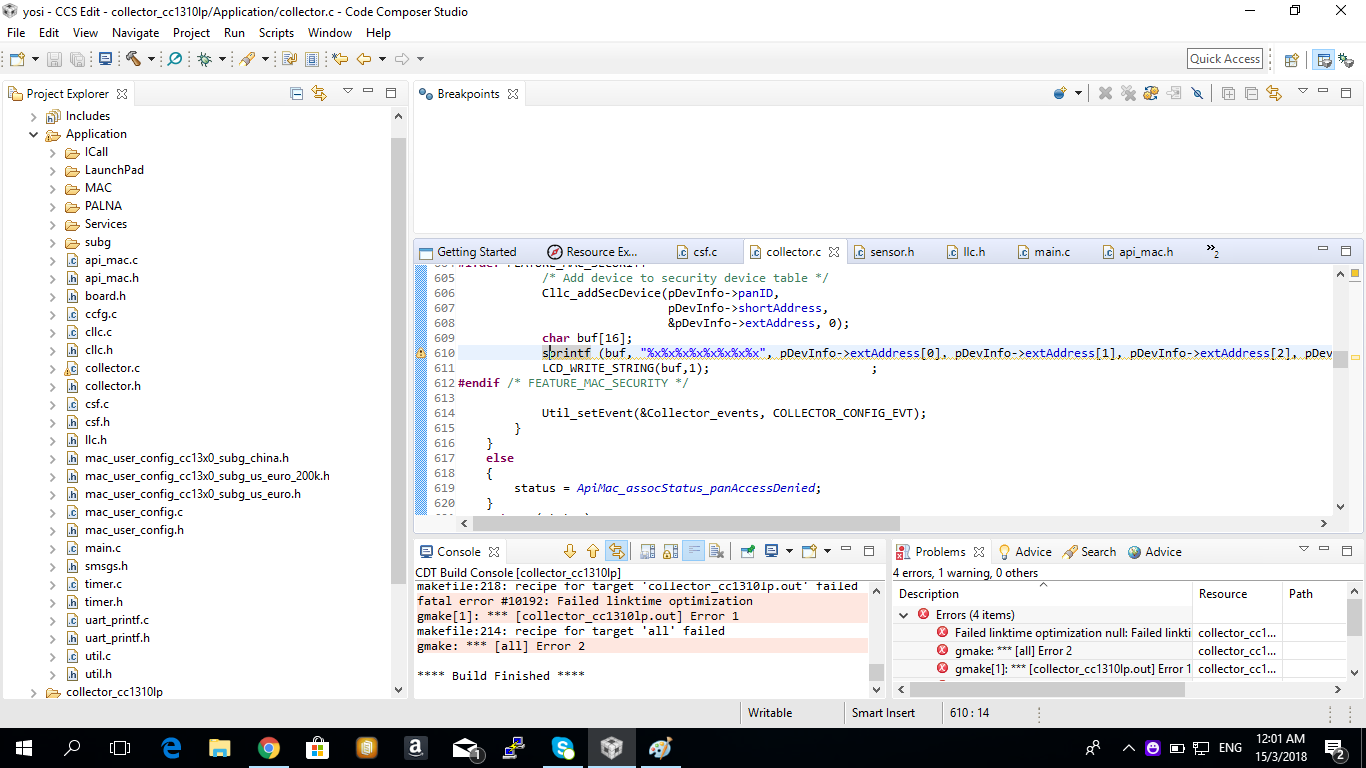

I find sprintf would causes some problem to the program so I suggest you to use the following codes instead of sprintf and LCD_WRITE_STRING.

ApiMac_assocStatus_t Csf_deviceUpdate(ApiMac_deviceDescriptor_t *pDevInfo,
                                      ApiMac_capabilityInfo_t *pCapInfo)
{
    ApiMac_assocStatus_t status = ApiMac_assocStatus_success;
    ApiMac_sAddr_t shortAddr;
    ApiMac_sAddr_t extAddr;

    shortAddr.addrMode = ApiMac_addrType_short;
    shortAddr.addr.shortAddr = pDevInfo->shortAddress;

    extAddr.addrMode = ApiMac_addrType_extended;
    memcpy(&extAddr.addr.extAddr, &pDevInfo->extAddress, APIMAC_SADDR_EXT_LEN);

    /* Is the device in the black list? */
    if((findBlackListIndex(&shortAddr) >= 0)
       || (findBlackListIndex(&extAddr) >= 0))
    {
        /* Denied */
        status = ApiMac_assocStatus_panAccessDenied;

        LCD_WRITE_STRING_VALUE("Denied: 0x", pDevInfo->shortAddress, 16, 4);
    }
    else
    {
        /* Save the device information */
        Llc_deviceListItem_t dev;

        memcpy(&dev.devInfo, pDevInfo, sizeof(ApiMac_deviceDescriptor_t));
        memcpy(&dev.capInfo, pCapInfo, sizeof(ApiMac_capabilityInfo_t));
        dev.rxFrameCounter = 0;

        if(addDeviceListItem(&dev) == false)
        {
#ifdef NV_RESTORE
            status = ApiMac_assocStatus_panAtCapacity;

            LCD_WRITE_STRING_VALUE("Failed: 0x", pDevInfo->shortAddress,
                                   16, 4);
#else
            status = ApiMac_assocStatus_success;

            LCD_WRITE_STRING_VALUE("Joined: 0x", pDevInfo->shortAddress, 16, 4);
#endif
        }
        else
        {
            LCD_WRITE_STRING_VALUE("Joined: 0x", pDevInfo->shortAddress, 16, 4);

            LCD_WRITE_STRING("Ext Addr:",4);
            LCD_WRITE_STRING_VALUE("        0x", pDevInfo->extAddress[7], 16, 4);
            LCD_WRITE_STRING_VALUE("        0x", pDevInfo->extAddress[6], 16, 4);
            LCD_WRITE_STRING_VALUE("        0x", pDevInfo->extAddress[5], 16, 4);
            LCD_WRITE_STRING_VALUE("        0x", pDevInfo->extAddress[4], 16, 4);
            LCD_WRITE_STRING_VALUE("        0x", pDevInfo->extAddress[3], 16, 4);
            LCD_WRITE_STRING_VALUE("        0x", pDevInfo->extAddress[2], 16, 4);
            LCD_WRITE_STRING_VALUE("        0x", pDevInfo->extAddress[1], 16, 4);
            LCD_WRITE_STRING_VALUE("        0x", pDevInfo->extAddress[0], 16, 4);
        }
    }

#if defined(MT_CSF)
    MTCSF_deviceUpdateIndCB(pDevInfo, pCapInfo);
#endif

    /* Return the status of the joining device */
    return (status);
}

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

ok bro its working but is there a way to make it display in a 1 line as a mac address

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

Since sprintf doesn’t work in my test, I don’t know any other API can do this.

0 Mervin Geo over 7 years ago in reply to YiKai Chen

Intellectual 685 points

oh okay bro thank you so much for the helps it helped me alot.

0 YiKai Chen over 7 years ago in reply to Mervin Geo

Guru 735685 points

You are welcome and please help to press “This resolved my issue” button on the post that helps you.
