Tool/software: TI-RTOS
Hello everyone，

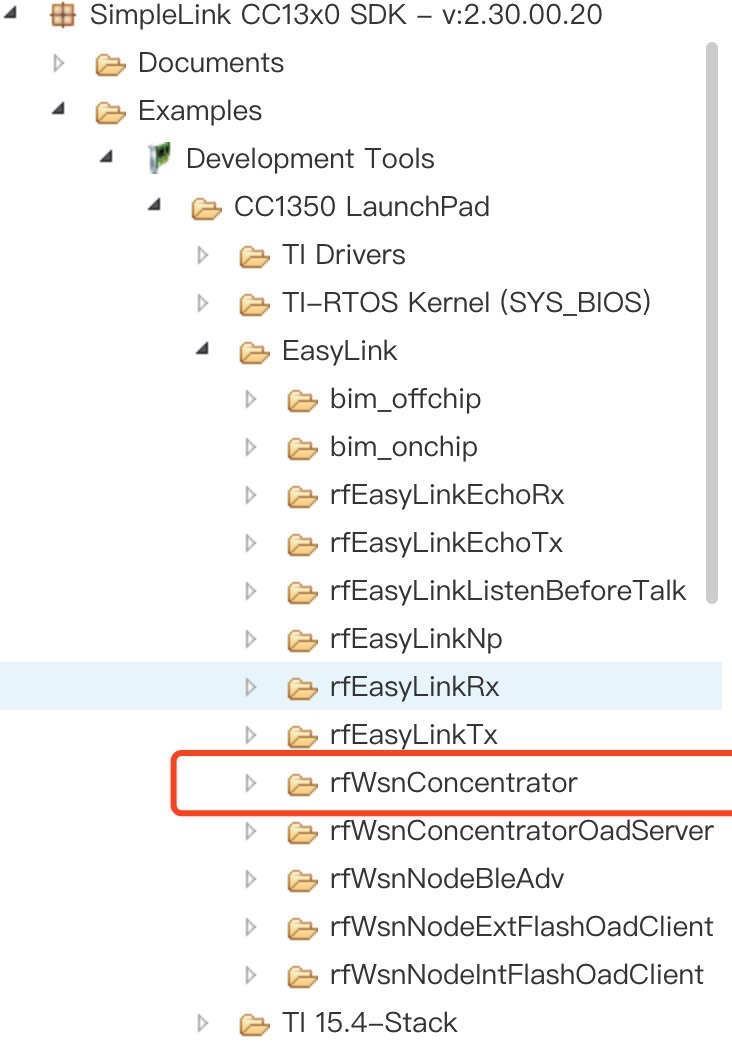

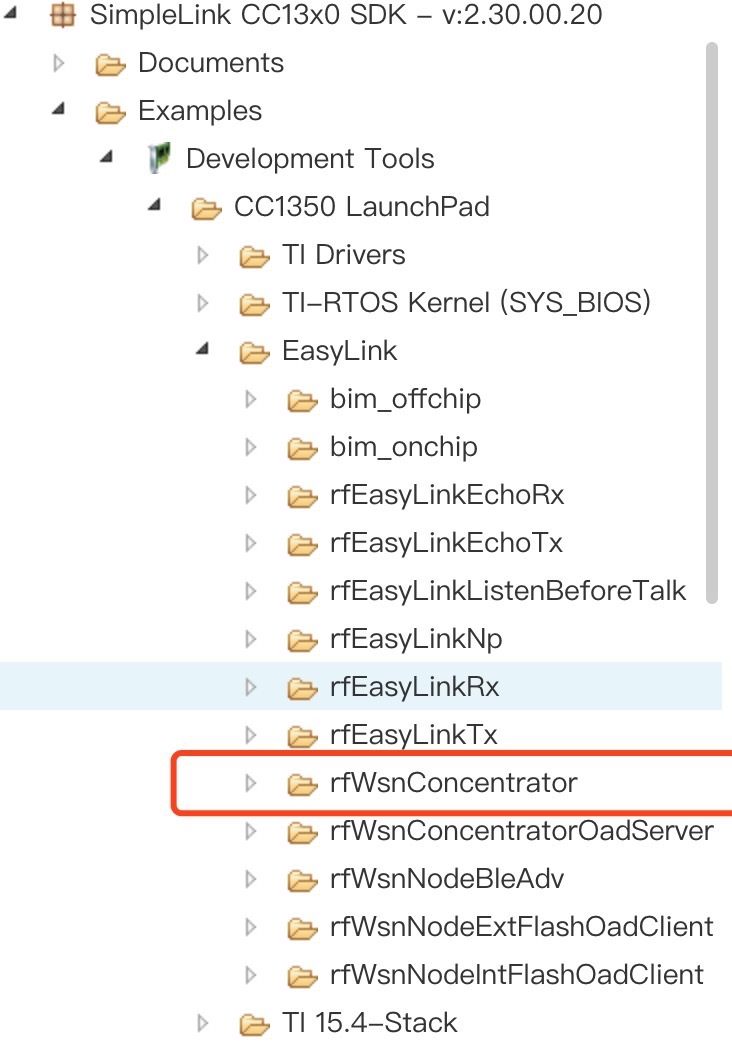

Rx example code in the figure. When 5 or 6 tx devices are sent continuously at a frequency of 1s, the rx end will die after a period of time.Sometimes a few minutes, sometimes dozens of minutes hang up, I did not confirm to the dead place temporarily, please help to confirm, I now hang up for a period of time after almost must show.
//*********************************************************************************
// Generated by SmartRF Studio version 2.10.0 (build#110)
// The applied template is compatible with CC13x2 SDK 2.20.xx.xx
// Device: CC1352R Rev. 1.1 (Rev. C)
//
//*********************************************************************************
//*********************************************************************************
// Parameter summary
// Address: 0
// Address0: 0xAA
// Address1: 0xBB
// Frequency: 915.00000 MHz
// Data Format: Serial mode disable
// Deviation: 5.000 kHz
// pktLen: 30
// 802.15.4g Mode: 0
// Select bit order to transmit PSDU octets:: 1
// Packet Length Config: Variable
// Max Packet Length: 128
// Packet Length: 20
// Packet Data: 255
// RX Filter BW: 34.1 kHz
// Symbol Rate: 19.99969 kBaud
// Sync Word Length: 32 Bits
// TX Power: 14 dBm (requires define CCFG_FORCE_VDDR_HH = 1 in ccfg.c, see CC13xx/CC26xx Technical Reference Manual)
// Whitening: No whitening
#include <ti/devices/DeviceFamily.h>
#include DeviceFamily_constructPath(driverlib/rf_mailbox.h)
#include DeviceFamily_constructPath(driverlib/rf_common_cmd.h)
#include DeviceFamily_constructPath(driverlib/rf_prop_cmd.h)
#include <ti/drivers/rf/RF.h>
#include DeviceFamily_constructPath(rf_patches/rf_patch_cpe_multi_protocol.h)
#include DeviceFamily_constructPath(rf_patches/rf_patch_rfe_genfsk.h)
#include DeviceFamily_constructPath(rf_patches/rf_patch_mce_sl_longrange.h)
#include "smartrf_settings.h"
// TI-RTOS RF Mode Object
RF_Mode RF_prop =
{
.rfMode = RF_MODE_AUTO,
.cpePatchFxn = &rf_patch_cpe_multi_protocol,
.mcePatchFxn = &rf_patch_mce_sl_longrange,
.rfePatchFxn = &rf_patch_rfe_genfsk,
};
// TX Power table
// The RF_TxPowerTable_DEFAULT_PA_ENTRY macro is defined in RF.h and requires the following arguments:
// RF_TxPowerTable_DEFAULT_PA_ENTRY(bias, gain, boost coefficient)
// See the Technical Reference Manual for further details about the "txPower" Command field.
// The PA settings require the CCFG_FORCE_VDDR_HH = 0 unless stated otherwise.
RF_TxPowerTable_Entry txPowerTable[TX_POWER_TABLE_SIZE] =
{
{-20, RF_TxPowerTable_DEFAULT_PA_ENTRY(0, 3, 0, 2) },
{-15, RF_TxPowerTable_DEFAULT_PA_ENTRY(1, 3, 0, 2) },
{-10, RF_TxPowerTable_DEFAULT_PA_ENTRY(2, 3, 0, 4) },
{-5, RF_TxPowerTable_DEFAULT_PA_ENTRY(4, 3, 0, 5) },
{0, RF_TxPowerTable_DEFAULT_PA_ENTRY(8, 3, 0, 7) },
{1, RF_TxPowerTable_DEFAULT_PA_ENTRY(9, 3, 0, 7) },
{2, RF_TxPowerTable_DEFAULT_PA_ENTRY(10, 3, 0, 9) },
{3, RF_TxPowerTable_DEFAULT_PA_ENTRY(11, 3, 0, 9) },
{4, RF_TxPowerTable_DEFAULT_PA_ENTRY(12, 3, 0, 11) },
{5, RF_TxPowerTable_DEFAULT_PA_ENTRY(14, 3, 0, 12) },
{6, RF_TxPowerTable_DEFAULT_PA_ENTRY(16, 3, 0, 14) },
{7, RF_TxPowerTable_DEFAULT_PA_ENTRY(8, 2, 0, 16) },
{8, RF_TxPowerTable_DEFAULT_PA_ENTRY(22, 3, 0, 32) },
{9, RF_TxPowerTable_DEFAULT_PA_ENTRY(26, 3, 0, 28) },
{10, RF_TxPowerTable_DEFAULT_PA_ENTRY(33, 3, 0, 55) },
{11, RF_TxPowerTable_DEFAULT_PA_ENTRY(23, 2, 0, 42) },
{12, RF_TxPowerTable_DEFAULT_PA_ENTRY(10, 0, 0, 58) },
{13, RF_TxPowerTable_DEFAULT_PA_ENTRY(20, 0, 0, 102) }, // The original PA value (12.5 dBm) have been rounded to an integer value.
{14, RF_TxPowerTable_DEFAULT_PA_ENTRY(63, 0, 1, 79) }, // This setting requires CCFG_FORCE_VDDR_HH = 1.
RF_TxPowerTable_TERMINATION_ENTRY
};
// Overrides for CMD_PROP_RADIO_DIV_SETUP
uint32_t pOverrides[] =
{
// override_use_patch_simplelink_long_range.xml
// PHY: Use MCE RAM patch, RFE RAM patch
MCE_RFE_OVERRIDE(1,0,0,1,0,0),
// PHY: Use MCE RAM patch only for Rx (0xE), use MCE ROM bank 6 for Tx (0x6)
(uint32_t)0x006E88E3,
// override_synth_prop_863_930_div5.xml
// Synth: Use 48 MHz crystal as synth clock, enable extra PLL filtering
(uint32_t)0x02400403,
// Synth: Set minimum RTRIM to 6
(uint32_t)0x00068793,
// Synth: Configure extra PLL filtering
(uint32_t)0x001C8473,
// Synth: Configure extra PLL filtering
(uint32_t)0x00088433,
// Synth: Set Fref to 4 MHz
(uint32_t)0x000684A3,
// Synth: Configure faster calibration
HW32_ARRAY_OVERRIDE(0x4004,1),
// Synth: Configure faster calibration
(uint32_t)0x180C0618,
// Synth: Configure faster calibration
(uint32_t)0xC00401A1,
// Synth: Configure faster calibration
(uint32_t)0x00010101,
// Synth: Configure faster calibration
(uint32_t)0xC0040141,
// Synth: Configure faster calibration
(uint32_t)0x00214AD3,
// Synth: Decrease synth programming time-out by 90 us from default (0x0298 RAT ticks = 166 us)
(uint32_t)0x02980243,
// Synth: Set loop bandwidth after lock to 20 kHz
(uint32_t)0x0A480583,
// Synth: Set loop bandwidth after lock to 20 kHz
(uint32_t)0x7AB80603,
// Synth: Set loop bandwidth after lock to 20 kHz
(uint32_t)0x00000623,
// override_phy_simplelink_long_range_dsss4.xml
// PHY: Configure DSSS SF=4 for payload data
HW_REG_OVERRIDE(0x5068,0x030C),
// PHY: Set SimpleLink Long Range bit-inverted sync word pattern (uncoded, before spreading to fixed-size 64-bit pattern): 0x146F
HW_REG_OVERRIDE(0x5128,0x146F),
// PHY: Set SimpleLink Long Range sync word pattern (uncoded, before spreading to fixed-size 64-bit pattern): 0xEB90
HW_REG_OVERRIDE(0x512C,0xEB90),
// PHY: Reduce demodulator correlator threshold for improved Rx sensitivity
HW_REG_OVERRIDE(0x5124,0x362E),
// PHY: Reduce demodulator correlator threshold for improved Rx sensitivity
HW_REG_OVERRIDE(0x5118,0x004C),
// PHY: Configure limit on frequency offset compensation tracker
HW_REG_OVERRIDE(0x5140,0x3E05),
// override_phy_rx_frontend_simplelink_long_range.xml
// Rx: Set RSSI offset to adjust reported RSSI by -2 dB (default: 0)
(uint32_t)0x000288A3,
// override_phy_rx_aaf_bw_0xd.xml
// Rx: Set anti-aliasing filter bandwidth to 0xD (in ADI0, set IFAMPCTL3[7:4]=0xD)
ADI_HALFREG_OVERRIDE(0,61,0xF,0xD),
// TX power override
// DC/DC regulator: In Tx with 14 dBm PA setting, use DCDCCTL5[3:0]=0xF (DITHER_EN=1 and IPEAK=7). In Rx, use DCDCCTL5[3:0]=0xC (DITHER_EN=1 and IPEAK=4).
(uint32_t)0xFFFC08C3,
// Tx: Set PA trim to max to maximize its output power (in ADI0, set PACTL0=0xF8)
ADI_REG_OVERRIDE(0,12,0xF8),
(uint32_t)0xFFFFFFFF,
};
// CMD_PROP_RADIO_DIV_SETUP
// Proprietary Mode Radio Setup Command for All Frequency Bands
rfc_CMD_PROP_RADIO_DIV_SETUP_t RF_cmdPropRadioDivSetup =
{
.commandNo = 0x3807,
.status = 0x0000,
.pNextOp = 0, // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
.startTime = 0x00000000,
.startTrigger.triggerType = 0x0,
.startTrigger.bEnaCmd = 0x0,
.startTrigger.triggerNo = 0x0,
.startTrigger.pastTrig = 0x0,
.condition.rule = 0x1,
.condition.nSkip = 0x0,
.modulation.modType = 0x1,
.modulation.deviation = 0x14,
.modulation.deviationStepSz = 0x0,
.symbolRate.preScale = 0xF,
.symbolRate.rateWord = 0x3333,
.symbolRate.decimMode = 0x0,
.rxBw = 0x4C,
.preamConf.nPreamBytes = 0x2,
.preamConf.preamMode = 0x0,
.formatConf.nSwBits = 0x20,
.formatConf.bBitReversal = 0x0,
.formatConf.bMsbFirst = 0x0,
.formatConf.fecMode = 0x8,
.formatConf.whitenMode = 0x0,
.config.frontEndMode = 0x0,
.config.biasMode = 0x1,
.config.analogCfgMode = 0x0,
.config.bNoFsPowerUp = 0x0,
.txPower = 0x9F3F,
.pRegOverride = pOverrides,
.centerFreq = 0x0393,
.intFreq = 0x8000,
.loDivider = 0x05,
};
// CMD_FS
// Frequency Synthesizer Programming Command
rfc_CMD_FS_t RF_cmdFs =
{
.commandNo = 0x0803,
.status = 0x0000,
.pNextOp = 0, // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
.startTime = 0x00000000,
.startTrigger.triggerType = 0x0,
.startTrigger.bEnaCmd = 0x0,
.startTrigger.triggerNo = 0x0,
.startTrigger.pastTrig = 0x0,
.condition.rule = 0x1,
.condition.nSkip = 0x0,
.frequency = 0x0393,
.fractFreq = 0x0000,
.synthConf.bTxMode = 0x0,
.synthConf.refFreq = 0x0,
.__dummy0 = 0x00,
.__dummy1 = 0x00,
.__dummy2 = 0x00,
.__dummy3 = 0x0000,
};
// CMD_PROP_TX
// Proprietary Mode Transmit Command
rfc_CMD_PROP_TX_t RF_cmdPropTx =
{
.commandNo = 0x3801,
.status = 0x0000,
.pNextOp = 0, // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
.startTime = 0x00000000,
.startTrigger.triggerType = 0x0,
.startTrigger.bEnaCmd = 0x0,
.startTrigger.triggerNo = 0x0,
.startTrigger.pastTrig = 0x0,
.condition.rule = 0x1,
.condition.nSkip = 0x0,
.pktConf.bFsOff = 0x0,
.pktConf.bUseCrc = 0x1,
.pktConf.bVarLen = 0x1,
.pktLen = 0x14,
.syncWord = 0x00000000,
.pPkt = 0, // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
};
// CMD_PROP_RX
// Proprietary Mode Receive Command
rfc_CMD_PROP_RX_t RF_cmdPropRx =
{
.commandNo = 0x3802,
.status = 0x0000,
.pNextOp = 0, // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
.startTime = 0x00000000,
.startTrigger.triggerType = 0x0,
.startTrigger.bEnaCmd = 0x0,
.startTrigger.triggerNo = 0x0,
.startTrigger.pastTrig = 0x0,
.condition.rule = 0x1,
.condition.nSkip = 0x0,
.pktConf.bFsOff = 0x0,
.pktConf.bRepeatOk = 0x0,
.pktConf.bRepeatNok = 0x0,
.pktConf.bUseCrc = 0x1,
.pktConf.bVarLen = 0x1,
.pktConf.bChkAddress = 0x0,
.pktConf.endType = 0x0,
.pktConf.filterOp = 0x0,
.rxConf.bAutoFlushIgnored = 0x0,
.rxConf.bAutoFlushCrcErr = 0x0,
.rxConf.bIncludeHdr = 0x1,
.rxConf.bIncludeCrc = 0x0,
.rxConf.bAppendRssi = 0x0,
.rxConf.bAppendTimestamp = 0x0,
.rxConf.bAppendStatus = 0x1,
.syncWord = 0x00000000,
.maxPktLen = 0x80,
.address0 = 0xAA,
.address1 = 0xBB,
.endTrigger.triggerType = 0x1,
.endTrigger.bEnaCmd = 0x0,
.endTrigger.triggerNo = 0x0,
.endTrigger.pastTrig = 0x0,
.endTime = 0x00000000,
.pQueue = 0, // INSERT APPLICABLE POINTER: (dataQueue_t*)&xxx
.pOutput = 0, // INSERT APPLICABLE POINTER: (uint8_t*)&xxx
};
